Uebler i21 - Replacing Bulbs

- 22 -

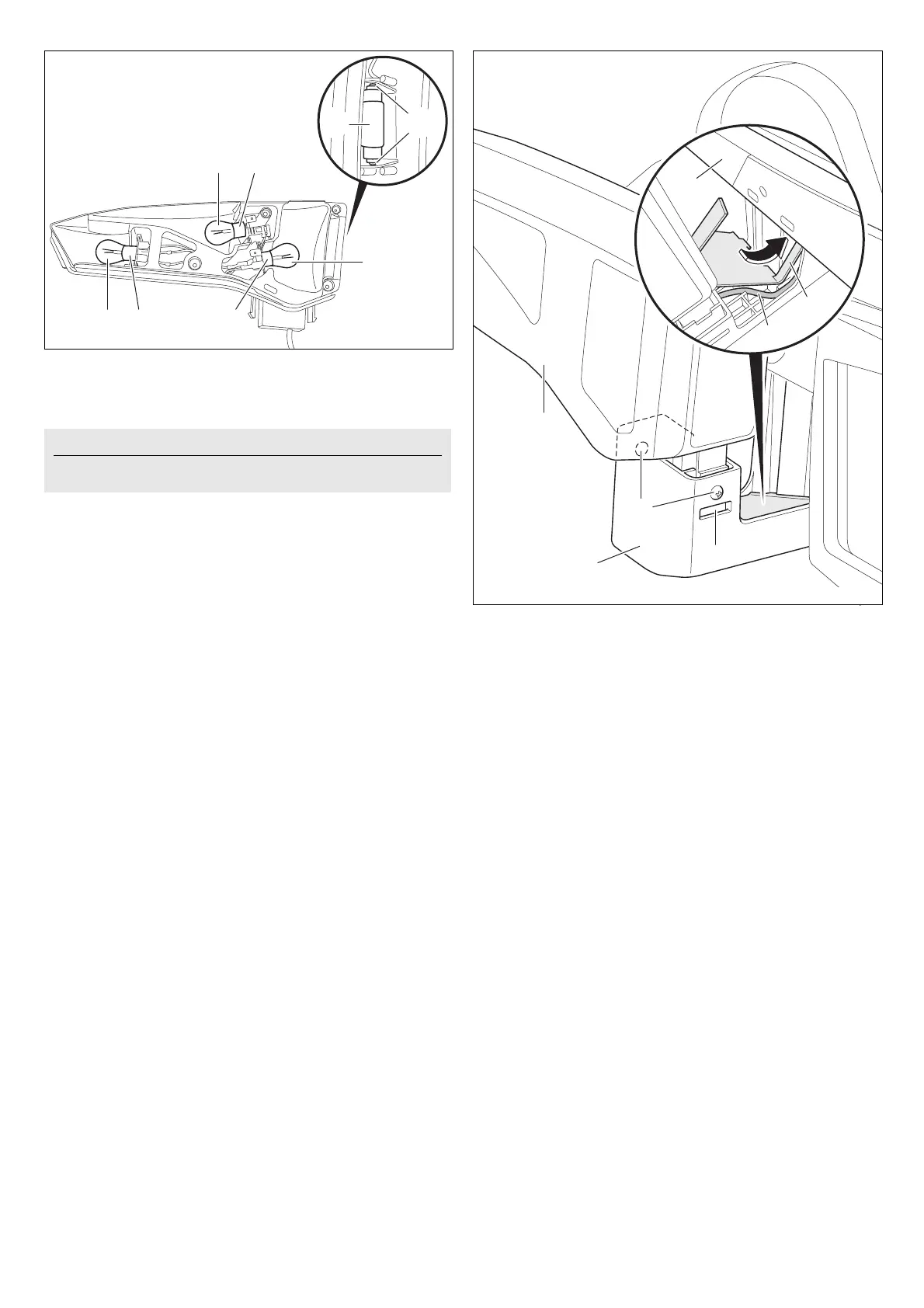

5. Press the defective bulb (14, 16, 17) gently into the socket (40),
turn it 90° anticlockwise and pull it out.
6. Pull the bulb (15) out of the socket (41).
7. Press the new bulb (14, 16, 17) slightly into the socket (40) and
turn it 90° clockwise. Required bulbs, see page 21.
8. Press the new bulb (15) gently into the socket (41). Required
bulb, see page 21.
9. Put the lens (39) back in and fasten it hand tight with the
screws (38).
10. Push the tail light unit (9) into the holder (36) without locking.
11. Place the cable (44) in the cable guide of the holder (36).
12. Thread the long tab of the cover (37) into the wheel rail and
insert the cover (37) completely into the holder (36).
13. Push the tail light unit (9) completely into the holder (36) until
the catches (35) audibly engage, then tighten the screws (45).
Note
Making sure you use a clean cloth, pick up the new bulb and
insert it in the socket (40, 41).
