Ugolini MT 1P User Manual

7

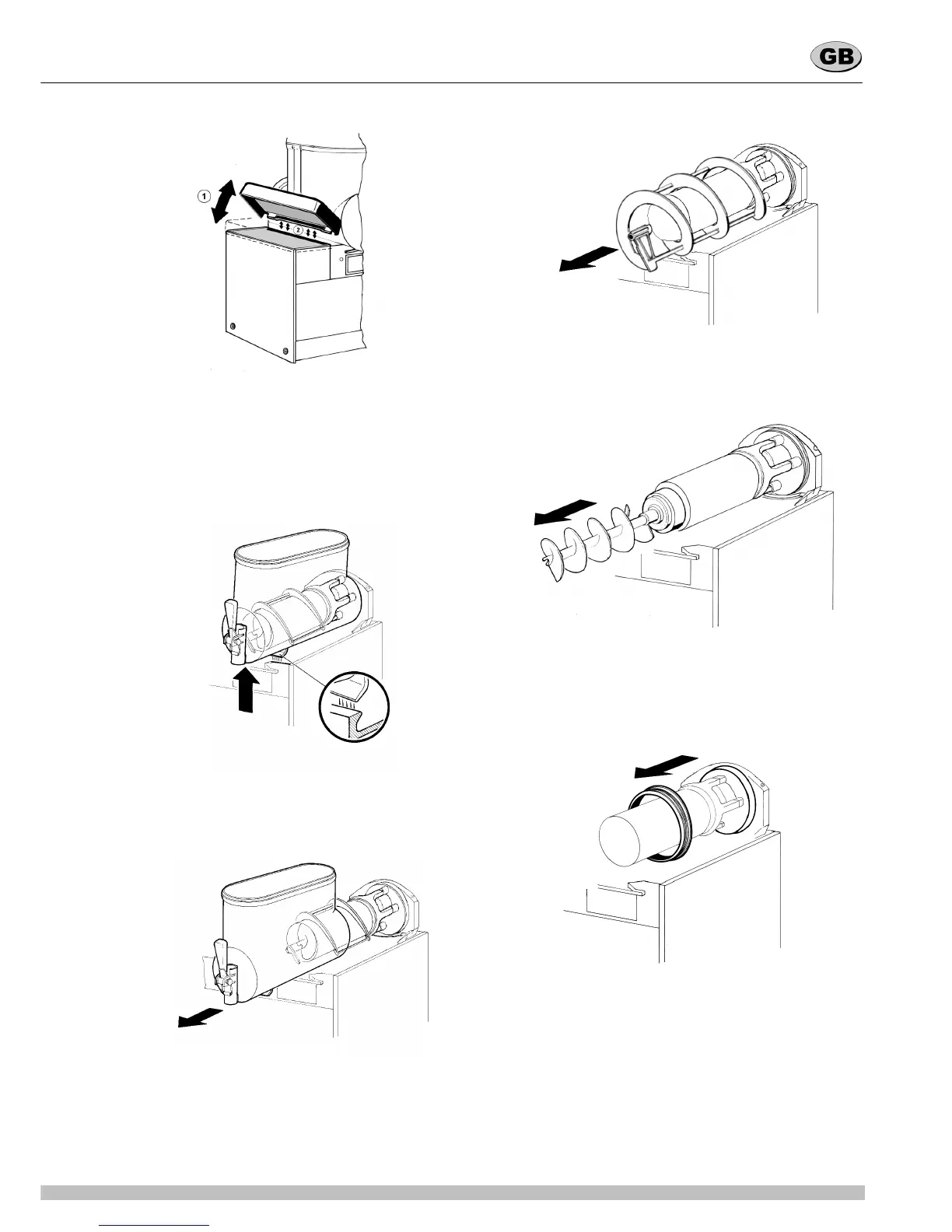

figure 5).
figure 5
3 Remove the bowl by lifting its faucet side up and off the
fastening hooks (see figure 6) and slide it out (see figure 7).
figure 6
figure 7
4 Slide the outer spiral out (see 4) and then the inside auger
(see figure 9).
figure 8
figure 9
5 Remove the bowl gasket from its seat (see figure 10).
figure 10

Ugolini MT 1P Specifications

General

Brand	Ugolini
Model	MT 1P
Category	Beverage Dispenser
Language	English
