Ugolini MT mini 2 User Manual

15

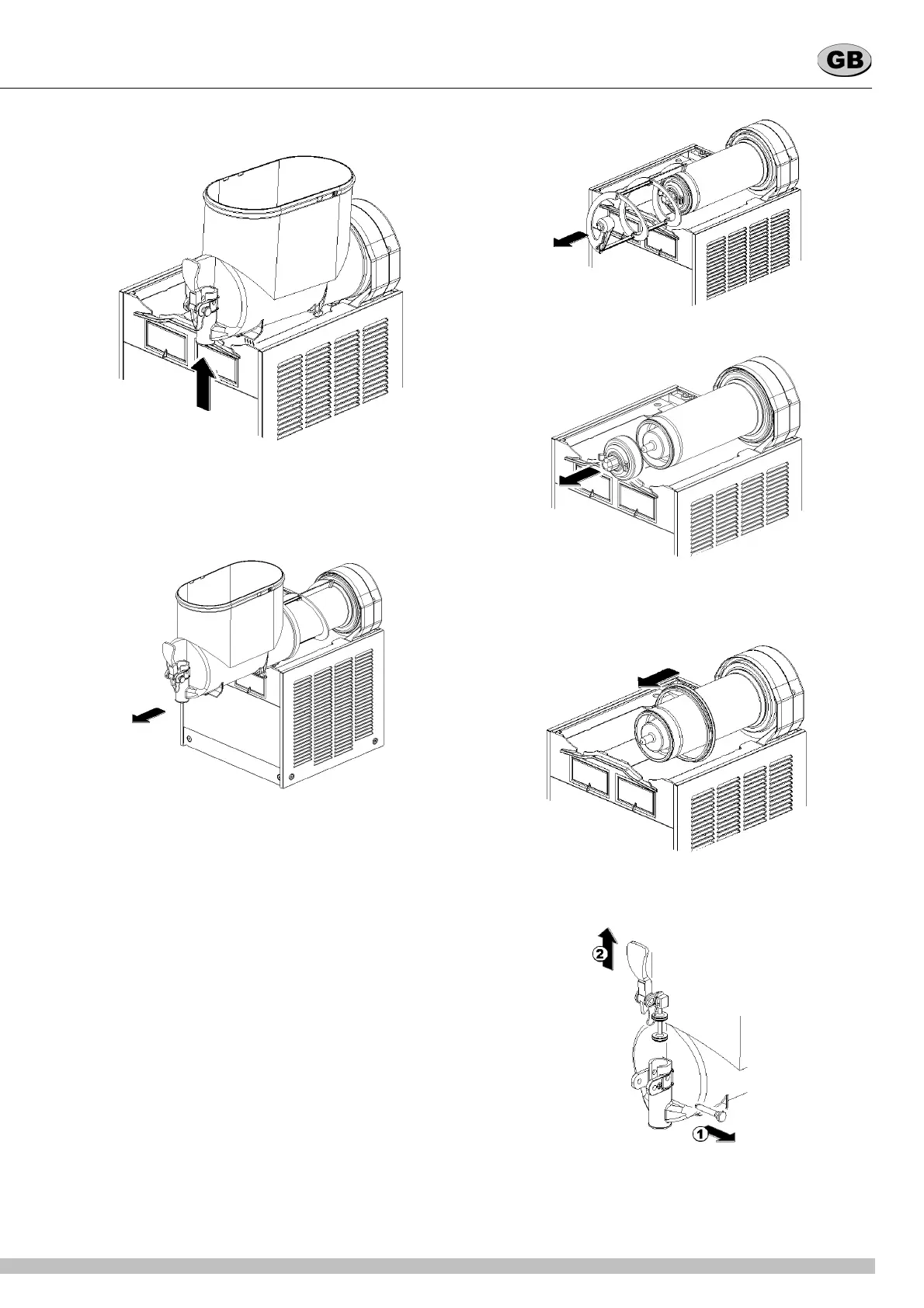

fastening hooks (see figure 5) and slide it out (see figure 6).
figure 5
figure 6
3 Slide the outer spiral out (see figure 7) and then the Outside
magnetic rotor assembly (see figure 8).
figure 7
figure 8
4 Remove the bowl gasket from its seat (see figure 9).
figure 9
5 Dismantle the faucet assembly (see figure 10).
figure 10
6 Slide the drip tray out and empty it.

Ugolini MT mini 2 Specifications

General

Brand	Ugolini
Model	MT mini 2
Category	Beverage Dispenser
Language	English
