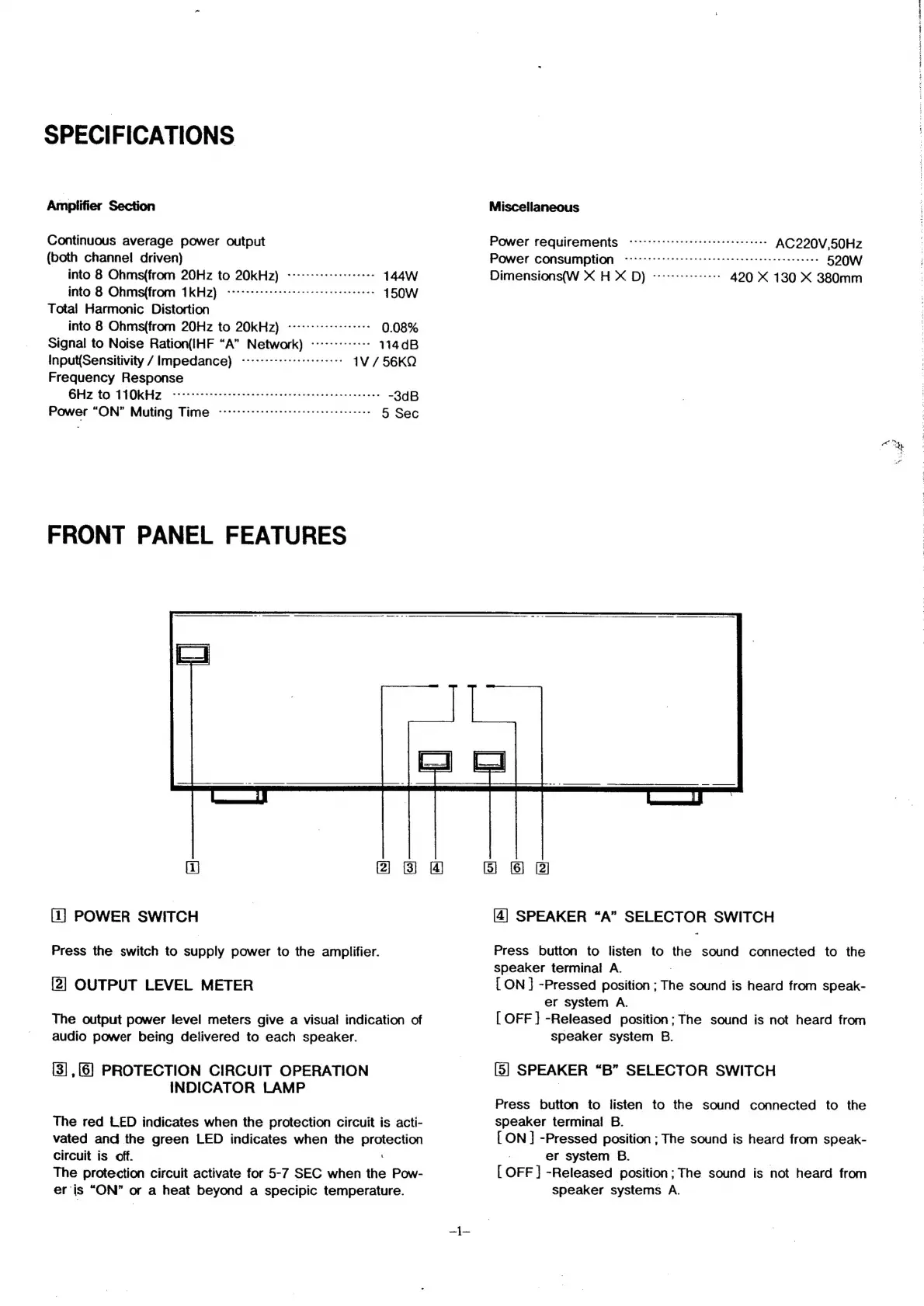

SPECIFICATIONS
Amplifier Section
Continuous average power output
(both channel! driven)
into 8 Ohms(from 20Hz to 20KHz) -------7:-+000+-- 144W
into 8 Ohms(from 1KHZ) ccre ester e etre reer eerste 150W
Total Harmonic Distortion
into 8 Ohms(from 20Hz to 20KHz) ---+:+:--7+---0 0.08%
Signal to Noise Ration(IHF “A” Network) ------+------ 114dB
Input(Sensitivity / Impedance) 1V / 56KQ
Frequency Response
6Hz to 110kHz Serna hatstuw@ncleseteluete pi deceenkeet oe deloe -3dB
Power “ON” Muting Time a: 6 ica! Se Siew lw 0, 0) © 0S blew. Sinieiela-eie-e Se s8
Seer een eee eee ee ew ewe ee
5 Sec
FRONT PANEL FEATURES
[1] POWER SWITCH
Press the switch to supply power to the amplifier.
[2] OUTPUT LEVEL METER
The output power level meters give a visual indication of
audio power being delivered to each speaker.
[3] ,{6] PROTECTION CIRCUIT OPERATION
INDICATOR LAMP
The red LED indicates when the protection circuit is acti-
vated and the green LED indicates when the protection
Circuit is off.
The protection circuit activate for 5-7 SEC when the Pow-
er is “ON” or a heat beyond a specipic temperature.
i oe
Miscellaneous
Power requirements
VOCE CS 6 Ds ee pew ee ae wenn ens ease AC220V ,50Hz
Power consumption Poem emer erate mama m areas erent cent uanwcecece 520W
Dimensions(W X H XD) vor ee 420 X 130 X 380mm
[4] SPEAKER “A” SELECTOR SWITCH
~~
Press button to listen to the sound connected to the
speaker terminal A. |
[ ON } -Pressed position ; The sound is heard from speak-
er system A.
[ OFF ] -Released position; The sound is not heard from
speaker system B.
SPEAKER “B” SELECTOR SWITCH
Press button to listen to the sound connected to the
speaker termina! B.
[ON ] -Pressed position ; The sound is heard from speak-
er system B.
[ OFF ] -Released position; The sound is not heard from
speaker systems A.
