40＂
4.
Secure the cylinder by tightening clockwise the retention point found on the tank seat (B) (see Figure 4), so
that the cylinder cannot move from side to side or fall down.
NOTE: fire pit and gas tank must have the minimum distance of 40 inches.
WARNING: make sure to properly locate the gas hose by keeping it out of pathways where people may tip
over it or in an area where the hose may be subject to accidental damage.

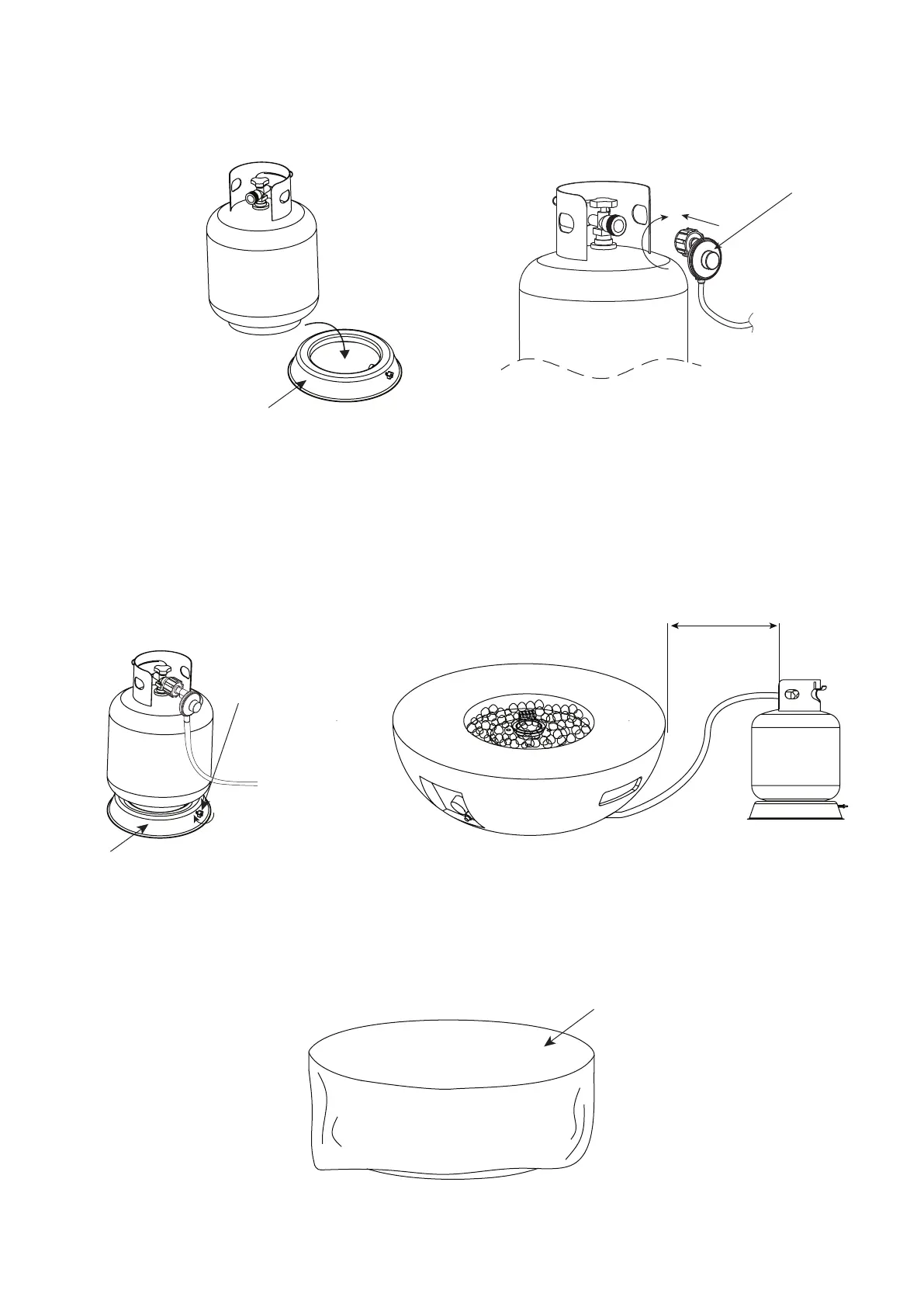

Figure 3
Figure 4
3.
Put the gas tank in the tank seat (B), connect the regulator, screw the black handle clockwise to tighten, turn
the black handle counterclockwise to remove. The hose must not turn upside. The knob on the control panel is
turned all the way to the “OFF” position when the fireplace is NOT in use (see Figure 3).
black handle
05
Figure 5
5. Cover the fire pit with the outdoor Weather cover (C) when not in use to protect it from the elements or when
fire pit is cool COMPLETELY after the use (See Figure 5).
