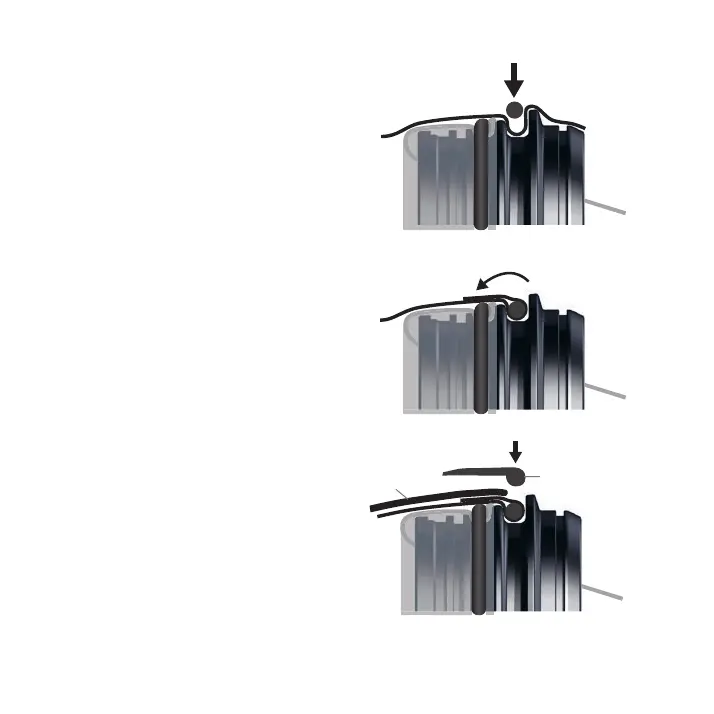

3. Pull the drysuit latex seal over the silicone seal
and onto the suit ring. Check the seal is centered.
Mount the o-ring into the deep groove.
4. Fold back the remaining part
of the latex seal as shown in the image.
5. Pull the drysuit neoprene cuff to cover the seals,
leaving a gap of approximately 4mm and mount the
cover ring as shown.
Watch the instruction video on www.waterproof.eu
Neoprene cuff
Cover ring
