Setting the machine up
Installation of containers
PLEASE NOTE: It is advised that an air, dirt and water trap filter is fitted (786
as shown on the front page). This will protect the valves and cylinder from dirt
and water contamination.
Air Supply Pressure: 40 to 90 PSI. 2.75-6.9 bar, 3-kg / cm
2
.
Thread size: 1/4” BSP
Position machine in a well ventilated area. The extraction outlet will accept 3” (75mm) hose and
should be connected to an existing system or taken to the external part of a building and vented to
atmosphere. Hose and a range of adaptors are available direct from Unic International.
Connect the machine to the air supply. All air connections are located on the right hand side of the
machine when viewed from the front.
Connect earth wire on rear of machine to suitable earthing point.
1
Solvent Tank
The machine will take 20, 25 or 30 litre solvent containers. When installing 25 & 30
litre containers we advise that you raise the adjustable corner legs.
Take 1 x 25litre drum of clean solvent, remove 5 litres and fill an empty 5 litre
container.

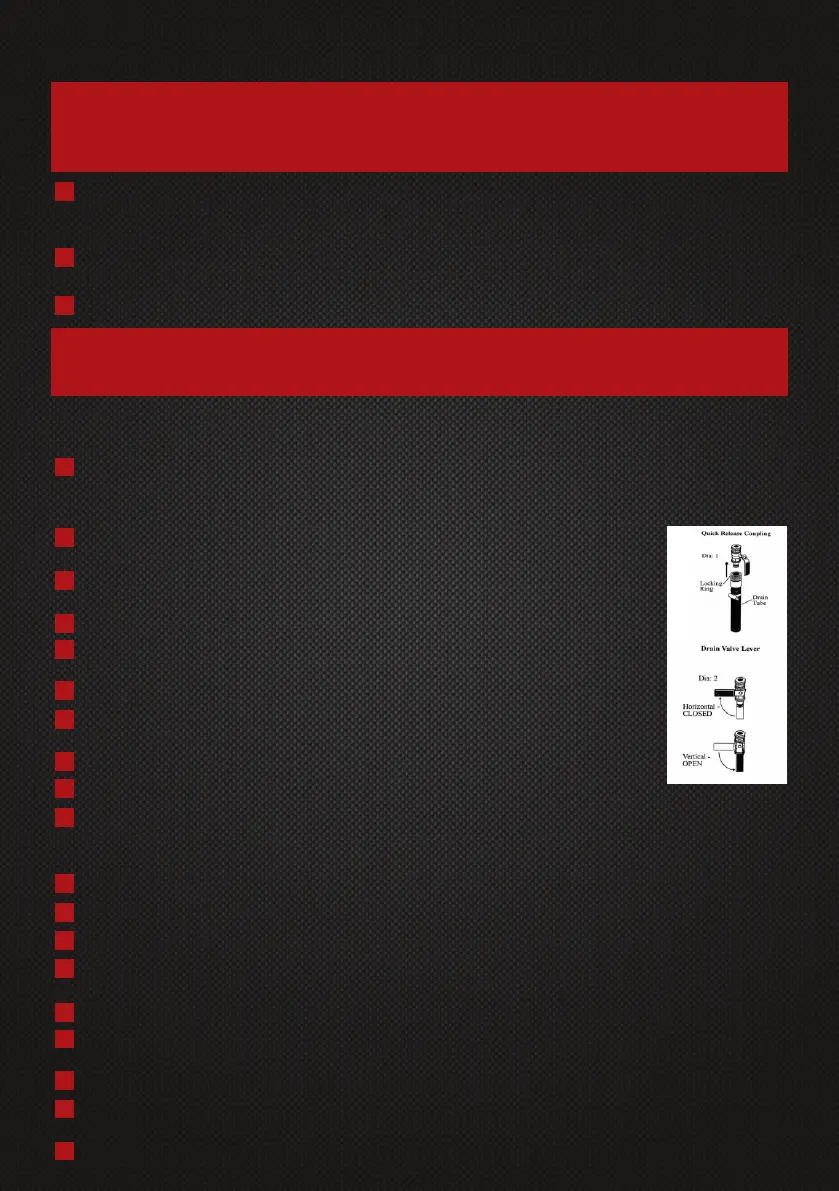

Disconnect quick release coupling by lifting the locking ring and bring outside of
machine (See Diagram 1)
Insert hose with suction filter into drum of solvent and enter drain tube.
Push solvent container/s under machine aligning filler neck with male part of quick
release coupling.
Reconnect quick release coupling.
Place the full 5 litre container under the centre of the machine next to the 25 litre
drum of solvent.
Insert black 6mm nylon tube with wire clip in to the full 5 litre container.
Turn drain valve lever to the vertical position (see diagram 2).
Underneath the machine at the rear are the earthing wire(s), the crocodile clip(s)
must be attached to any metal solvent container(s) if used (these are not supplied
by Unic international).
1
Water Tank
Fill large white bucket with water (120mm from top of container).
Fit Cloth Filter to Stainless Steel filter unit.
Place filter on top of water bucket and push under the right hand side of machine
aligning drain hole with filter assembly.
Insert hose with suction filter into the water bucket.
Pour into the water bucket 1 x 100ml bottle of “UNI-CLEAN” and 1 x 5ml bottle of
“UNI-PURE”.
Fill 5 litre plastic container with clean water.
Place the 5 Litre container under the centre of the machine next to the water
bucket located on the right.
Insert black 6mm nylon tube with wire clip in to the full 5 litre container
2
a
b
c
d
e
f
g
h
a
b
c
d
e
f
g
h
i
2
3
