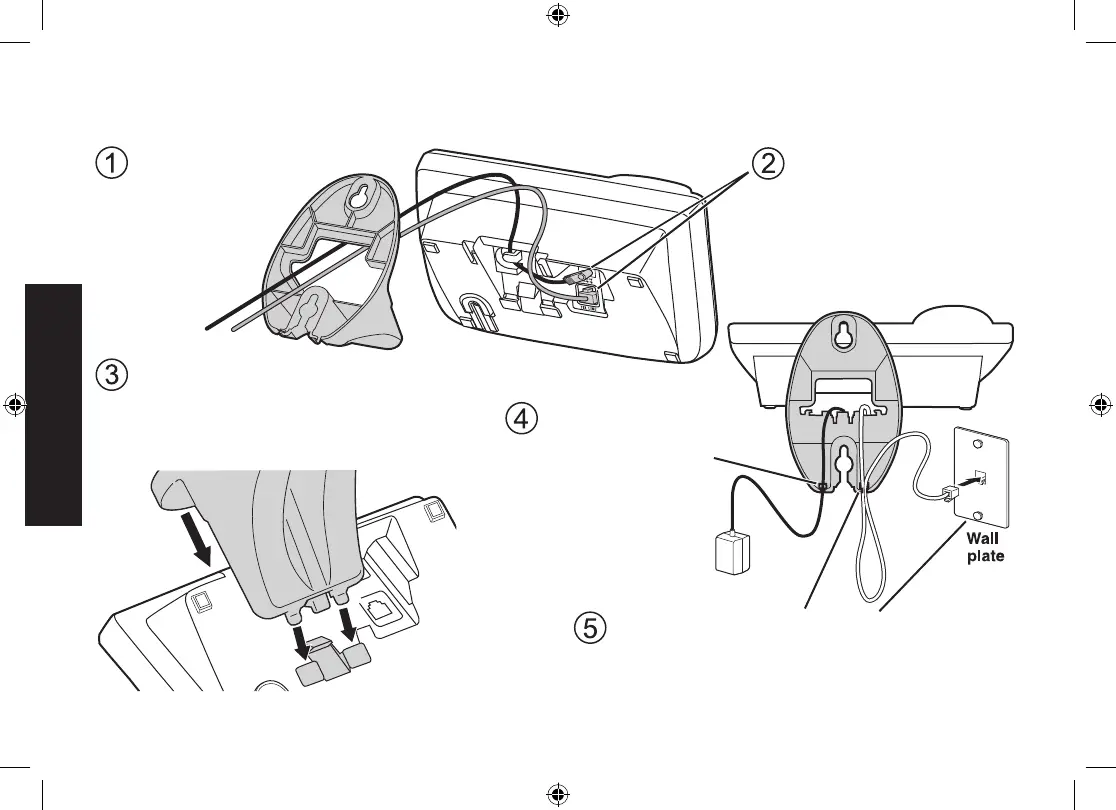

Route the AC adapter
and the telephone
cord through the
hole of the wall
mount bracket.
Line up the four tabs on the wall
mount bracket (two at the top and two
at the bottom) with the four notches
on the bottom of the base. Slide the
bracket into place.
Plug the telephone cord into the wall jack.
Hook both sides of the telephone cord into
the larger notch OR tuck the excess cord
into the open space in the bracket.
Connect the AC adapter
and the telephone cords
as shown on pages 7 and
9. Remember to route the
AC adapter cord through
the channel.
Hook the AC adapter
cord into the smaller
notch at the bottom
of the bracket, and
let the cord hang
below the bracket.
(Bottom of the base)
(To AC outlet)
