4.4 Installing and removing the battery belt clip

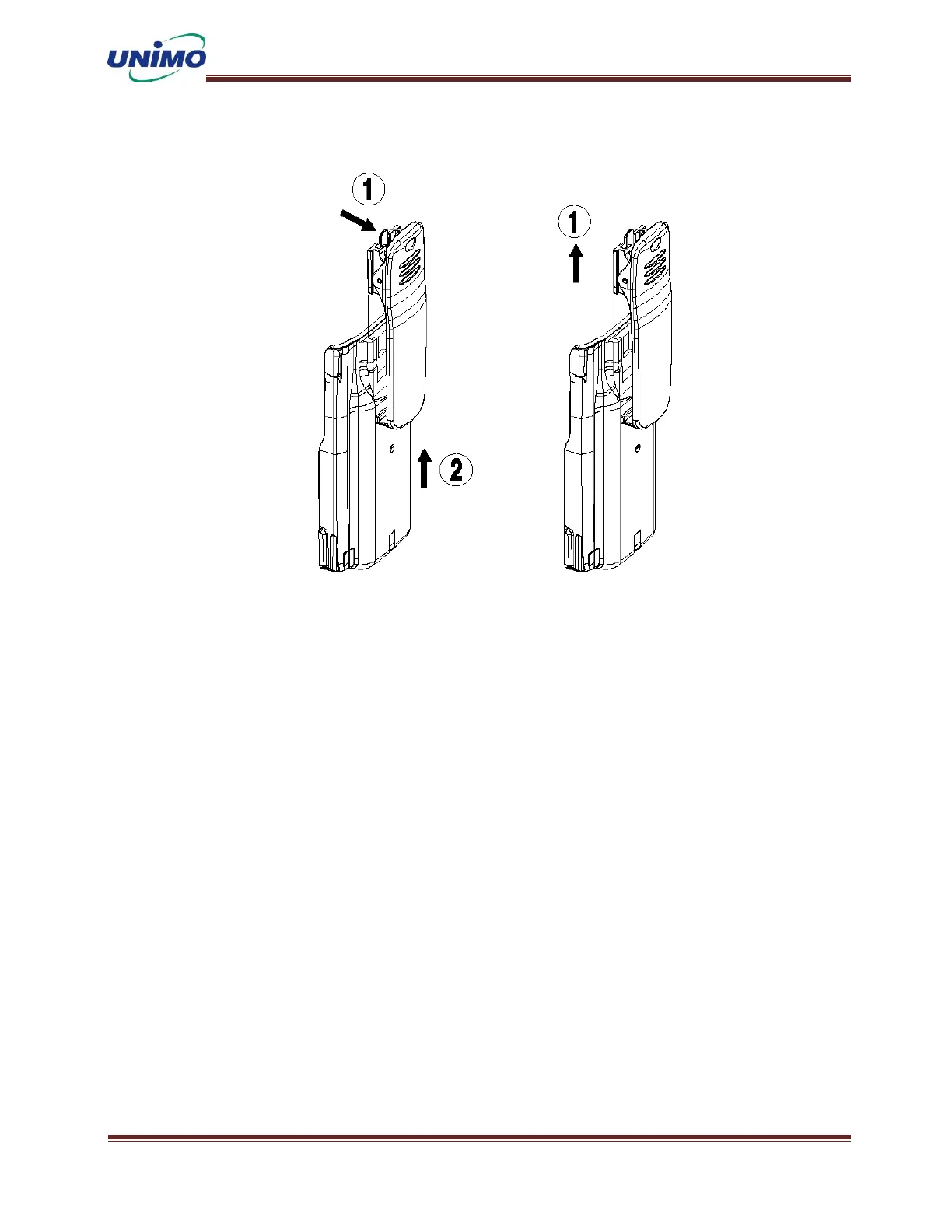

- Belt clip removal - - Belt clip attached -
◼ Remove the belt clip from the battery by lifting the locking device located on the top
of the belt clip and sliding the belt clip upward.
◼ The battery belt clip is installed by aligning the belt clips in the grooves of the
battery and pushing the belt clip down until you hear a ‘click’ sound..
