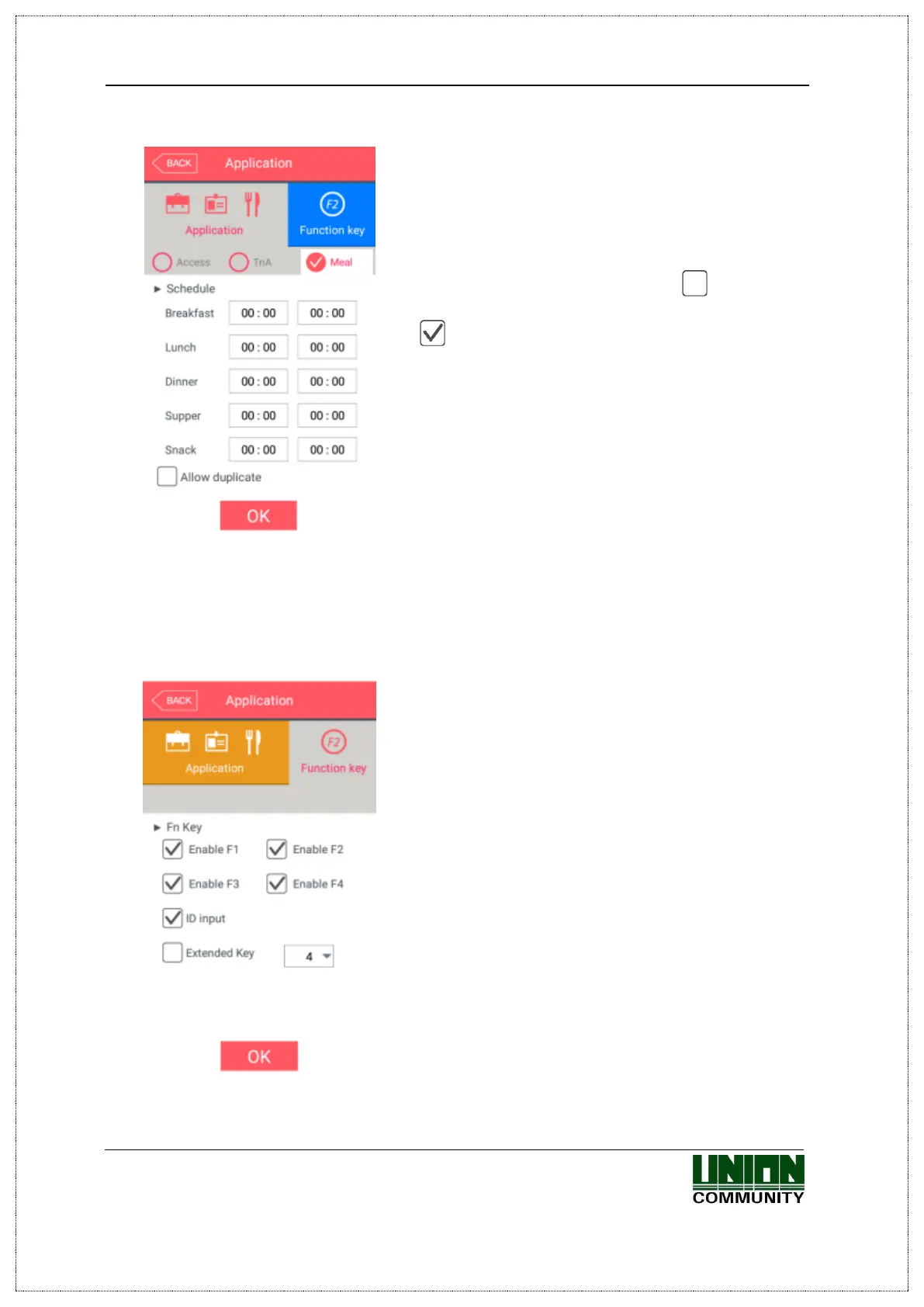

3.5.1.2. Meal setting
It is the screen appearing when selecting the meal
Management.
You can set the time period of each meal type.
And if the setting is not needed, set ‘00:00-00:00’.
▶ Allow duplicate: If it is unchecked ( )each user can
authorize once in the one meal, but if it is checked
( )the multiple authentication is possible regardless
of the previous authentications.
Click the [OK] button to apply the changes, and click
[BACK] button to cancel and return.
3.5.2. Function key
The following window appears if you select the [Application] [Function key] in the
main menu.
▶ Basic setting: Same with the window at the left side.
▶ Fn Key
It means the [F1]~[F4], [Access] button used to
change the authentication mode such as attendance
and leaving, and if you click the Fn key, the
authentication mode is changed to the mode. Because
only the checked buttons are represented on the basic
window, you can use with unchecking other function
keys when using as device only for the attendance or
leaving.
If you check ‘Extended Key’, you can add the
authentication mode except for the existing key.
