10 Digit Decimal
1386022627
hexadecimal 529D06E3: 10 digits decimal
3,5 Digit Decimal
3808861522
hexadecimal E3069D52: 10 digits decimal
6 Digit Hexadecimal
069D52
Locate the foremost 3bytes backwards
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
3.7.3. Input

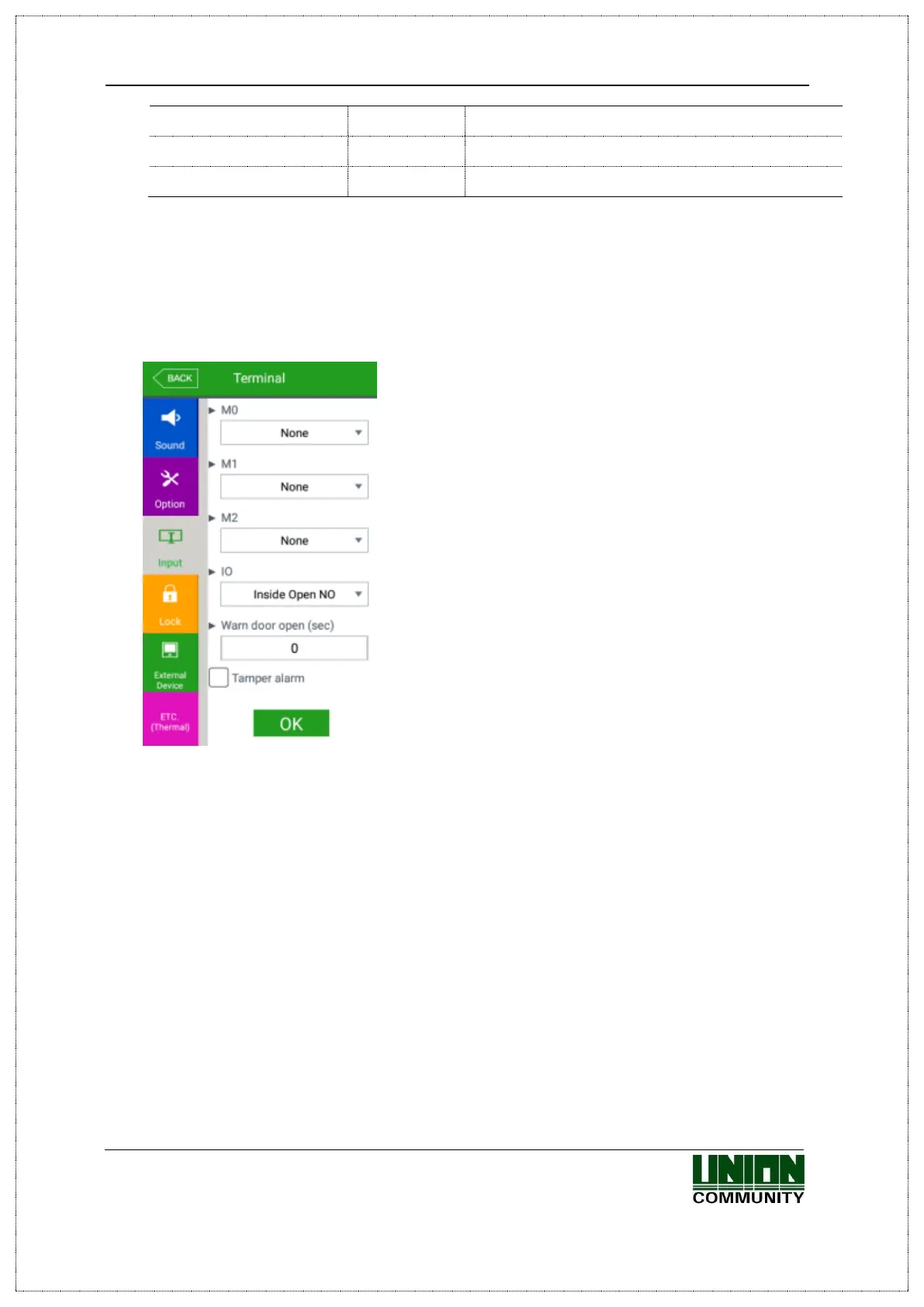

If you select the [Terminal]  [Input] in the main menu, the following window
appears.
▶ Basic setting : Same with the window at the left
side
▶M0: It is set when connecting the external access point to the DM0.
(When using motor lock, set [Door open NO] or [Door open NC].)
-None: When nothing is connected.
-Door open NO or Door open NC: When the door open monitoring pin was connected.
-Fire detection NO or Fire detection NC: When the fire detection sensor is connected.
-Panic detection NO or panic detection NC’: When the panic situation detection sensor
is connected.
-Emergency detection NO or emergency detection NC’: When the emergency
situation detection sensor is connected.
 Set NO/NC according to the state of pin input in detection.
▶M1/M2: Set when connecting the external access point to DM1/DM2.
(When using motor lock, set [Lock NO] or [Lock NC].)
- None: When nothing is connected.
- Lock NO or Lock NC: When the lock monitoring pin was connected.
- Fire detection NO or Fire detection NC: When the fire detection sensor is connected.
- Panic detection NO or panic detection NC’: When the panic situation detection
