3.7.4. Lock

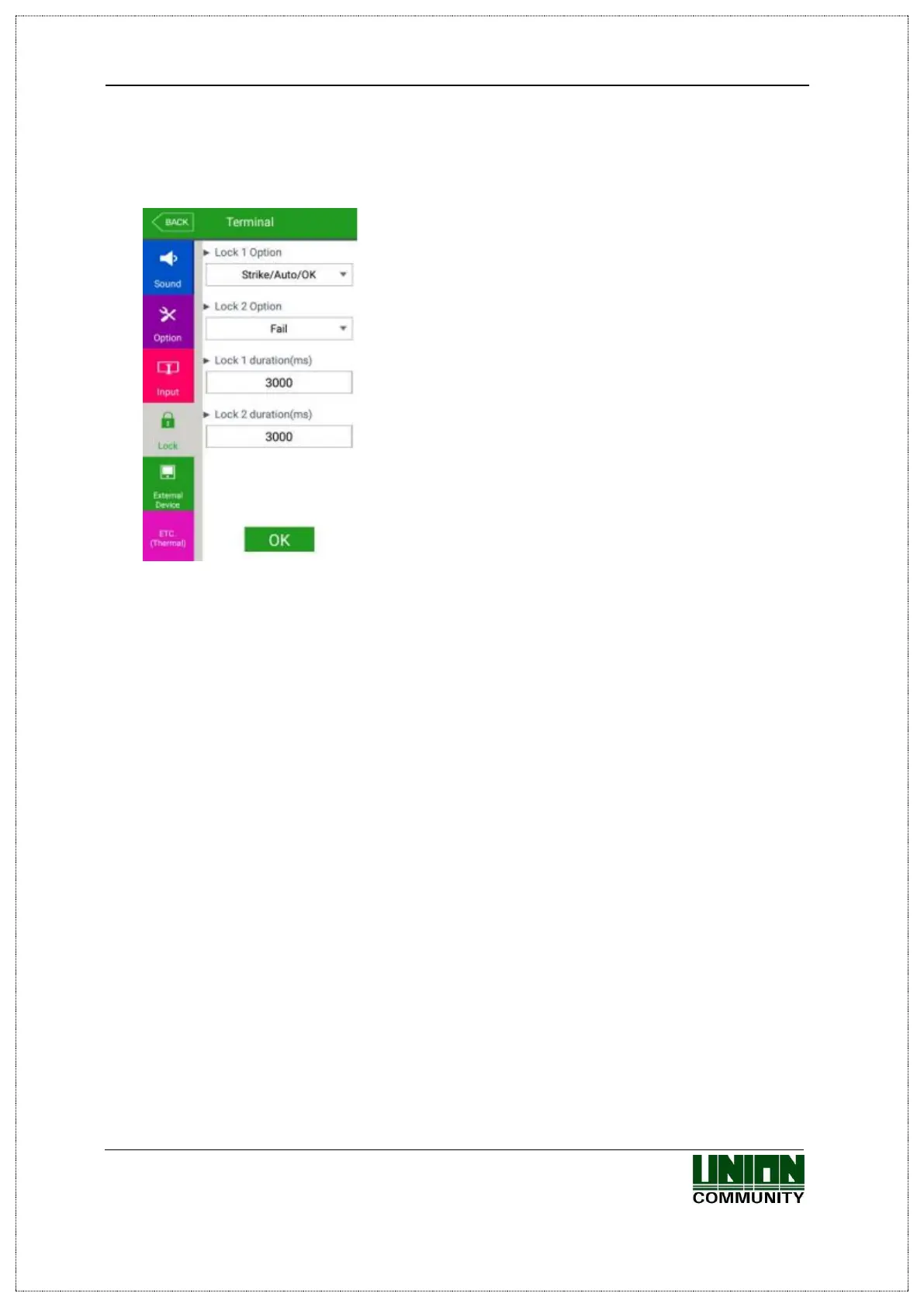

If you select the [Terminal]  [Lock] in the main menu, the following windows
appears.
▶ Basic setting: Same with the window at the left side.A
▶Lock1 Option
- None: When it is not used
- Strike/Auto/OK: When the warning light is connected to indicate the strike type,
auto door, or authentication success/failure on Lock1.
- Motor lock 1: When the motor lock is connected.
- Regular notification: When the siren setting of the terminal option was sent to the
terminal, it sends the operating signal about it.
- Duress alarm: When the fingerprint registered as a duress FP is authenticated
▶Lock2 Option
- None: When it is not used
- Strike/Auto/OK: When the warning light is connected to indicate the strike type,
auto door, or authentication success/failure on Lock2
- Motor lock 2: When the motor lock is connected.
- Regular notification: When the siren setting of the terminal option was sent to the
terminal, it sends the operating signal about it.
- Duress alarm: When the fingerprint registered as a duress FP is authenticated
▶Lock 1 duration (ms)
When Lock 1 is set ‘Strike/Auto/OK’, it determines the signaling time. Because it is set
in ms unit, if you want to set 3 seconds, you should set 3000. The strike type means
the time until the door is locked again when opening the door after authentication.
.
▶Lock 2 duration (ms)
It sets the signaling time when Lock 2 is set ‘Authentication failure notification’.
