3.8.4. Option

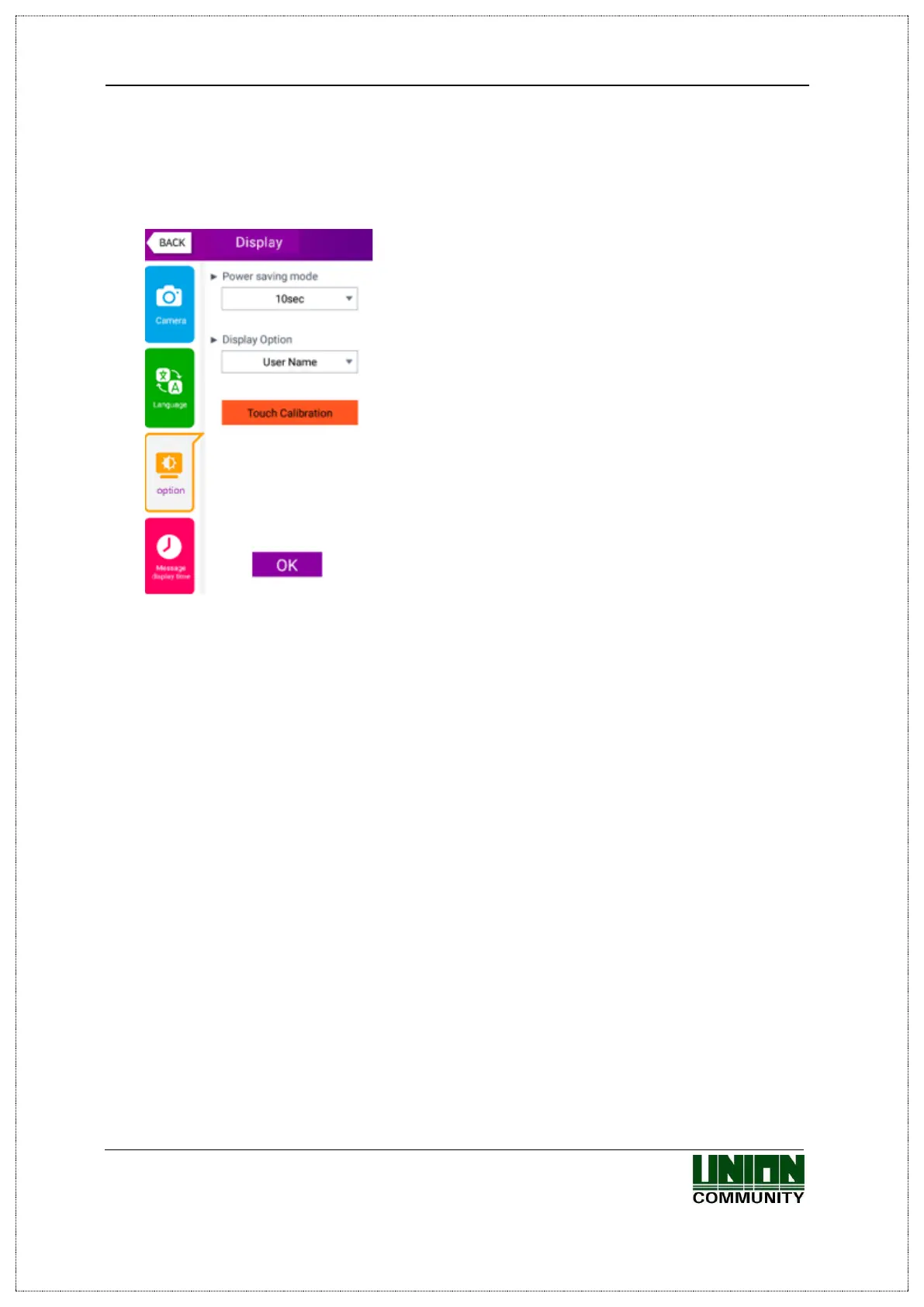

If you select the [Display] [Option] in the main menu, the following window
appears.
▶ Basic setting: Same with the window at the left
side
▶ Power saving mode (5sec ~ 10min)
If there is no input for set duration, the LCD screen
is turned off automatically. But, if you set ‘None’ the
LCD is always turned on.
▶ Display Option
It sets what will be shown at the LCD screen when
the authentication is successful.
- None: The authentication result [Success/Failure]
is only represented.
- User ID
-User Name: Representing user ID if it is not
registered. (In this case, added “ID” in order to
differentiate with name)
- Social No: Representing user ID if it is not
registered. (In this case, added “ID” in order to
differentiate with employee’s number)
▶ Touch Calibration
This feature is to calibrate the coordinates of the
touch screen.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
3.8.5. Message display time
If you select the [Display] [Message display time] in the main menu, the following
window appears.
