thinners) and blow it out with compressed air. Re-install and tighten
burner orifice.
o
Replace burner.
Warning - DO NOT use a pin or wire when cleaning the
burner orifice as damage can occur to the precision
opening. This can cause damage to the refrigerator or
create a fire hazard. It will also create extremely
dangerous levels of carbon monoxide.
o Replace components in reverse order.

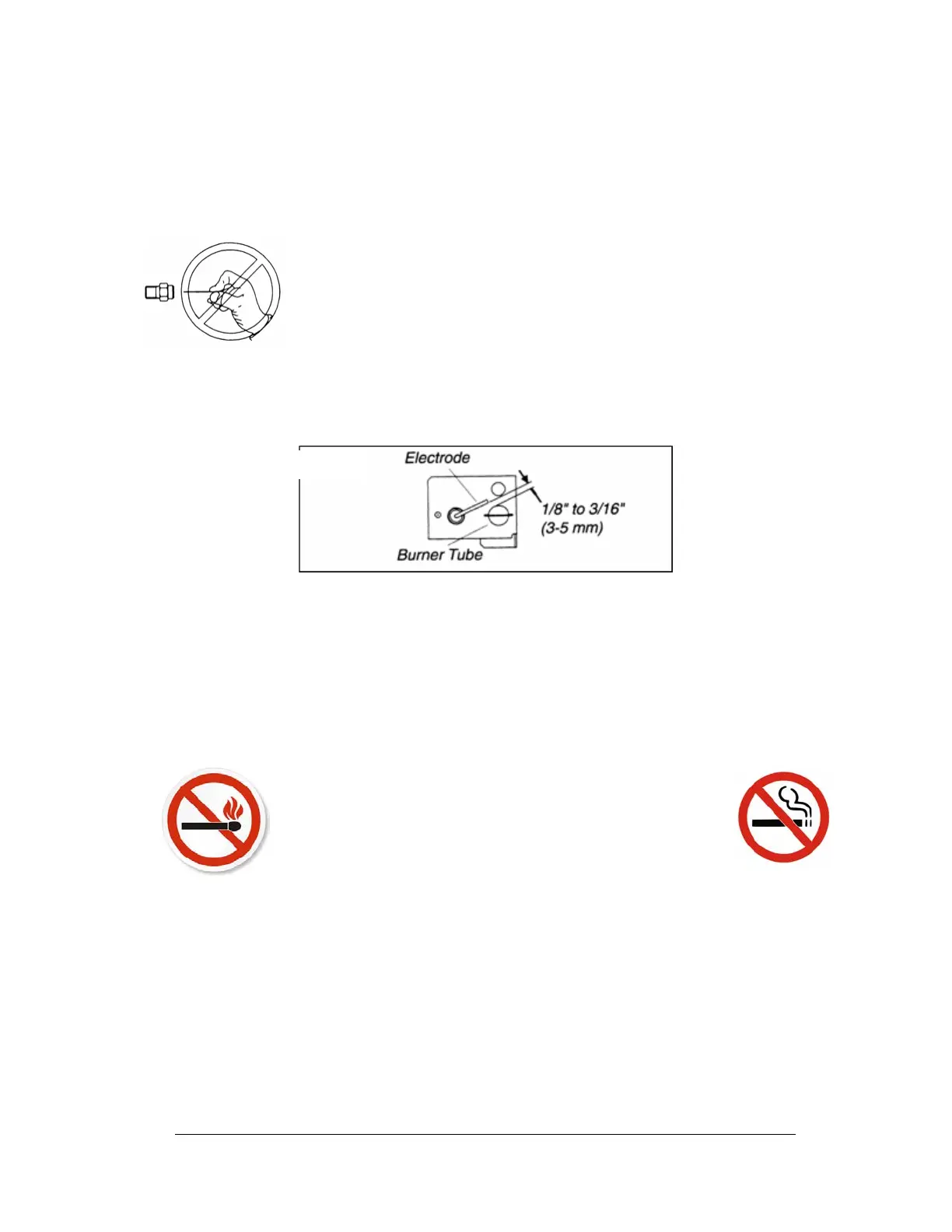

o Be sure to reconnect the wire to the electrode. Check the electrode for
proper location and gap. See Figure #8
o
The inlet & outlet gas fittings on the refrigerator need to be checked for
leaks. Apply a non corrosive bubble solution to the fittings and observe
for leaks. The safety valve will not allow gas pressure to any connections
between it and the burner orifice. These fittings must be checked while
burner is in operation (gas flow will be present between safety valve and
burner head).
WARNING – The safety shut-off (“E” button Fig. #5) must
be manually depressed to allow gas pressure to flow to the
burner orifice. Be sure to apply the leak check solution before
depressing the safety shut–off. DO NOT allow any open
flame, sparks, smoking, etc. in the area of the test. DO NOT
depress safety shut-off for over 30 seconds.
o If leak occurs, correct problem, recheck with leak test solution then light
the burner according to the instructions under GENERAL OPERATING
INSTRUCTIONS – GAS OPERATION, CHAPTER 3.
Fig# 8
