DC POWER CONNECTION continued
IN-LINE FUSE
A 15A in-line fuse is provided with this fridge in order to protect the
wiring. For 12V operation, use a 15A fuse, and for 24V operation
use a 7.5A fuse. A standard automobile fuse is recommended and
the fuse should be wired to the positive (“+”) side of the system
close to the positive battery terminal.
A 15A fuse is provided with this fridge/freezer.
If using 24V as operating voltage, you must provide a 7.5A fuse.
OPERATING VOLTAGE FUSE
12 V 15 A
24 V 7.5 A

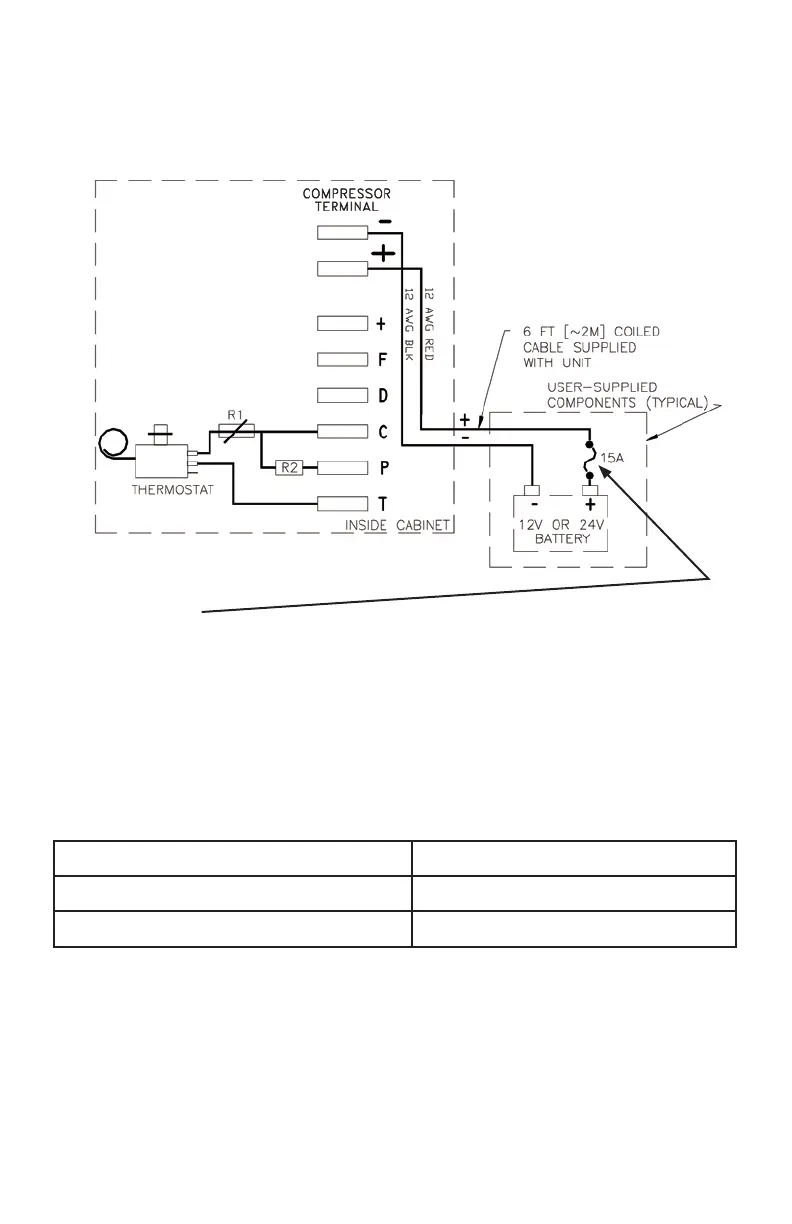

ELECTRICAL DIAGRAM
