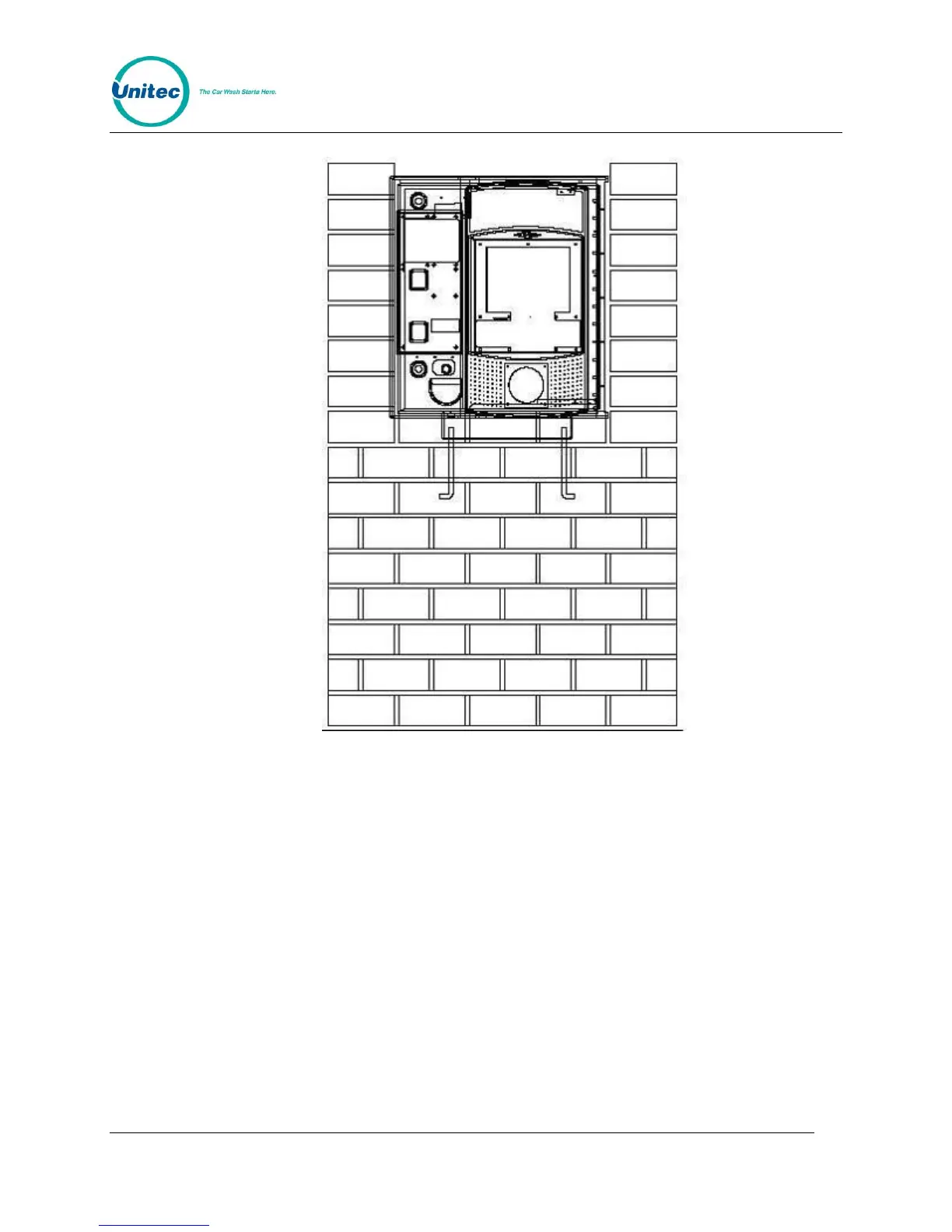

Figure 11. Portal Brick-In with Adaptor Plate
2 . 4 . 3 . 2 U s i n g t h e C u r b H e i g h t F r a m e
Follow the base installation instructions in section 2.3 to set the base frame in the concrete.
The adapter plate attaches to the (3) studs on top of the frame with ½” nuts and washers.
Position the frame so the front of the adapter plate will be recessed 4.5” from the front face of
the brick (as shown in Figure 12).
