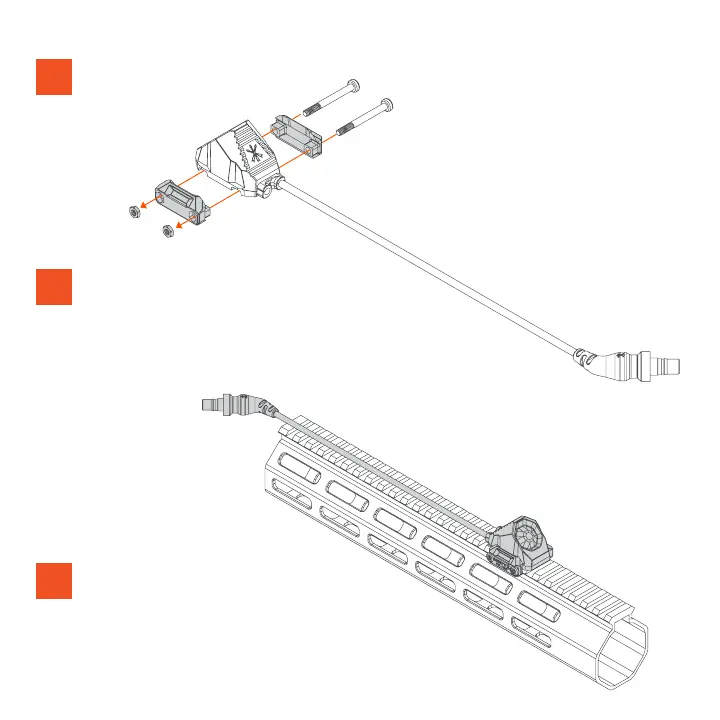

Thread the Cross Bolts in the circular holes in
Rail Clamp A via the pass-through and into the
Hex Nuts in Rail Clamp B. Finger tight both
before applying torque to either. Using the T10
Torx Key, torque to 5 in-lbs (0.57 Nm).
Fully seat the Hex Nuts in the recesses in Rail
Clamp B.
Route cable(s) from AXON™ SL to device(s)
and fully seat plug(s) in socket(s). Avoid sharp
bends and routing over extreme heat areas
and sharp edges.
