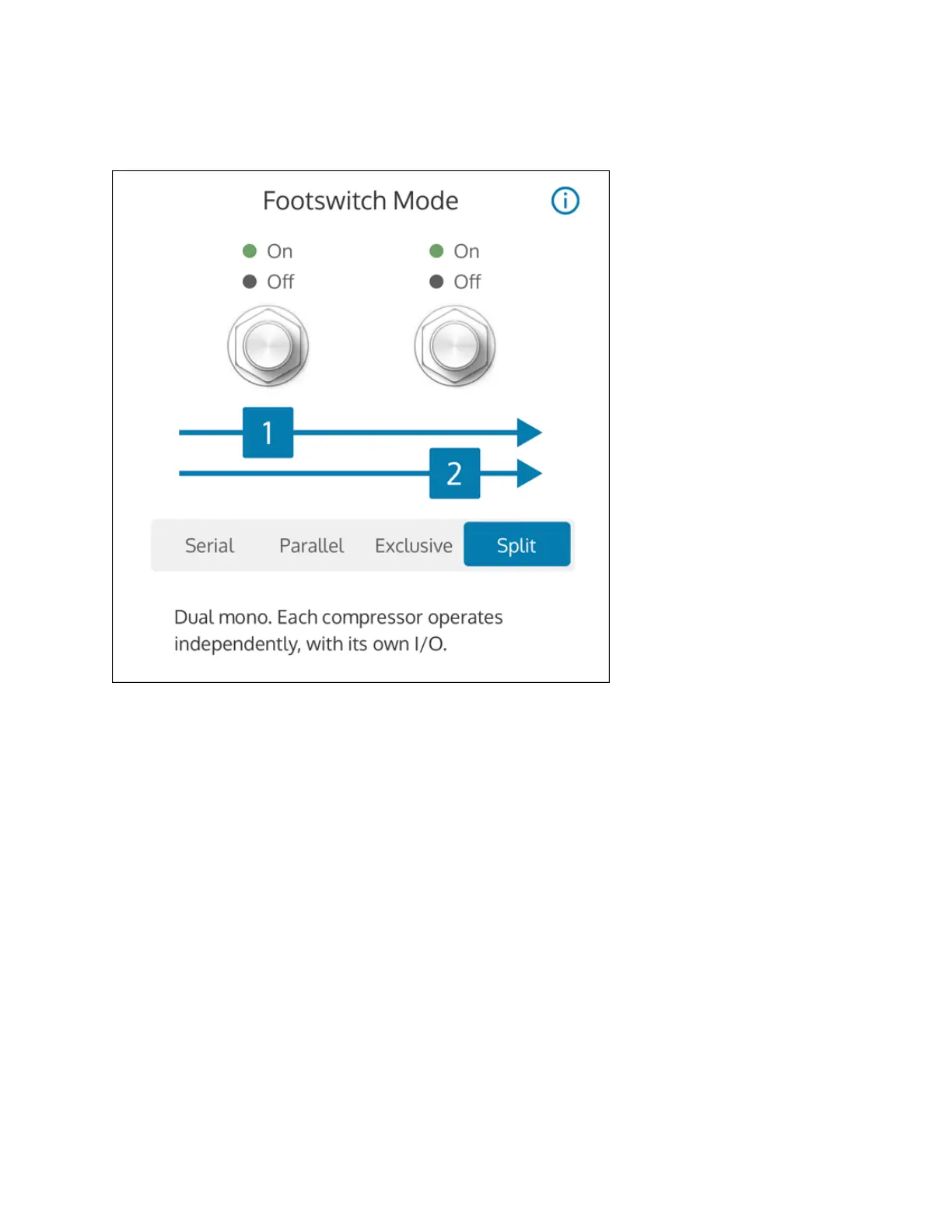

Split
Press the left or right footswitches to toggle Comp 1 and Comp 2 on/off. One
or both compressors can be on at the same time. Input 1 routes to Comp 1,
and out of Output 1. Input 2 routes to Comp 2, and out of Output 2.
TO CHANGE MAX ROUTING MODES
Under the Footswitch Mode diagram, tap the mode button.
Configuring preamp and compressor settings
You can adjust low and high EQ settings for each of the two UA 610 tube
preamps to further tweak your tones, which includes low and high frequency
shelving filters. When the Preamp knob is set to OFF, the EQ is inactive.
The FET 1176 effect also has a configurable compressor sidechain bass filter
control.
