Universal Space Pong - Page 29

PONG Manual
05/16/2019
28

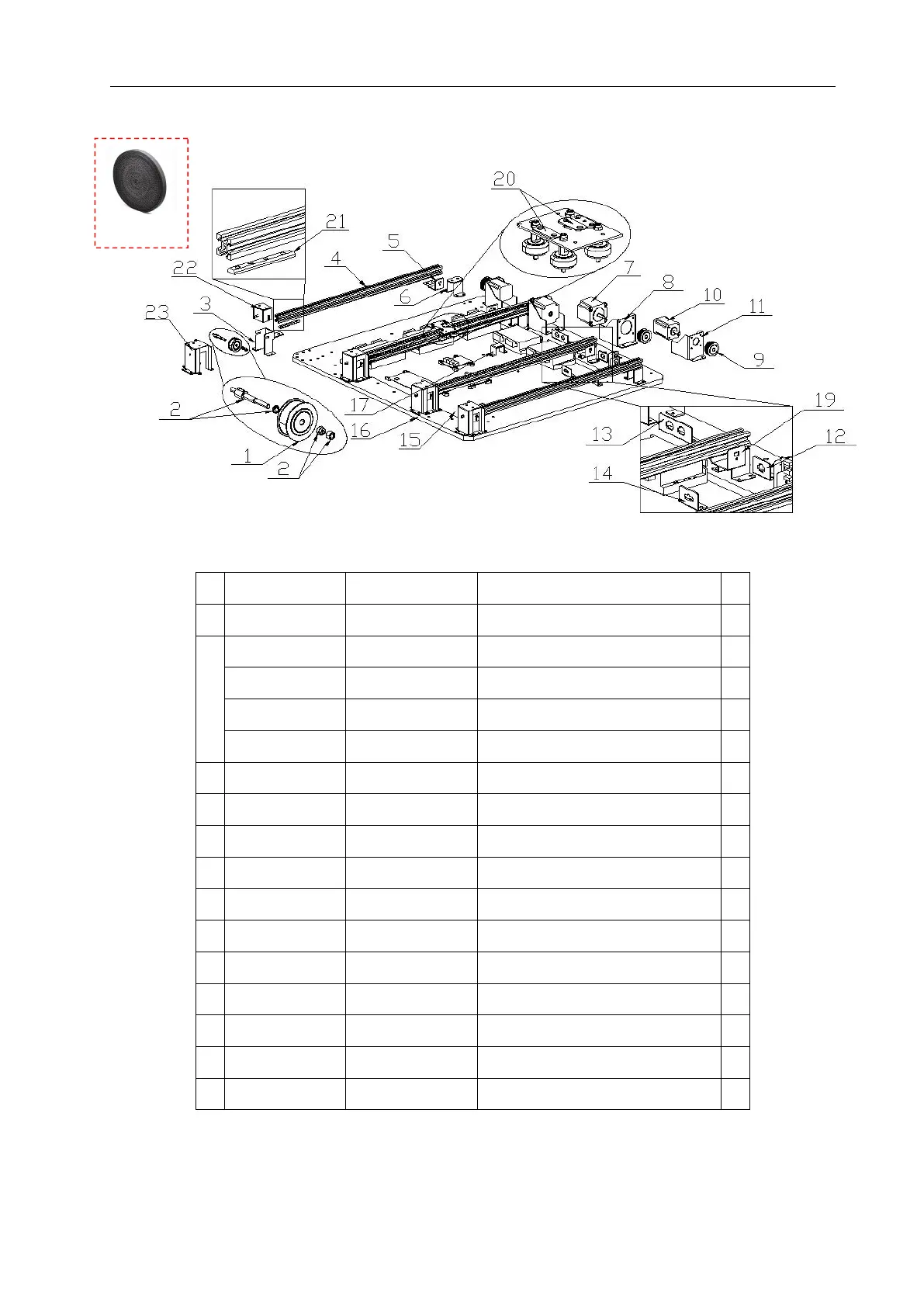

9.3 Movement Mechanism
No.
Part No.
Code
Name
Qty
1
P156-124-000
20211707032A
Idle wheel A
4
2
P156-125-000
20211707047B
Idle wheel axle
4
P156-304-000
20102000022
Non-metallic hexagon lock nut
4
P156-301-000
20113000055
C flat washer
4
P156-126-000
20211707054
Wheel sleeve
4
3
P156-123-000
20211707017B
Idle wheel A bracket
4
4
P156-148-000
20211707035
X axle track
4
5
P156-147-000
20211707023B
Sensor SW bracket
3
6
P156-146-000
20211707022
Track bracket
4
7
P156-447-000
23406000031
Hybrid stepping motor
2
8
P156-134-000
20211707020A
57 motor bracket A
2
9
P156-133-000
20211707033
Driving wheel
4
10
P156-446-000
23406000030
Hybrid stepping motor
2
11
P156-132-000
20211707019
42 motor bracket
2
12
P156-151-000
20211707025
Wiring plate B
2
13
P156-150-000
20211707024
Wiring plate A
1
18
