Universal Space Pong - Page 31

PONG Manual
05/16/2019
30
No.
Part No.
Code
Name
Qty
11
P156-130-000
20611707026A
Support bracket axle
2
12
P156-153-000
20211707027A
Chain mounting plate
1
13
P156-138-000
20211707002B
Y axle bracket
2
14
P156-133-000
20211707033A
Driving wheel
1
15
P156-136-000
20211707034A
Idle wheel B
2
16
P156-137-000
20211707007B
Axle
2
17
P156-135-000
20211707021A
58 motor bracket B
1
18
P156-447-000
23406000031
Hybrid stepping motor
1
19
P156-159-000
20211707044A
Fix plate B
1
20
P156-143-000
20211707042
Magnet back plate
2
21
P156-131-000
20211707055
Idle wheel axle B
2
22
P156-129-000
20211707018B
Idle wheel B bracket
2
23
P156-156-000
20211707051A
Connecting bracket
2
24
P156-163-000
20211707053
Long fix bar
1

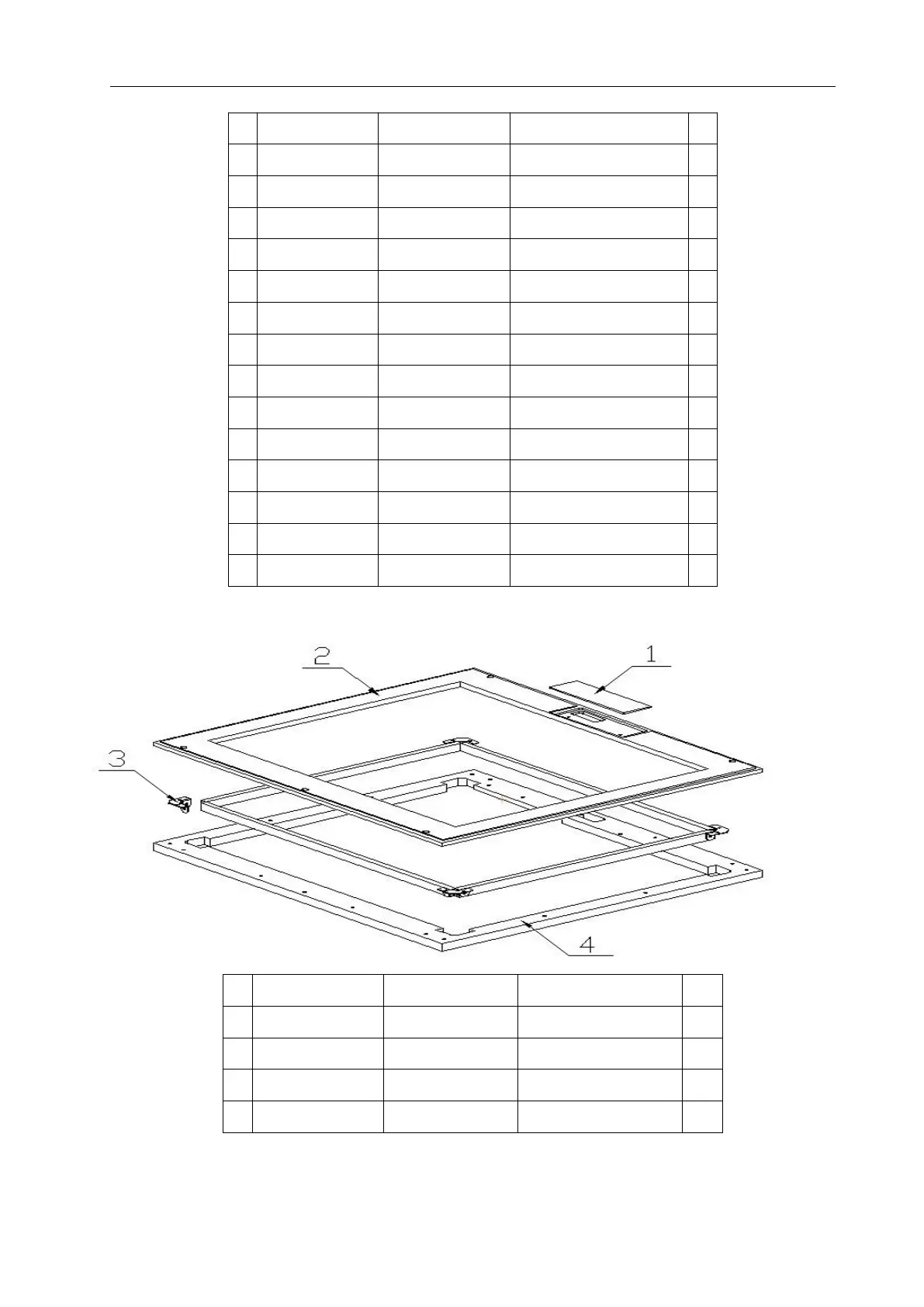

9.4 Frame Assembly
No.
Part No.
Code
Name
Qty
1
P156-168-000
20611707033
Light barrier
1
2
P156-512-000
20311707004C
Frame top plate
1
3
P156-166-000
20211707028
Connecting plate
4
4
P156-513-000
20311707005C
Frame bottom plate
1
