8
Please contact Universal
®
Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
Mailing address: Universal
®
Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
9
Please contact Universal
®
Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
Mailing address: Universal
®
Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com
FIGURE 2
Step 14.
Step 15.
Step 16.
Step 17.
Step 18.
Step 19.
Step 20.
Push 50mm x 75mm END PLUGS (27) into ends of LEG PRESS (5).

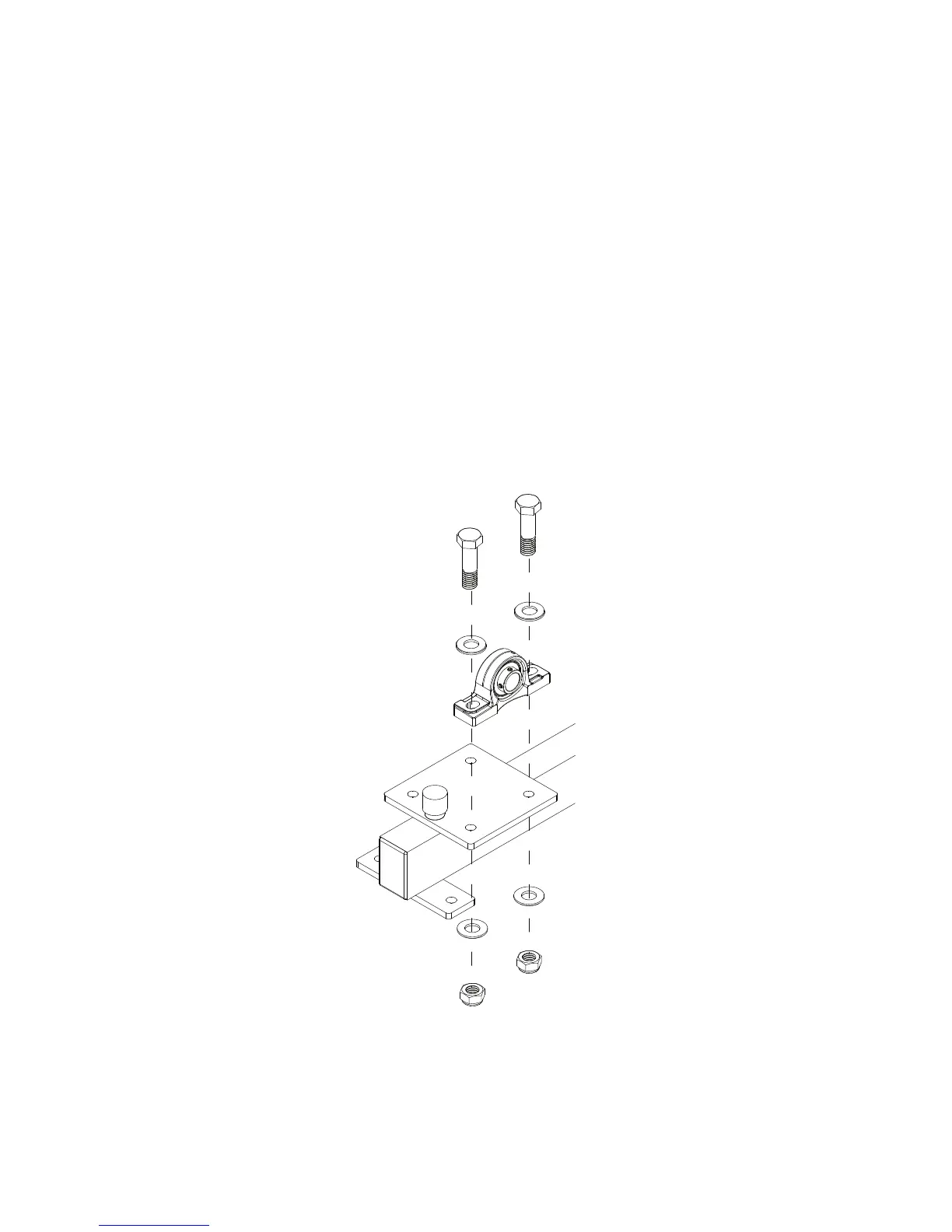

Attach one BEARING HOUSING (11) to BASE FRAME (2) with 1/2” x 1-3/4” HEX HEAD BOLTS (38), 1/2” WASH-
ERS (46) and 1/2” NYLON NUTS (49). See DETAIL.
Insert axle of LEG PRESS ARM (4) into mounted BEARING HOUSING (11). Slide other BEARING HOUSING
onto axle and attach to BASE FRAME (2) with 1/2” x 1-3/4” HEX HEAD BOLTS (38), 1/2” WASHERS (46) and 1/2”
NYLON NUTS (49).
Using an allen wrench, tighten SET SCREWS in both BEARING HOUSINGS (11).
Attach LEG PRESS (5) to LEG PRESS ARM (4) with 1/2" x 3" HEX HEAD BOLTS (37), 1/2" WASHERS (46) and
1/2" NYLON NUTS (49).
Push CAP for NUTS (30) onto heads of 1/2" x 3" HEX HEAD BOLTS (37) attached in step 18.
Thread ADJUSTABLE STOPPERS (34) into BASE FRAME (2).
DETAIL
46
49
38
2
46
11
To Next Page
