Universal 79130 - Page 8

8
Please contact Universal
®
Gym Equipment/FFA Corp. for missing or defective parts at one of the following: Phone 1-800-
472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
Mailing address: Universal
®
Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
Website www.universalgymequipment.com

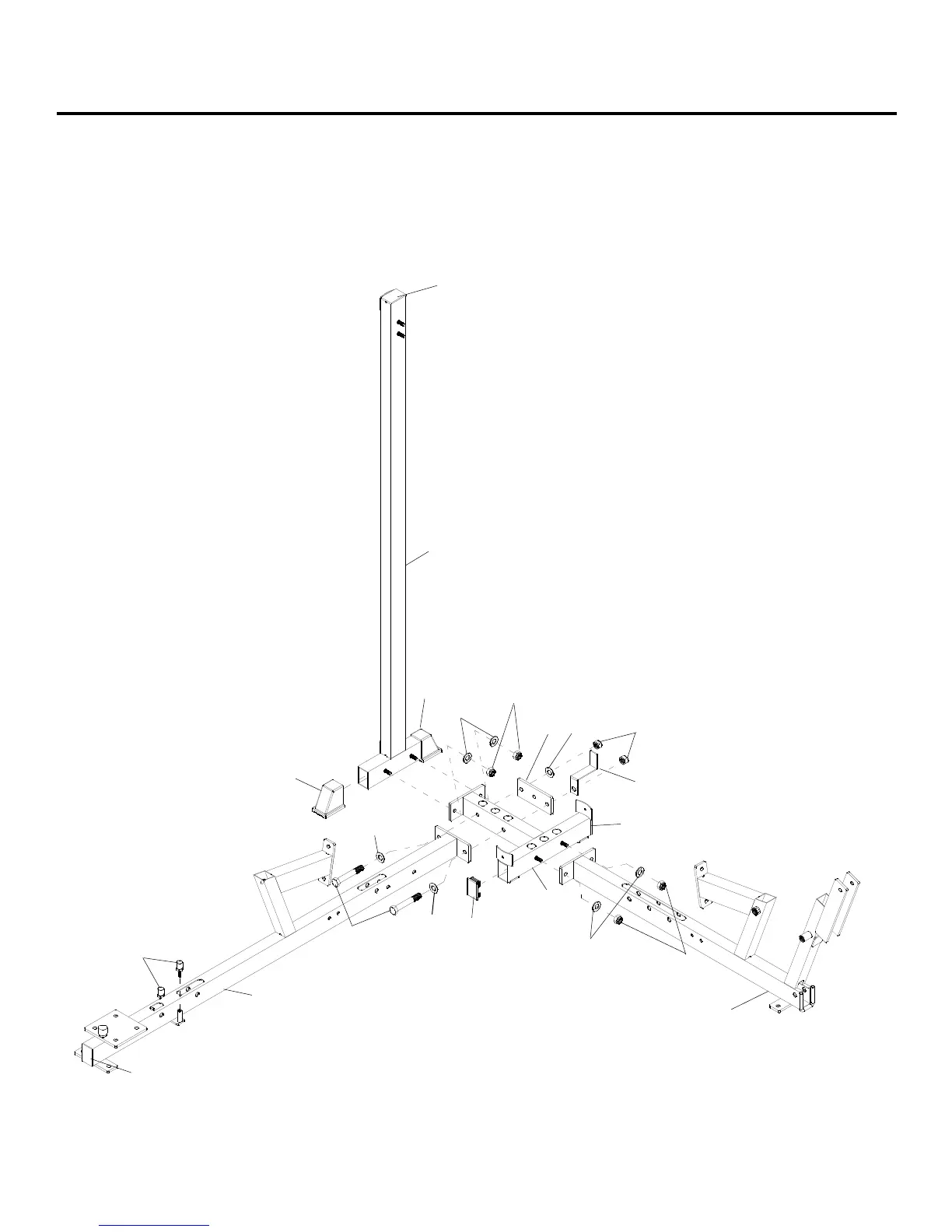

FIGURE 1
8
103
1
99
68
68
32
106
103
67
3
2
80
85
99
99
103
67
99
68
IMPORTANT
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING
FIGURE 1
Step 1.
Step 2.
Step 3.
Push 50mm x 75mm END PLUGS (68) into ends of WEIGHT BASE (8), REAR UPRIGHT (3) and PRESS BASE
FRAME (2).
Push 50mm x 75mm END CAPS (67) onto REAR UPRIGHT (3).
Attach BASE FRAME (1) to WEIGHT BASE (8) with 1/2” WASHERS (99) and 1/2” NYLON NUTS (103).
Step 4.
Step 5.
Step 6.
Attach REAR UPRIGHT (3) to WEIGHT
BASE (8) with 1/2” WASHERS (99)
and 1/2” NYLON NUTS (103).
Attach PRESS BASE FRAME (2) to
WEIGHT BASE (8) with 1/2” x 3-1/2”
HEX HEAD BOLTS (85), 1/2” WASH-
ERS (99), LINK PLATE (32), BRAC-
ING PLATE (106) and 1/2” NYLON
NUTS (103).
Thread ADJUSTABLE STOPPERS
(80) into PRESS BASE FRAME (2).
68
99
