universalblue UBE2408-21 - Burner Nozzle Replacement; Gas Source Conversion

45
P.C.I.G20 37.78 MJ/m³ P.C.I.G25.1 32.51 MJ/m³
P.C.I.G25 32.49 MJ/m³ P.C.I.G27 30.98 MJ/m³
P.C.I.G2.350 27.20MJ/ m³ P.C.I.G30 49.47MJ/Kg
BURNER NOZZLE REPLACEMENT

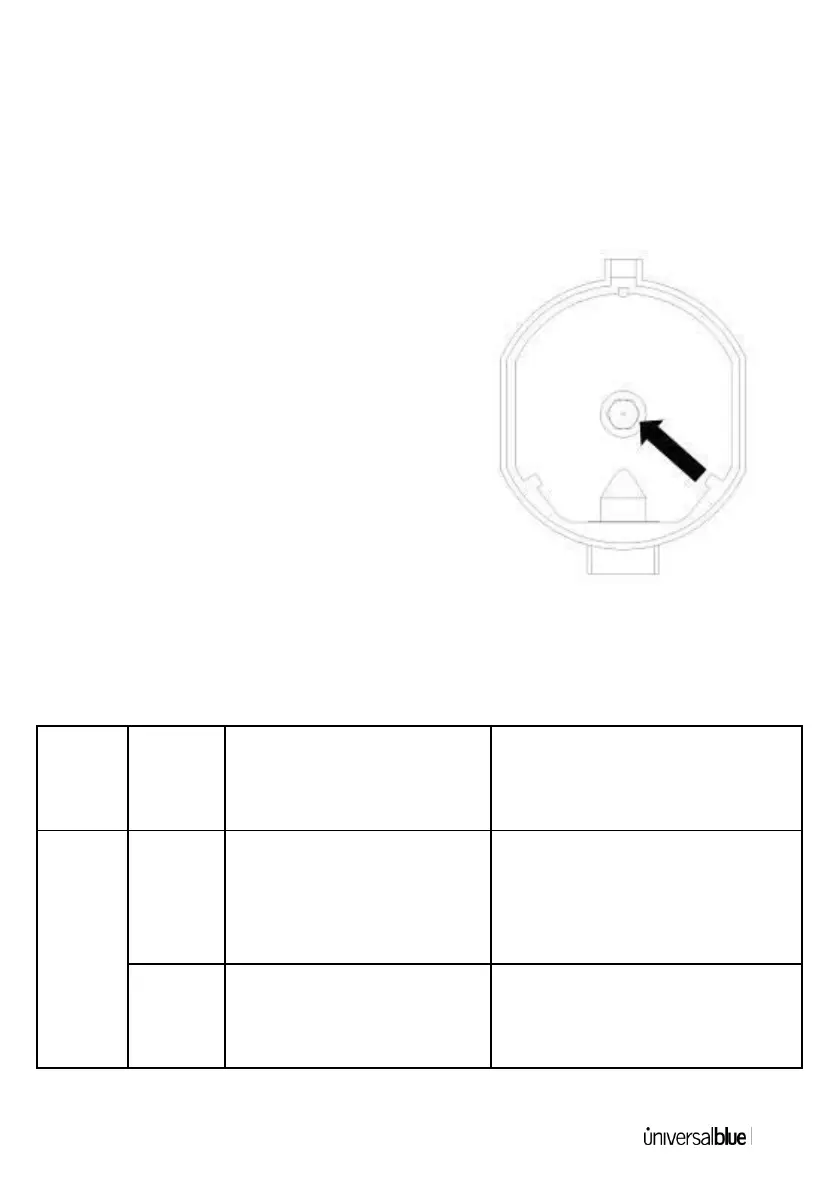

Loosen the nozzle with a wrench
(7). Insert the new nozzle, making
sure it is suitable for the type of gas
required (see table above for
reference).
After you have converted the unit to
a different gas type, be sure to
attach a label with the new
information.
CONVERT THE GAS SOURCE
Burners
Flame
Converting the hob from
LPG to natural gas
Converting the hob from natural
gas to LPG
Regular
burners
Full
flame
Replace the burnerNozzle
according to the guidelines
intable 1
Replace the burner Nozzle
accordingto the guidelines in
table 1
Saving
flame
Loosen the shaft
adjustment (see fig.7 below)
and adjust the flame
Loosen the shaft adjustment (see
fig.7 below ) and adjust the flame
