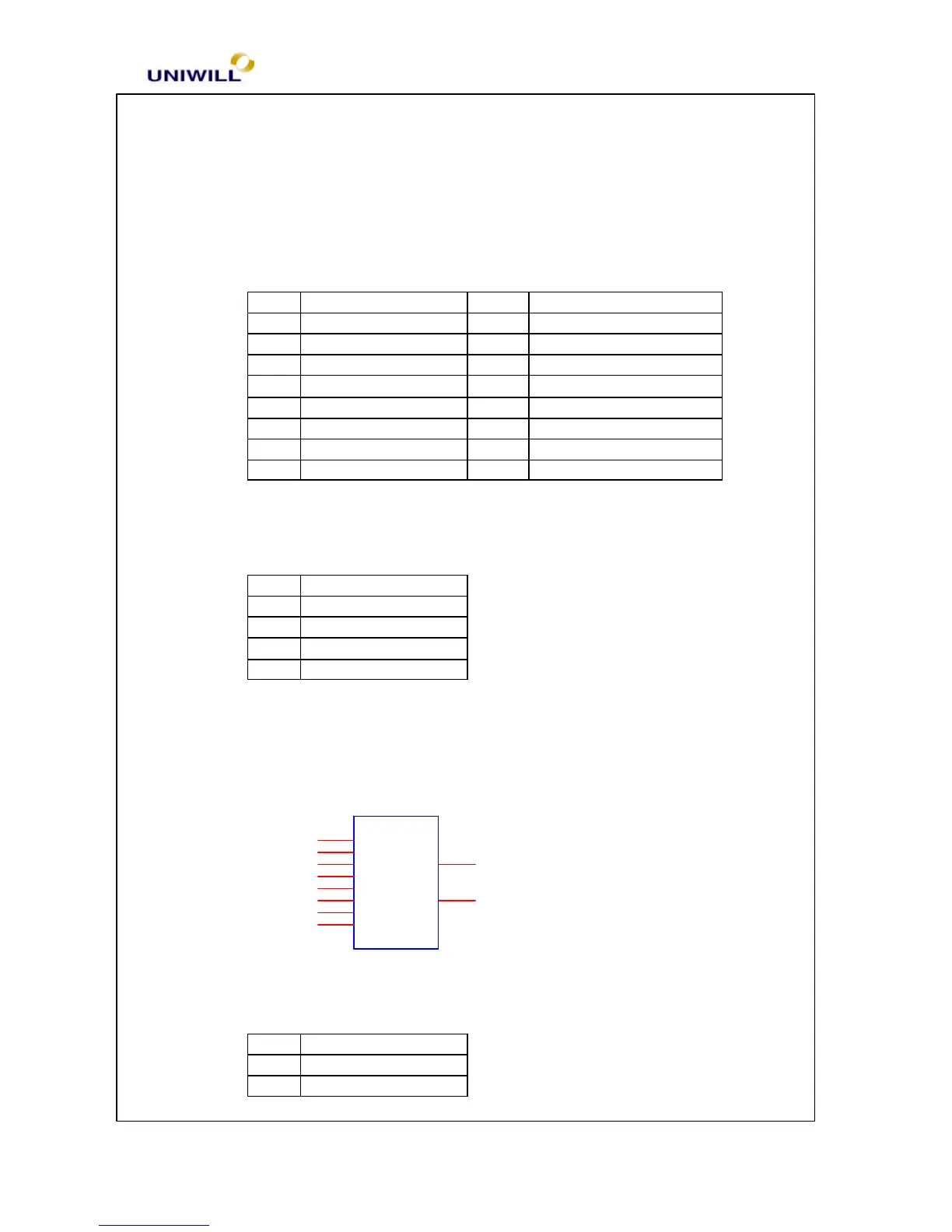

Chapter 2 Connectors & Switches
340S2 14
Rev : B
2.1.5 CRT Connector (CN20)
Pin Description Pin Description
1 RED 9 +5V
2 GREEN 10 GND
3 BLUE 11 NC-
4 NC 12 DDCCLK
5 GND 13 HSYNC
6 DACGND 14 VSYNC
7 DACGND 15 DDCDATA
8 DACGND
2.1.6 USB Connector (CN21)
Pin Description
1 +5V
2 USBP0-
3 USBP0+
4 GND
2.1.7 RJ45 (CN15)
2.1.8 RJ11 (CN16)
Pin Description
1 HRTXRXN
2 HRTXRXP
CN15
RJ45
TD+
1
TD-
2
RO+
3
NC1
4
NC2
5
RO-
6
NC3
7
NC4
8
GND
9
GND
10
