Chapter 5 Troubleshooting Guidelines
340S2 51 Rev : B

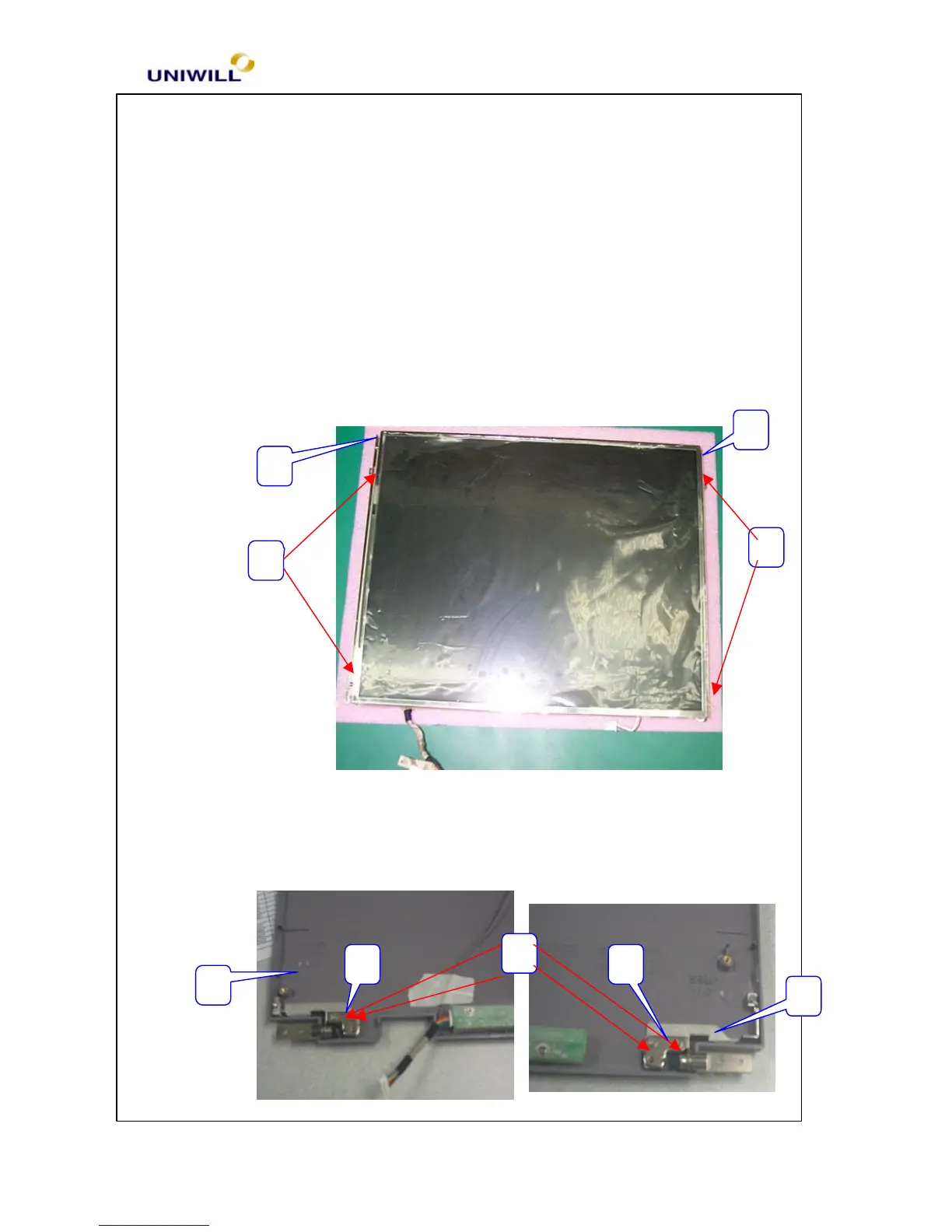

6. Unscrew SCREW*2 (#8) and disassemble BRACKET_R(#9)
7. Unscrew SCREW*2 (#10) and disassemble BRACKET_L (#11).
8. Unfasten SCREWS (#12) from the HINGE.
9. Disassemble HINGE_L (#13) and HINGE_R(#14).
10. Disassemble HINGE BRACKET_L (#15) and HINGE BRACKET_R (#16).
11. Disconnect INVERTER CABLE (#17) from the INVERTER (#18).
9
8
10
11
12
16
15
13 14
