How To Use The Spring Pulling Tool
Step I: Hook the more rounded end of the spring
onto the trampoline mat's triangular rings.
Step II: Extend the spring pull tool and link it up
with the other end of the spring. Pull the tool in
the direction of the trampoline frame until the
spring head is lined up with the hole in the
trampoline frame.
WARNING:
Be careful where you place your hands during spring assembly as
connector points can pinch!
Make sure the v-rings between the springs matches the number of holes in the
frame between the springs.
Note:
Lay out the trampoline mat inside the frame.
1.
Connect all 4 springs to the corner top rails
2.
First connect the 4
corner springs.
Follow by connecting
4 additional springs
in the center of the quarters.
Then continue,
connecting every
few springs
Complete the
rest of the springs
Step III: Slide the spring end into the hole as
you remove the tool.

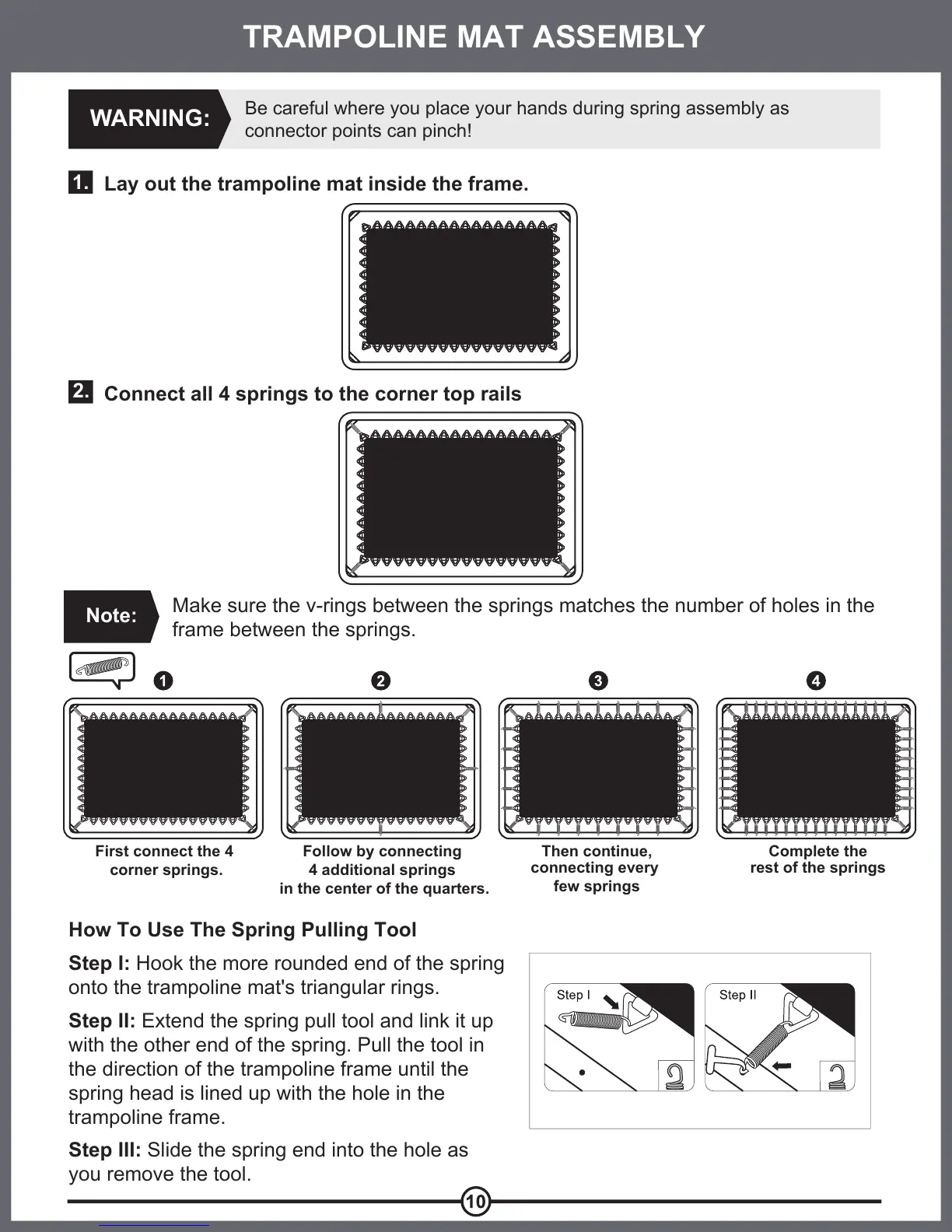

TRAMPOLINE MAT ASSEMBLY
