UPPER90 54515 - Futsal Goal Base Assembly; Assemble Base Corners

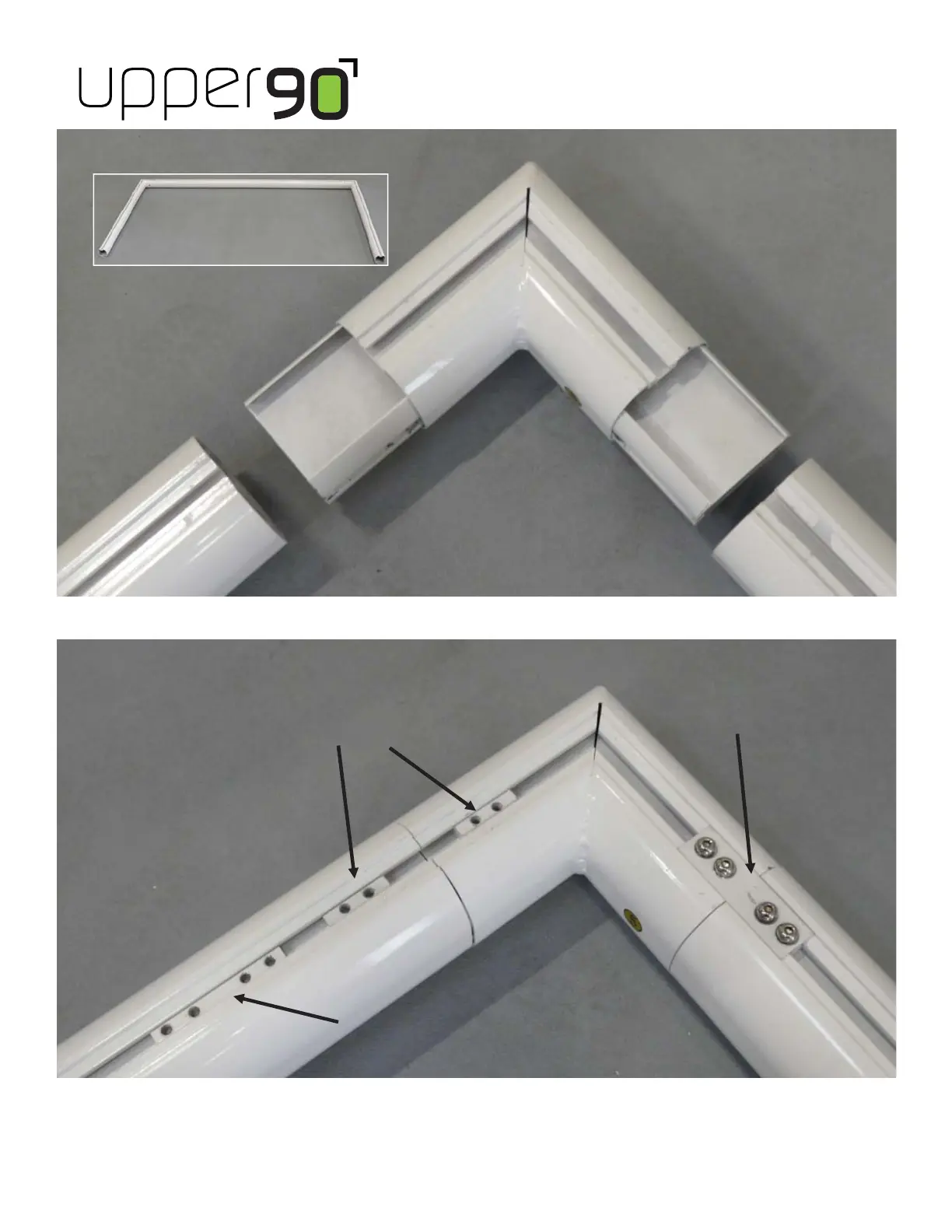

Assemble the left and right base corners
Large tapped 4 hole plate
(for left rear wheel)
Insert two small tapped 2 hole plate
(for rear back stay connection)
Use large tapped plate,
clamp plate and four short
screws, lock washers and
flat washers.
F
A
C
