Section 2 - Service and Repair Drive Motors and Hubs
114101-000 X26 Ultra Narrow - Service Manual Page 2-33
Brake Adjustment
1. Using a 13 mm socket wrench, alternately turn the brake release nuts counter-clockwise in ½ turn
increments. Repeat until there is approximately 3.2 mm (
1/8 in.
) between the brake release nuts and
the drive motor body.
2. After installing the motors, verify that the brakes have fully engaged before operating the machine.
Refer to the
Operator Manual
.

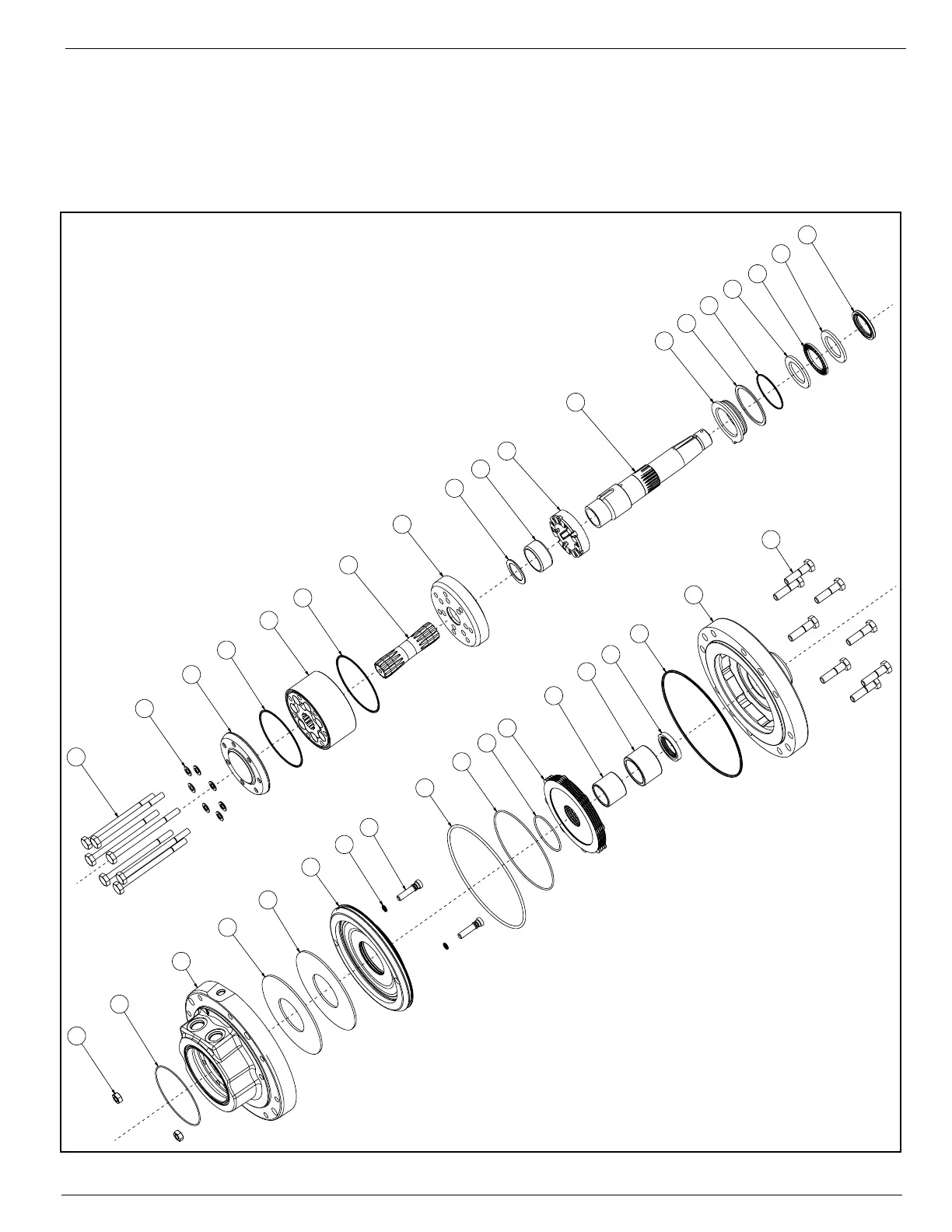

Figure 2-28:
Drive Motor Exploded View
23
20
21
21
22
24
25
26
27
28
29
30
31
33
34
18
19
32
12
13
15
16
15
17
14
10
11
7
8
9
6
4
5
4
3
2
1
Non-Servicable Parts
1 Rotor Bolts
2 Washer
3 Endcap
5 Rotor
6 Cardan Shaft
7 Channel Plate
8 Bearing Race
9 Needle Bearing
10 Commutation Valve
11 Output Shaft
12 Balance Plate
13 Spring Washer
15 Washer
16 Needle Bearing
18 Brake Release Nut
20 Bearing Housing
21 Brake Spring
22 Brake Piston
24 Brake Release Bolt
29 Bushing
30 Needle Bearing
33 Front Flange
34 Front Flange Bolts
Brake Service Kit
4O-ring
14 Balance Plate P-ring
17 High Preasure Shaft Seal
19 O-ring
23 O-ring
25 O-ring
26 O-ring
27 O-ring
28 Brake Disc Set
31 Standard Shaft Seal
32 O-ring
