9

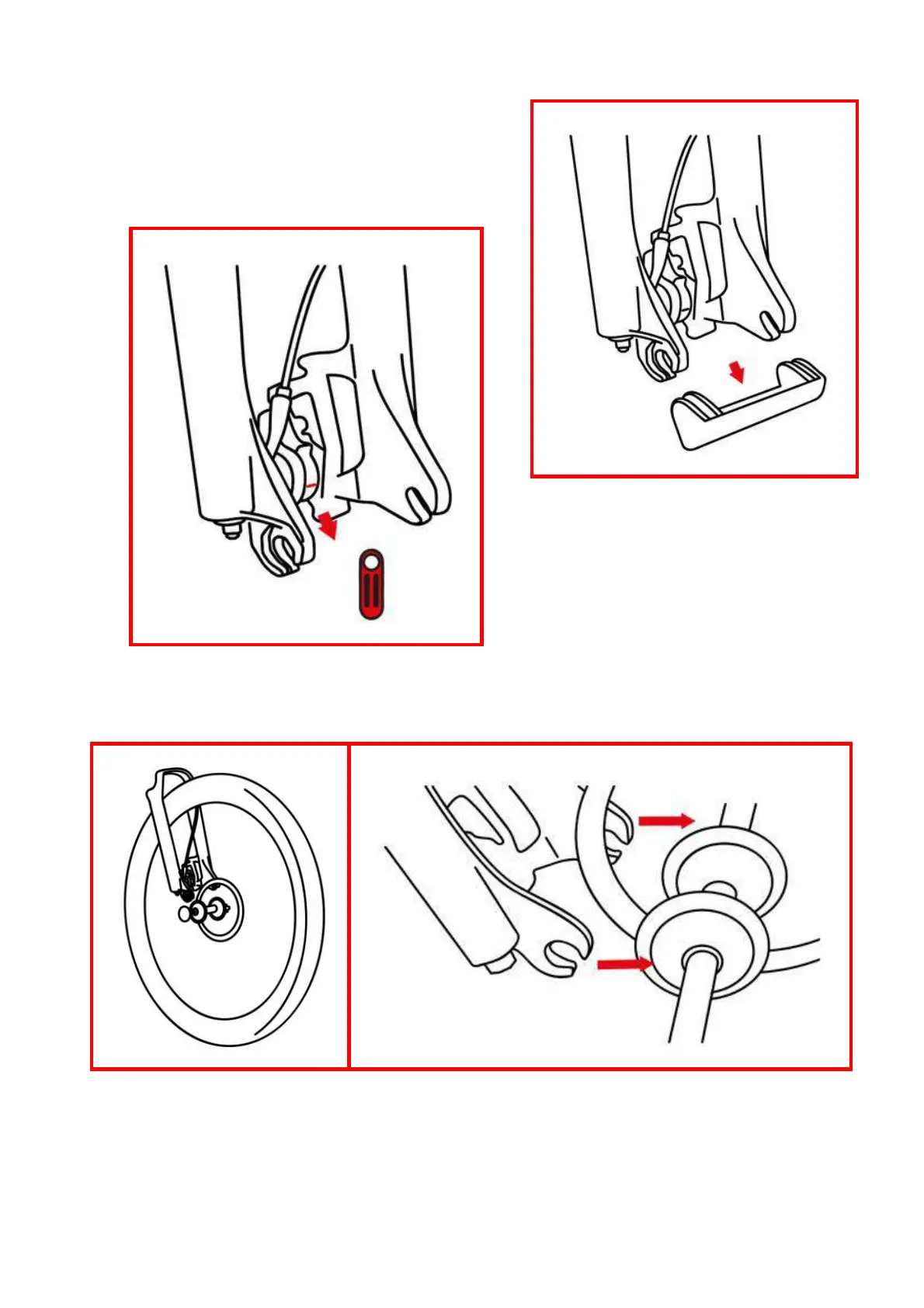

Then take the front fork. Remove the cover in the centre of the fork.
(10)
IMPORTANT! The brake system is integrated in the fork. Before
starting the assembly, remove the protective tab located in the brake
system. (11)
Then insert the front fork into the front wheel. (12) CAUTION: Make sure that the brake pad on the wheel is inserted
into the brake system. The brake pad must be inserted where you removed the tongue. Place the two hooks of the fork
on either side of the metal rod.
