cleat

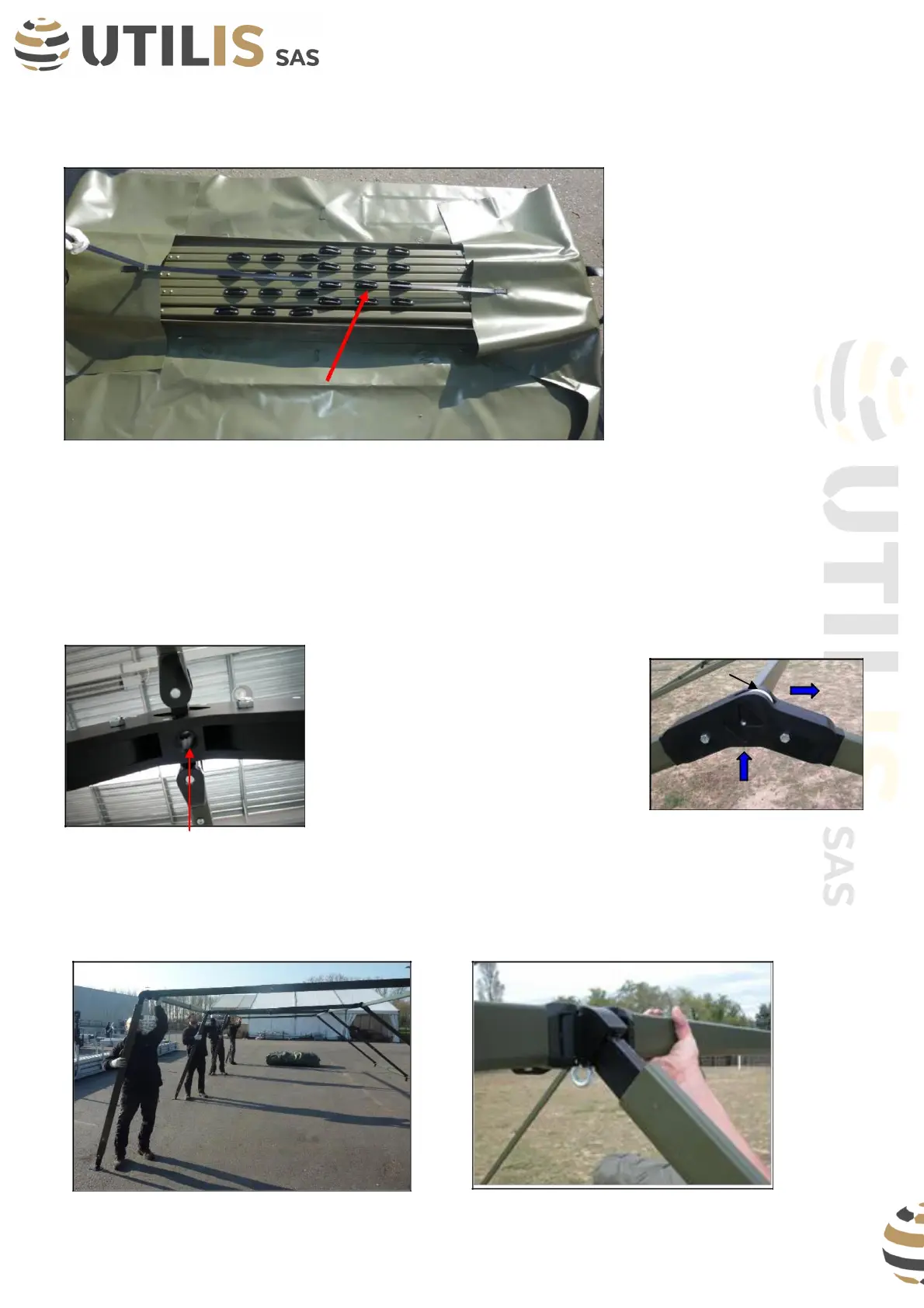

You now have to slot the leg profiles on the correct side (see below explanations) lifting the frame by 4
people.
The cleats (black plastic parts fixed on each leg profile) must face toward the outside.
Pulley
The side which has to be set-up first will
be defined by the ridge, referring to the
rope passage direction. You will position
first the four feet on the side of the rope
passage.
Rope passage direction
Rope passage
With 4 people: each one takes a foot, lift the frame and slot the leg profile into the frame.
