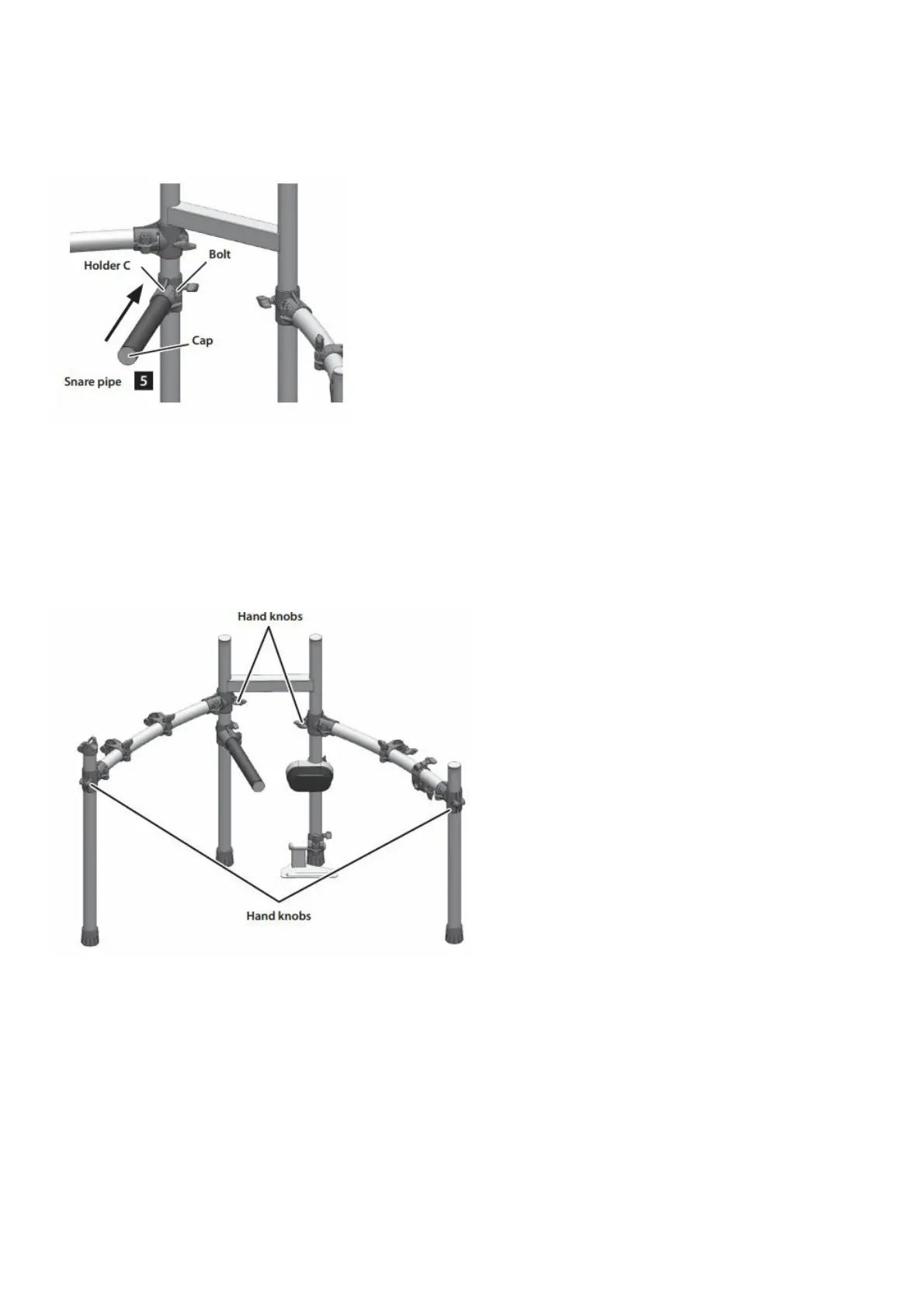

4. Attaching the snare pipe
4-1. Use the drum key to loosen bolt of the holder “C,” and insert the snare pipe into holder “C” of the stand.
After firmly inserting it all the way, use the drum key to firmly tighten bolt.
Insert the end of the snare pipe that doesn’t have a cap on it into holder “C.”
5. Adjusting the vertical pipes
5–1. Place the stand upright, then loosen the hand knobs of holders “A” and “B” (two places). Next, spread
open the pipes at left and right.
5–2. Verify that the four vertical pipes are truly vertical. If the stand wobbles, loosen the bolts on the holders
of straight pipes “L” (long) and “R” (short) and adjust the height. After adjusting the height, tighten the bolts
on the holders.
6. Attaching the pad mounts
The tips of the mounts are sharp. Handle them with care.
6-1. Attach mount holders to the top of the stand and tighten the respective hand knobs.
