7. Attaching the cymbal mounts

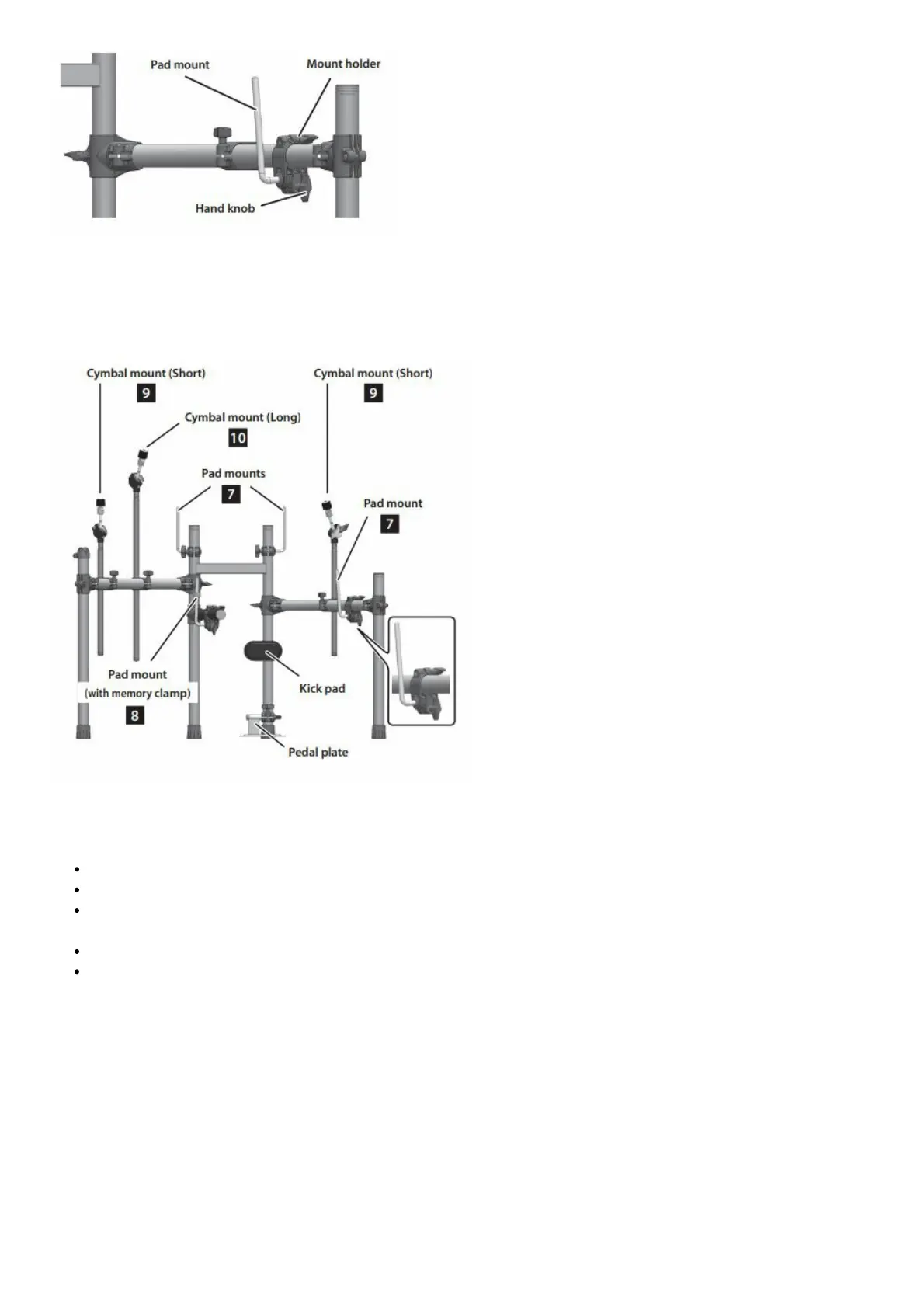

7-1. Insert the two cymbal mounts and the hi-hat mount into the holders of the curved pipes, and adjust all
the holders as shown in the illustration to complete setup.
For a left-handed setup
If you want to use a left-handed setup, assemble the stand as follows.
Reattach the holders attached to the stand’s pipes so that there are two holders on the right and one on the left.
Attach the kick pedal and the pedal plate to the left side of the stand.
Assemble the left and right arm sections so that straight pipe “R” (short) is at the left and straight pipe “L” (long)
and the drum sound module holder are at the right, and attach them to the stand.
Attach the snare pipe to the right side of the stand.
Attach the pad mounts and cymbal mounts as shown in the illustration.
