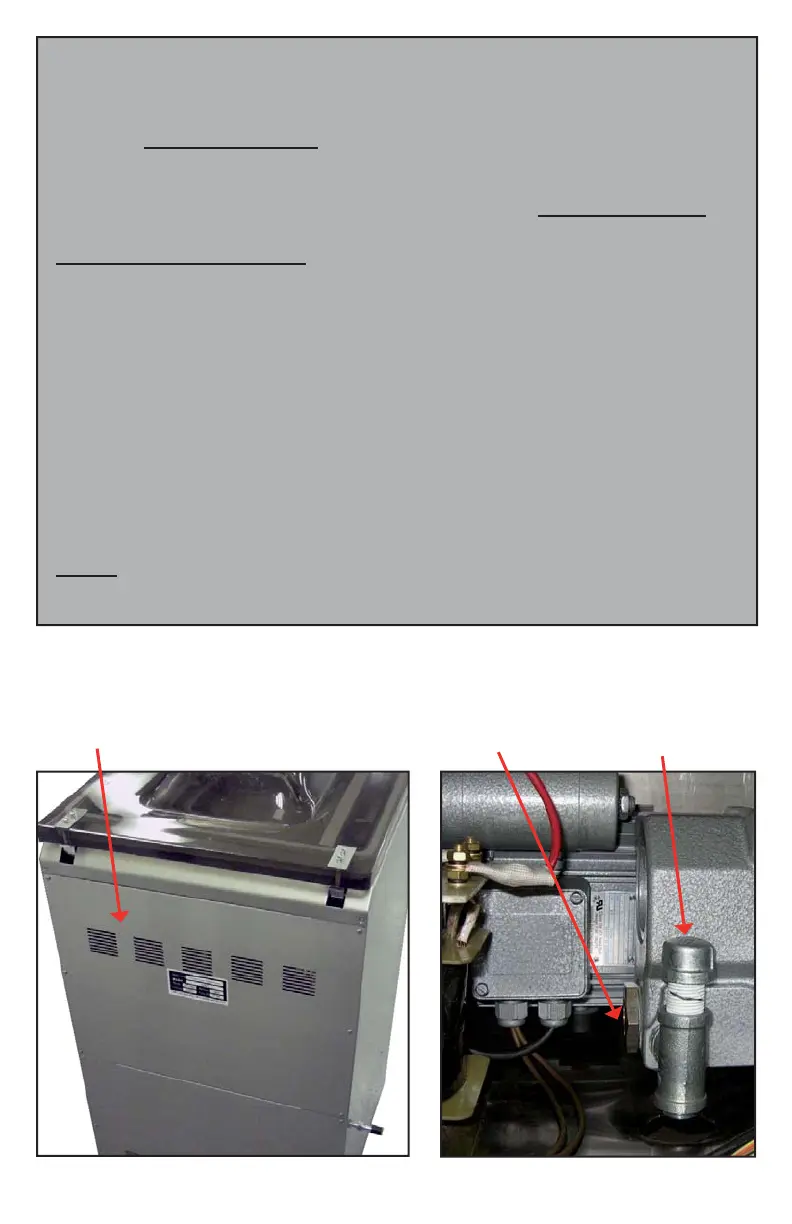

Back of Housing Cabinet
Oil Fill Cap
Oil Site Glass
STOP!!
Read and complete the following to prevent any damage.
Oil must be added to the vacuum pump before using.
VacMaster
®
model VP325 uses an oil vacuum pump.
For shipping purposes there is no oil in the pump. Oil must be added.
Adding Oil to Vacuum Pump
Turn off and unplug machine to prevent electrocution.
1. Using the included ARY approved oil, fi ll the enclosed plastic oil bottle.
2. With a phillips screwdriver, remove the 4 screws to open the back of the
cabinet.
3. Locate the oil fi ll cap on the top of the vacuum pump.
4. With pliers or vice grips, turn cap counterclockwise to loosen & remove.
5. Watching site glass, insert end of oil bottle into hole.
6. Fill oil level between 1/2 to 3/4 of site glass; approximately 8oz. of oil.
Do not overfi ll. Overfi ll can cause damage to the vacuum pump.
7. Replace and tighten oil fi ll cap to vacuum pump.
8. Reattach back cover.
NOTE: Pump requires approximately 8 fl uid ounces of oil (approx. 1 cup)
.
Use only approved VacMaster
®
vacuum oil.
