Vacmaster VP545 - Page 3

STOP!!
Read and complete the following to prevent any damage.
Oil must be added to the vacuum pump before using.
VacMaster model VP545 uses an oil vacuum pump.
For shipping purposes there is no oil in the pump. Oil must be added.
Adding Oil to Vacuum Pump
Turn off and unplug machine to prevent electrocution.
1. Using the included ARY approved oil, ll the enclosed plastic oil bottle.
2. With a phillips screwdriver, remove the 4 screws to open the back of the
cabinet.
3. Locate the oil ll bolt on the top of the vacuum pump.
4. Remove oil ll bolt.
5. Watching site glass, insert end of oil bottle into hole.
6. Fill oil level between 1/2 to 3/4 of site glass.
Do not overll. Overll can cause damage to the vacuum pump.
7. Replace and tighten bolt to vacuum pump.
8. Reattach back cover.
NOTE: Pump requires approximately 8 uid ounces of oil (approx. 1 cup).
Use only approved VacMaster
®
vacuum oil.

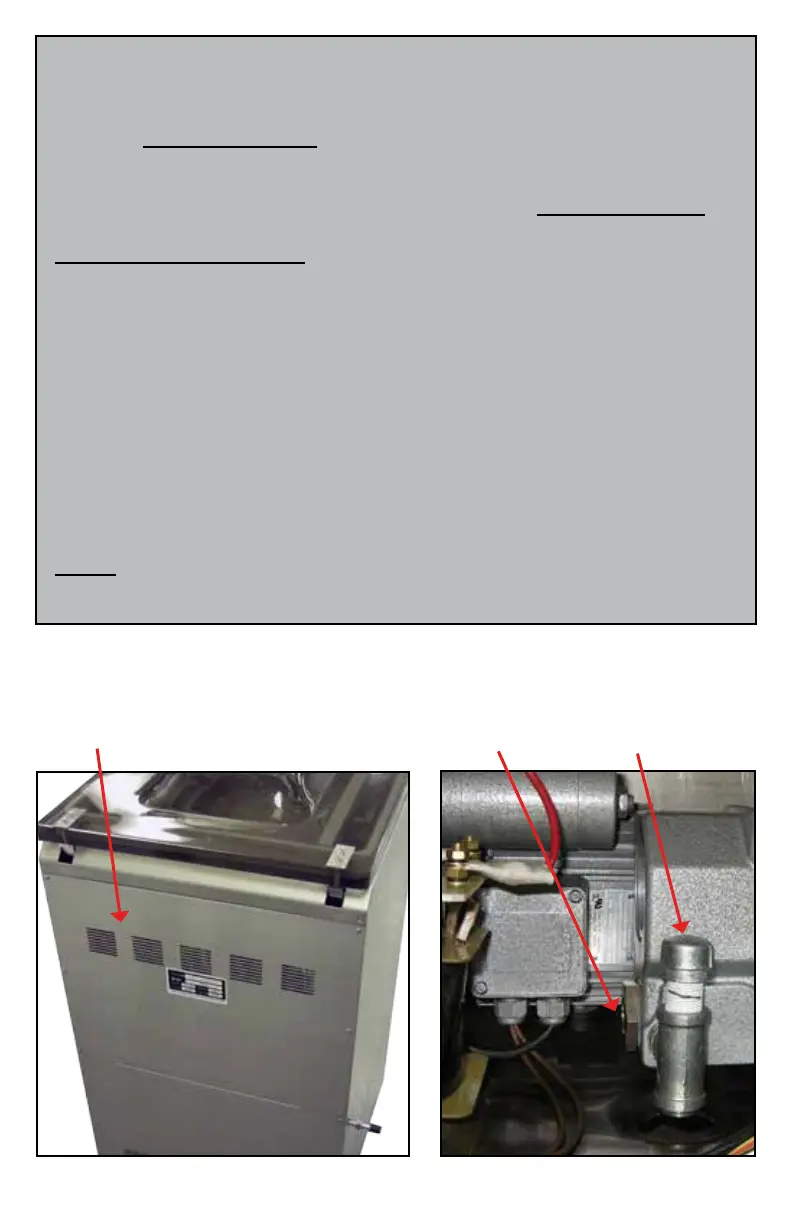

Back of Housing Cabinet
Oil Fill Cap
Oil Site Glass
