7-segment Control panel
Digital input
Status indication
Example:
Input Terminal
DIA1 8
closed
DIA2 9
closed
DIA3 10
open

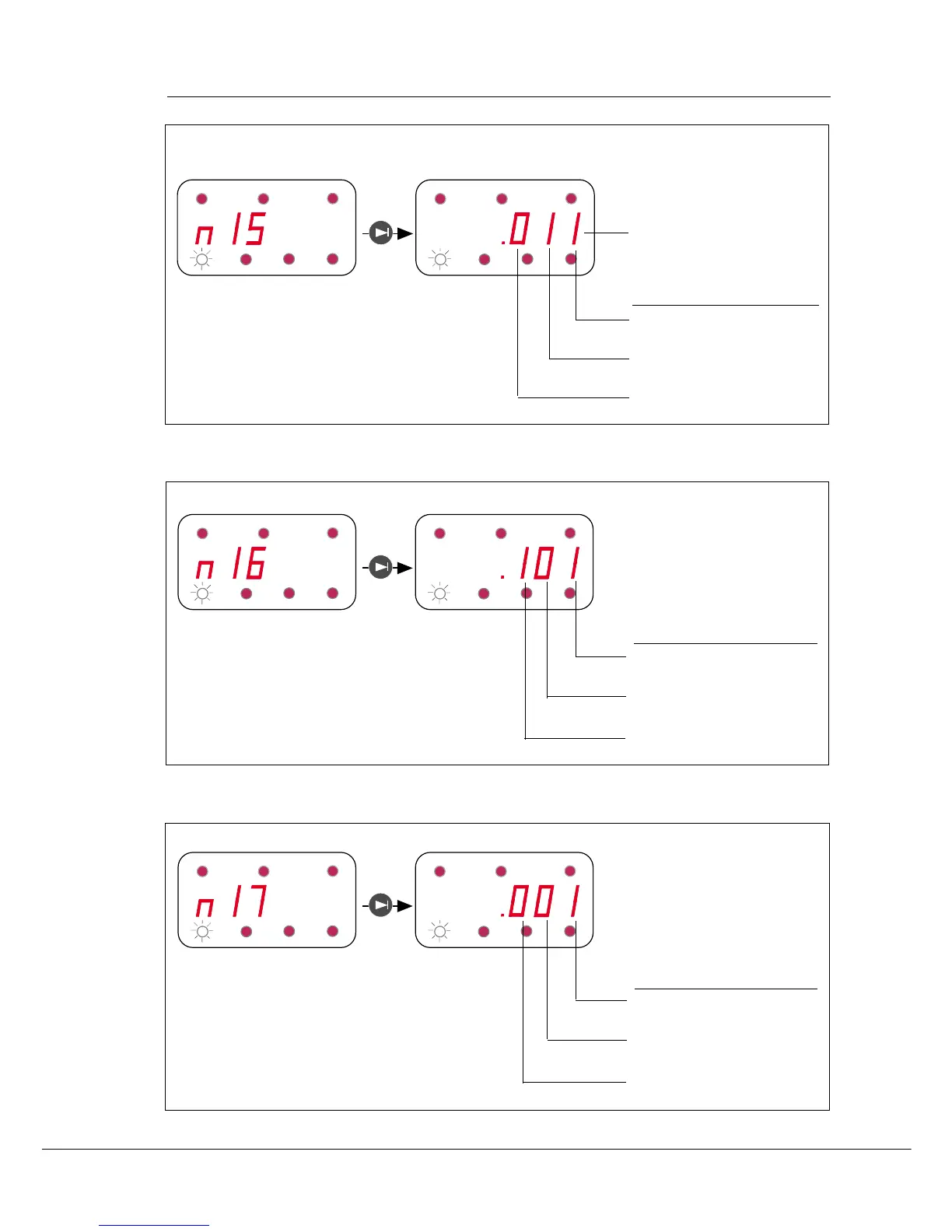

Figure 4. Digital inputs, Group A status.
Figure 6. Output signal status.
Figure 5. Digital inputs, Group B status.
Example:
Input Terminal
DIB4 14
closed
DIB5 15
open
DIB6 16
closed
Example:
Output Terminal
Digital output 20
closed (sinking current)
Relay output 1 21
open
Relay output 2 24
open
MON PAR REF BTNS
RUN READY FAULT
MON PAR REF BTNS
RUN READY FAULT
0 = open input
1 = closed input (active)
MON PAR REF BTNS
RUN READY FAULT
MON PAR REF BTNS
RUN READY FAULT
MON PAR REF BTNS
RUN READY FAULT
MON PAR REF BTNS
RUN READY FAULT
7
