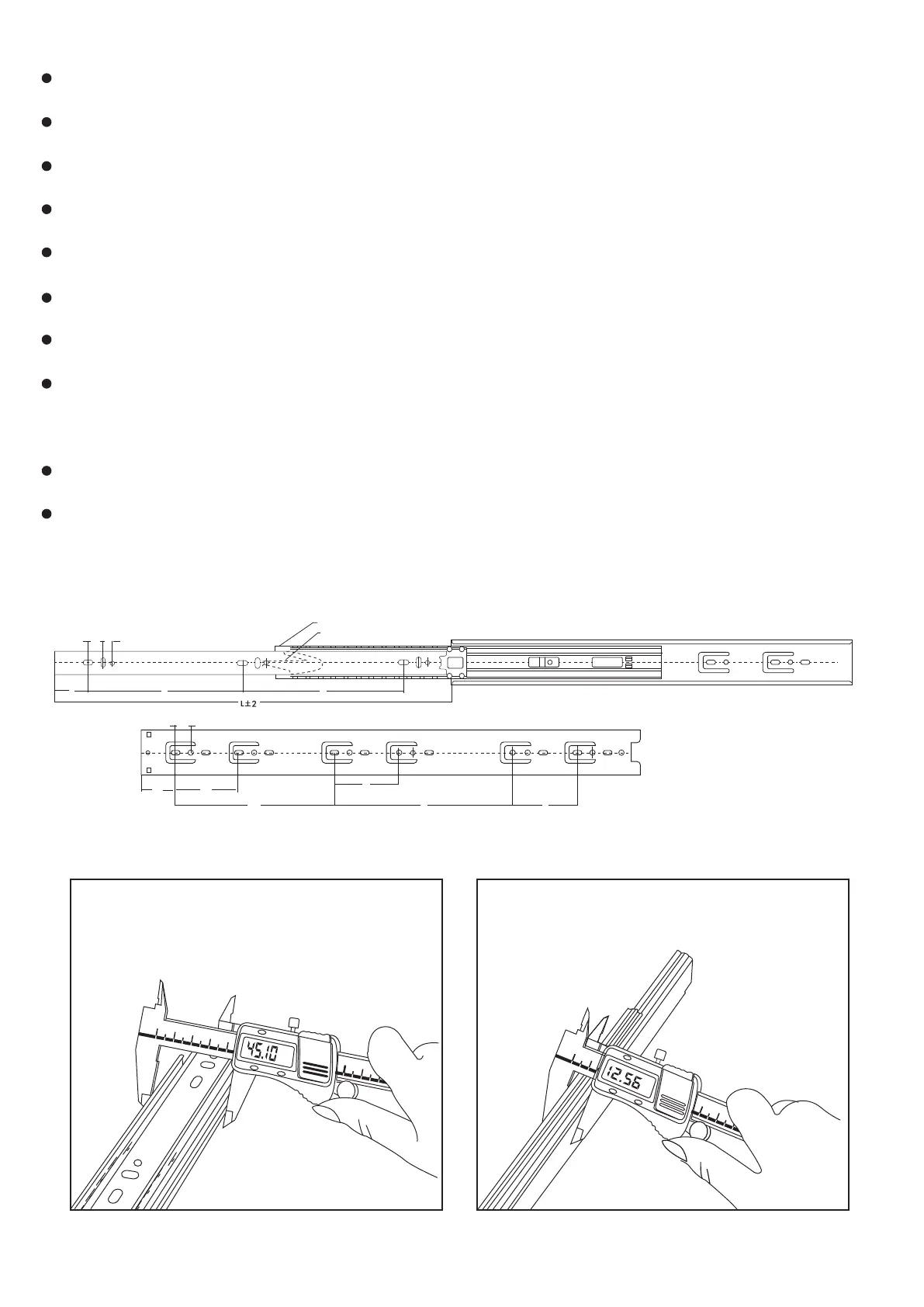

NAME：VADANIA Drawer Slides VA1245/VA1045
MATERIAL: Cold-Rolled （Cold Rolled） Steel
INSTALLATION METHOD: Side Mount
MAXIMUM LOAD CAPACITY: 100lb / 45kg.
MINI DEPTH OF CABINET: Drawer Length + 0.12in / 3mm
SURFACE TREATMENT: Galvanized / Electrophoretic Black
SLIDE STYLE: 3 Folds Full Extension, Side Mount, Separable
PLATE THICKNESS: Outer Slider 0.04in(1.2mm) /
Middle Slider 0.04in(1.2mm) / Inner Slider 0.06in(1.5mm)
SIZE: 8-24in / 200-600mm
SCOPE OF APPLICATION: &LYLO)XUQLWXUH2ႈFH)XUQLWXUH
Cabinets/Wardrobes, etc
