0.5±0.01” / 12.56±0.25mm
1.7” / 45.10mm
Drawer floor
Space Between Drawer and Cabinet
Page 4

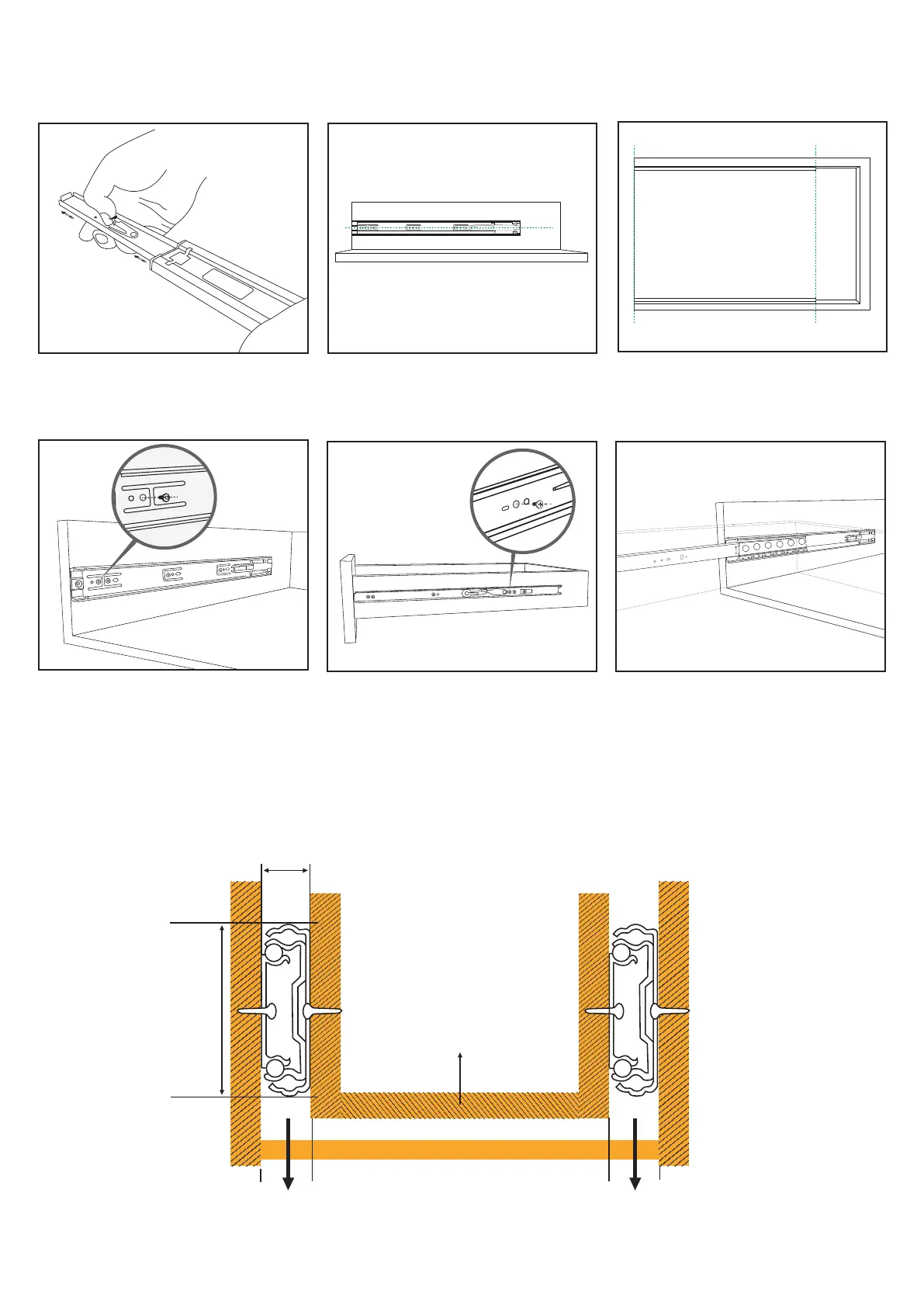

Step2
Installation Instruction
Make sure the slides are leveled during the
installation process
Step1
Separate drawer and base portion before
mounting with provided lever
Step3
Place the outer member ush with the front
edge of cabinet
Step5
Adjust and level the inner member. mount the
screws in the permanent mounting holes
Step4
Mount the screws in the permanent mounting
(Breathing) holes
Step6
Move the metal retainer to the front of cabinet
member and insert the drawer box carefully.
