Description of functions and units
Installation instructions geoTHERM 0020051574_04 9
3
3 Description of functions and units
3.1 Identification plate
On the geoTHERM heat pump, an identification plate is
affixed to the front of the frame You can read the type des-
ignation of the heat pump from the sticker (1) (¬Fig.3.3)
on the bottom-right of the front cladding and on the identi-
fication plate.
R407 C
COP
B0/W35
4,3
COP
B5/W55
3,3
B0/W35
B5/W55
3/N/PE 400V 50Hz
IP 20
Vaillant GmbH Remscheid / Germany
1/N/PE 230V 50Hz
3/N/PE 400V 50Hz
10 kW
10 kW
-- kW
99 A
< 44 A
4,1 kg
2,9 (29) MPa (bar)
21,6 kW
23,0 kW
VWS 220/2
Serial-No. 21054500100027970006000001N1
21054500100028300006000001N4
44 A

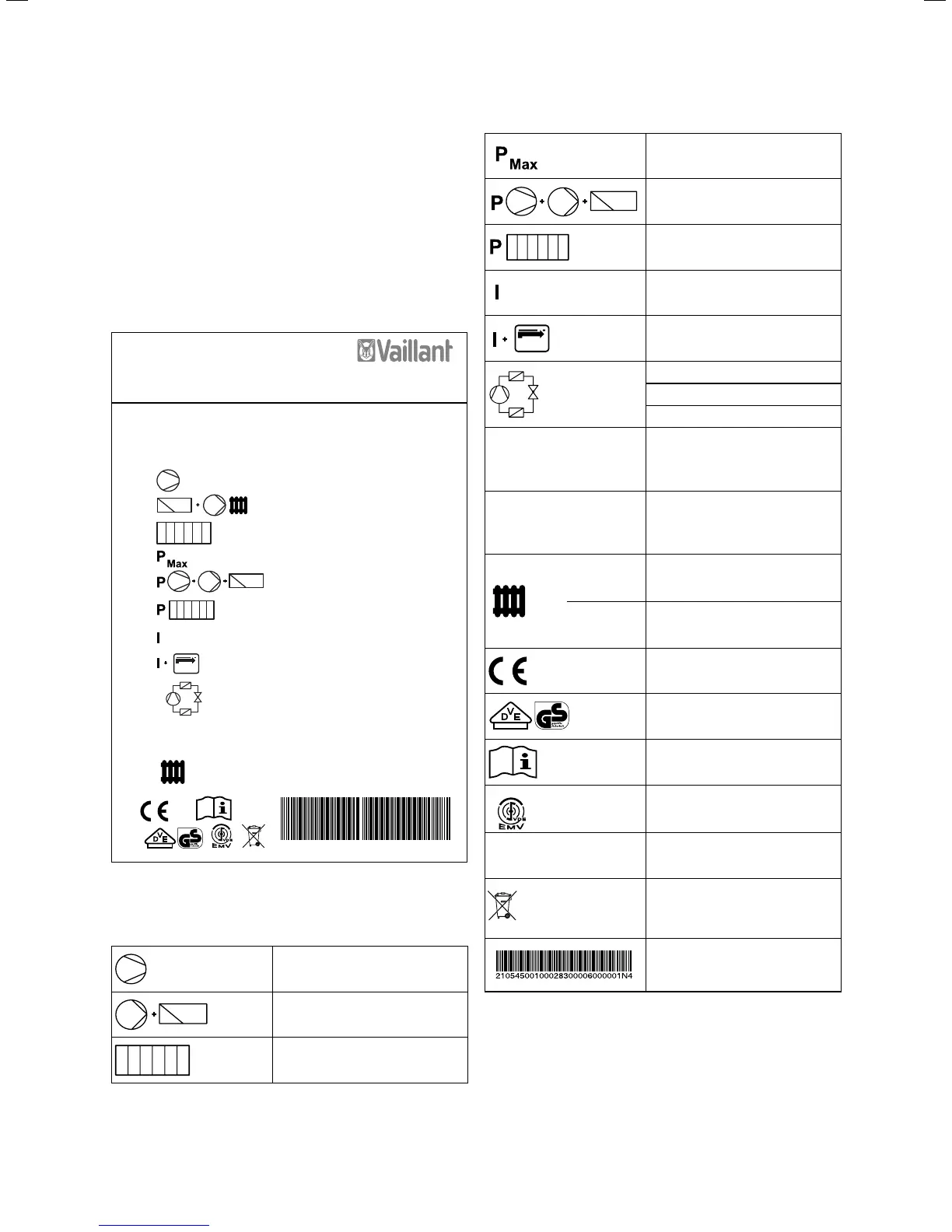

3.1 Example of an identification plate (VWS)
Explanation of the symbols on the identification plate
Rated voltage - compressor
Rated voltage - pumps + controller
Rated voltage - auxiliary heater
Rated maximum power
Rated power - compressor, pumps
and controller
Rated power - auxiliary heater
Start-up current without in-rush
current limiter
44 A
Start-up current with in-rush cur-
rent limiter
Coolant type
Filling quantity
Permissible rated overpressure
COP B0/W35
Output figure (Coefficient of Per-
formance) at a brine temperature
of 0 °C and heating flow tempera-
ture of 35 °C
COP B5/W55
Output figure (Coefficient of Per-
formance) at a brine temperature
of 5 °C and heating flow tempera-
ture of 55 °C
B0/W35
Thermal heating output at a brine
temperature of 0 °C and a heating
flow temperature of 35 °C
B5/W55
Thermal heating output at a brine
temperature of 5 °C and a heating
flow temperature of 55 °C
CE mark
VDE/GS mark
Read the operating and installa-
tion instructions.
VDE mark for electromagnetic
compatibility
IP 20
Type of protection against contact
and moisture (IP 20)
At the end of its useful life, dis-
pose of it properly and according
to regulations (not household
waste)
Serial Number
3.1 Symbol explanations
