1.3 Indigo Transmitter Parts
3
4
6
5
1
2

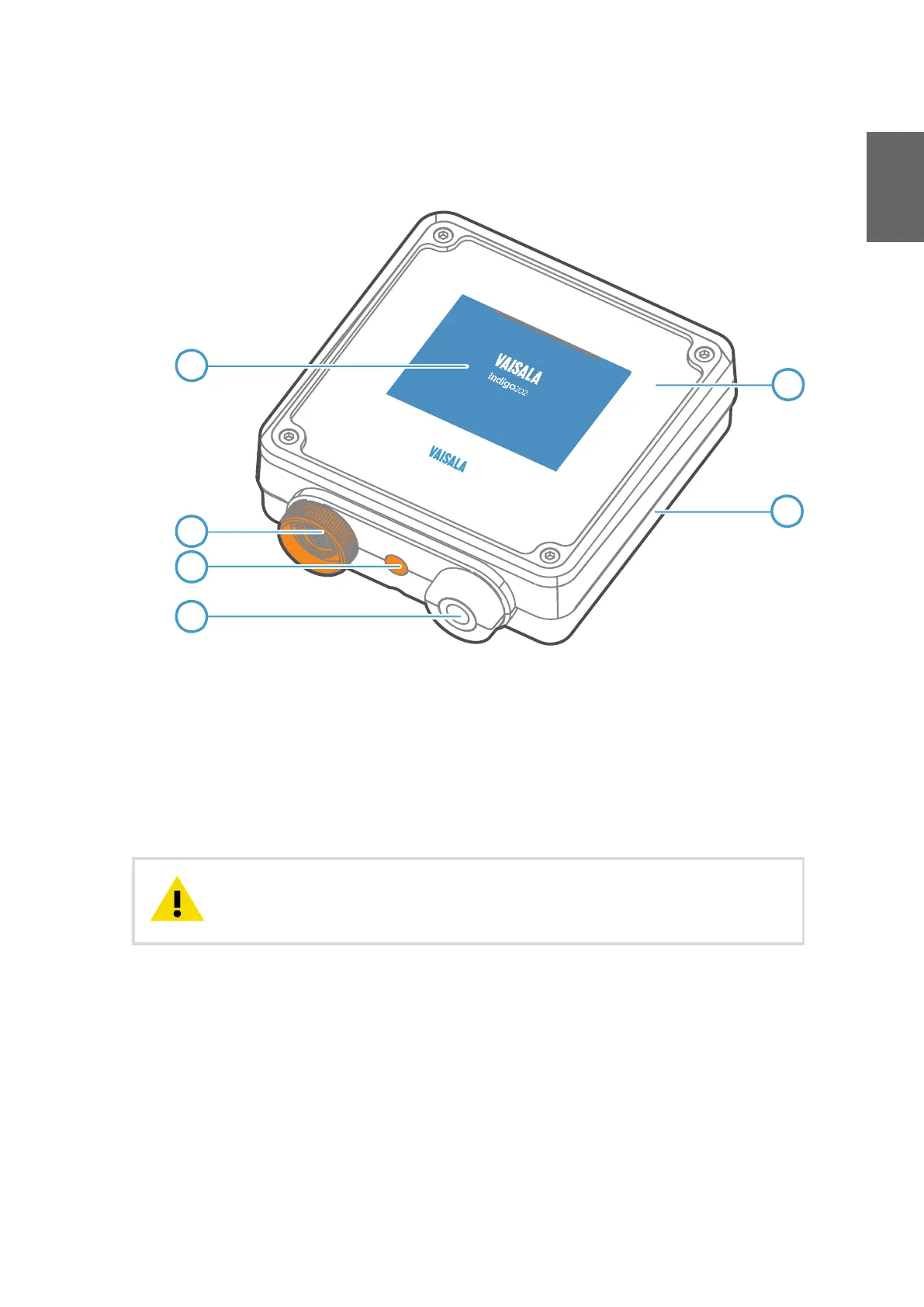

Figure 2 Indigo Transmitter Parts
1 Display
2 Probe and probe cable connector, locking wheel
3 Wireless (WLAN) configuration interface activation button
4 Rubber lead-through with strain relief for input/output cable
5 Top cover of the transmitter: display, circuit board and connector pins
6 Transmitter base: input and output wiring (screw terminals), mounting base
Only use Vaisala Indigo-compatible probes with the transmitter. Attempting
to connect incompatible probes or probe cables can damage the equipment.
CAUTION!
