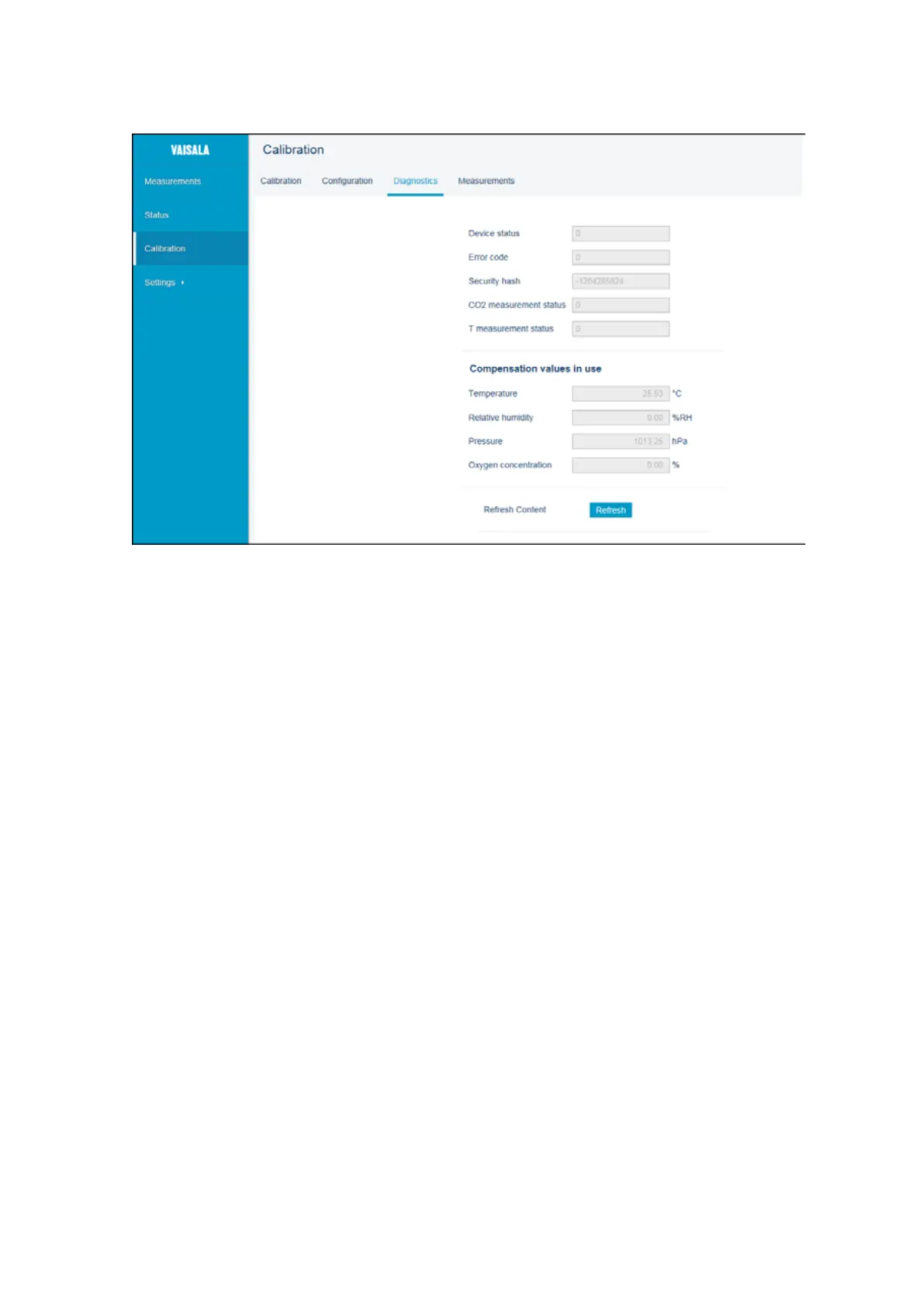

Figure 26 Diagnostics Tab, CO
2
Pr
obe Example
7.5 Configuration Tab
The
Configuration tab of the Calibration menu contains probe-specific configuration
options and the environmental compensation options.
Not
e that the probe
configuration options available in this view are not always necessary for
use with Indigo. For example, the Communication options shown in the following CO
2
probe
example apply only to the probe's own communication settings. The communication
settings of the Indigo transmitter are configured in a separate menu.
Similarly, the analog output settings shown here apply only for the probe's analog output
channels, which are not used when the probe is connected to an Indigo transmitter that has
its own output channels and settings.
Chapter 7 – Calibration and Adjustment
51
