5
1 CJ205416 1 Coupler Stem
2 CJ204190 1 Coupler Body
3 ★ 1 Retaining Ring
4 ★ 2 Back-Up Washer
5 ★ 2 O-Ring
6 ★ 1 O-Ring
7 ★ 1 Back-Up Washer
8 ★ 1 Spring
★ Indicates items included in and available only as part of Swivel Coupler Kit
CF692950K1.
NOTE: The Swivel Coupler Kit (CF692950W) contains items 2D, 2H, and 10
from the Air Pump Assembly (Figure 1).
NOTE: Repair Kit PA133K3 includes (1) CF692950K1.
Repair Parts List for Figure 3
Item Part Number Qty. Description
1
8
7
6
5
4
2
3
4
5

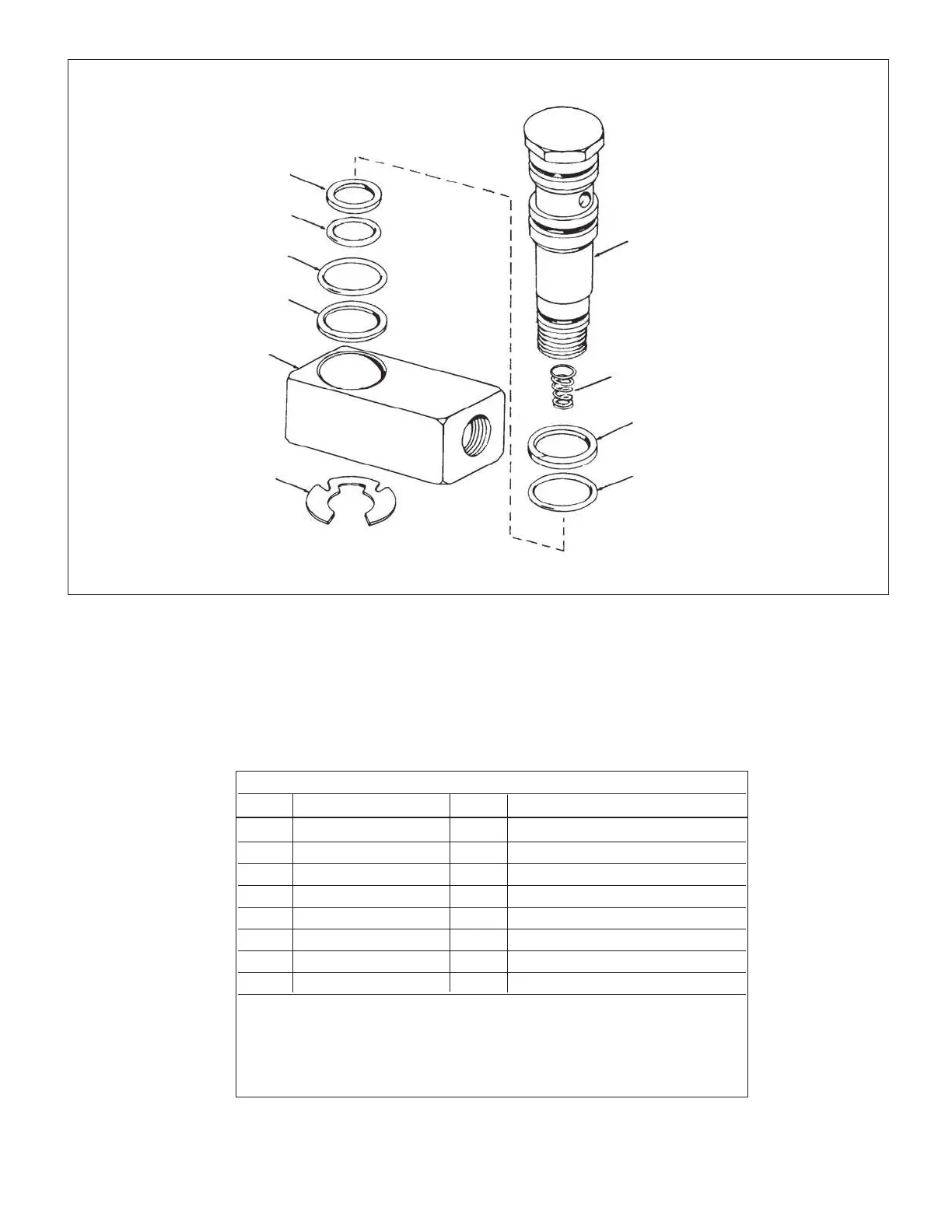

Figure 3, Swivel Coupler Assembly
