Apply one drop of Loctite #242
to threads or stake threads in
Item 7 in only one place after
assembly.
1
3
4
67
2
5

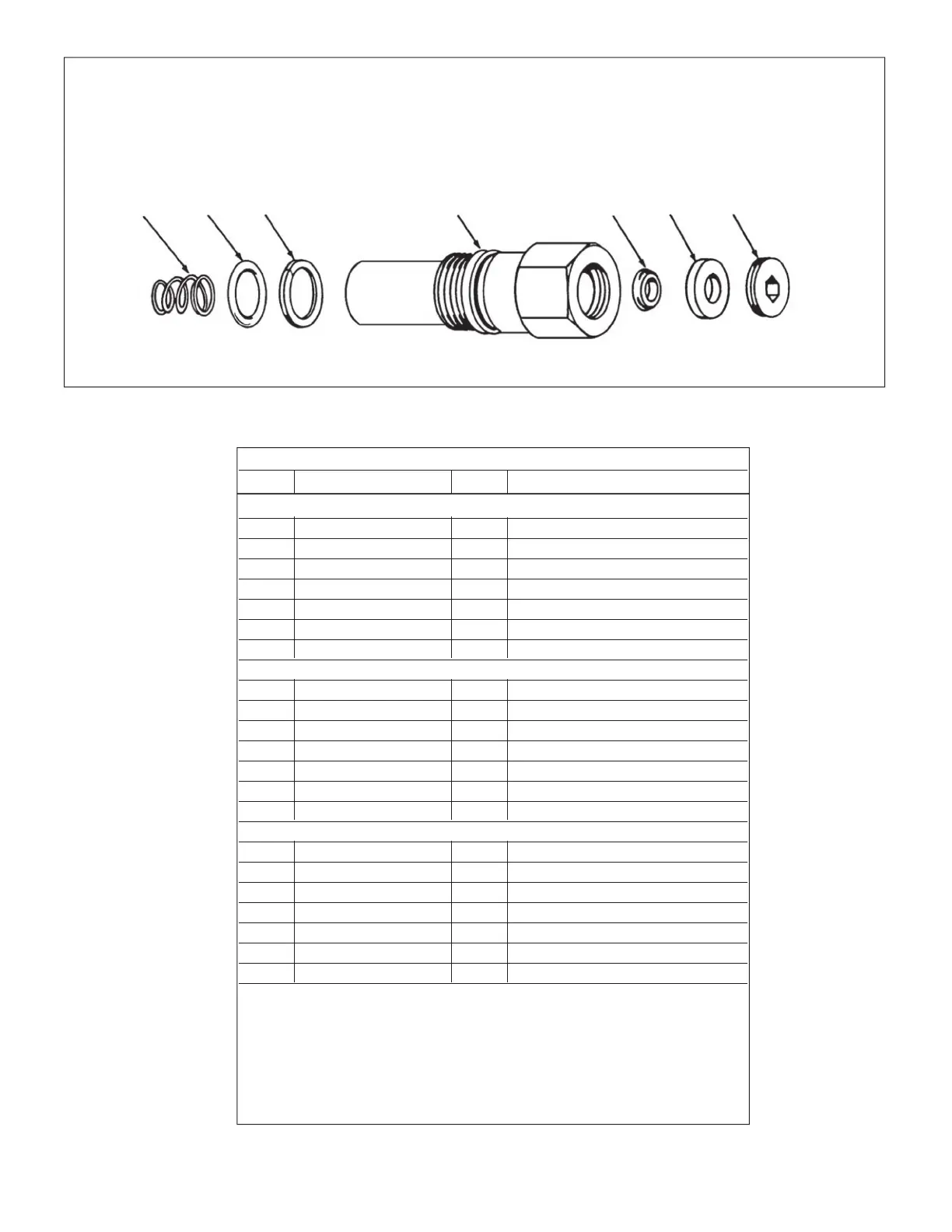

Figure 5, Hydraulic Cylinder
Model PA133, 7001
1 ★ 1 Spring
2 CH203950SR 1 Hydraulic Cylinder Assembly
3 ★ 1 O-Ring
4 ★ 1 Back-Up Washer
5 ★ 1 U-Cup
6 ★ 1 Back-Up Bearing
7 ★ 1 Bearing Retainer
Model PA135
1 ★ 1 Spring
2 DA1227950SR 1 Hydraulic Cylinder Assembly
3 ★ 1 O-Ring
4 ★ 1 Back-Up Washer
5 ★ 1 U-Cup
6 ★ 1 Back-Up Bearing
7 ★ 1 Bearing Retainer
Model PA136
1 ★ 1 Spring
2 CH208950W 1 Hydraulic Cylinder Assembly
3 ★ 1 O-Ring
4 ★ 1 Back-Up Washer
5 ★ 1 U-Cup
6 ★ 1 Back-Up Bearing
7 ★ 1 Bearing Retainer
★ Indicates items included in and available only as part of Hydraulic Cylinder
Repair Kit HCRK1.
NOTE: HCRK1 is a universal kit and will service any of the three hydraulic
cylinders listed.
NOTE: Hydraulic Cylinder Repair Kit HCRK1 also includes Items 2D, 2E, and
10 from the Air Pump Assembly (Figure 1).
NOTE: Repair Kit PA133K3 includes (1) HCRK1.
Repair Parts List for Figure 5
