Val-Tex QS-5000-C - Page 22

11 251762 1 Warning Decal (For PA6, PA6-2,
PA6A, PA6M-KSHIM, PA6AM, PA6E,
PA6M, PA6M-1, PA6M-2, PA6N,
PA6M-CAR, PA6M-ROM, PA6-2-FS-
LR, PA6V, PA6-2-CM, PA6-SS, PA6-
AW, PA6M-1-STEL & PA6-CMS)
251762-CE 1 Warning Decal (For PA6-PFAFF,
PA6-PRO, PA6M-DE-STA-CO, PA6M-
DES-50 & PA6M-PFAFF)
12 350568 1 Decal (For PA6AUTO ROBOT; Locate
on opposite side as shown.)
250614 1 Decal (For 910303; Locate on
opposite side as shown.)
13 251731 1 Decal (For 910303; Locate on
opposite side as shown.)
PARTS INCLUDED BUT NOT SHOWN
211060 4 Screw (#9-15 X 1" Lg.; Torque to
25/35 in. lbs.; For pump mounting
purposes only; For PA6-HUTH,
PA6-KJ, PA6N, PA6A, PA6, PA6-AW,
PA6-AERO, PA6-AUTO, PA6-BEST,
PA6-CB, PA6-TAL, PA6-LUKAS,
PA6-PFAFF, PA6-PRO, PA6-SS)
215951 4 Screw (10-24 X 5/8; For pump
mounting purposes only; For
PA6-HYDRA)
252168 4 Screw (1/4-10 X 1 Lg.; For pump mtg.
purposes only; For PA6-2 & PA6-2-
FS-LR)
10177 4 Screw (1/4-20 UNC X 3/4 Lg; For
pump mounting purposes only; For
PA6M-2)
10469 1 Straight Fitting (3/8 NPTF;
For PA6-KJ)
250952 1 Plug Fitting (3/8 NPTF; For PA6-KJ)
16232 1 Plug Fitting ( 3/8 PTF; For PA6-LUAM;
Note: Apply Thread sealant)
212836 1 Decal (For 910301)
215951 2 Screws (1/4-20 X 3/4; For PA6-HUNT)
250707 1 Quick Coupler (For IMT200)
251617 1 Quick Coupler (For IMT200)
39910 1 Rubber Hose (8'; For IMT200)
252024 1 Serial Number Decal (PFAFF; For
PA6-PFAFF)
253522 1 Serial Number Decal (PFAFF; For
PA6M-PFAFF)
39910 1 Hydraulic Hose (For PA6M-1-STEL)
25599 1 Male Hose Half Coupler (For
PA6M-1-STEL)
9800 1 Dust Cap (For PA6M-1-STEL)
9769 1 Hose (10' Polyurethane;
For PA6-AMH)
Parts List Form No. 101652
Sheet No. 2 of 6
Rev. 35 Date: 29 Mar. 2001
Item Part No. Item Part No.
No. No. Req’d Description No. No. Req’d Description
Item Part No.
No. No. Req’d Description
1 253185 1 Straight Fitting (3/8 NPTF)
2 12753 1 Straight Fitting
4 15417 1 Suction Strainer

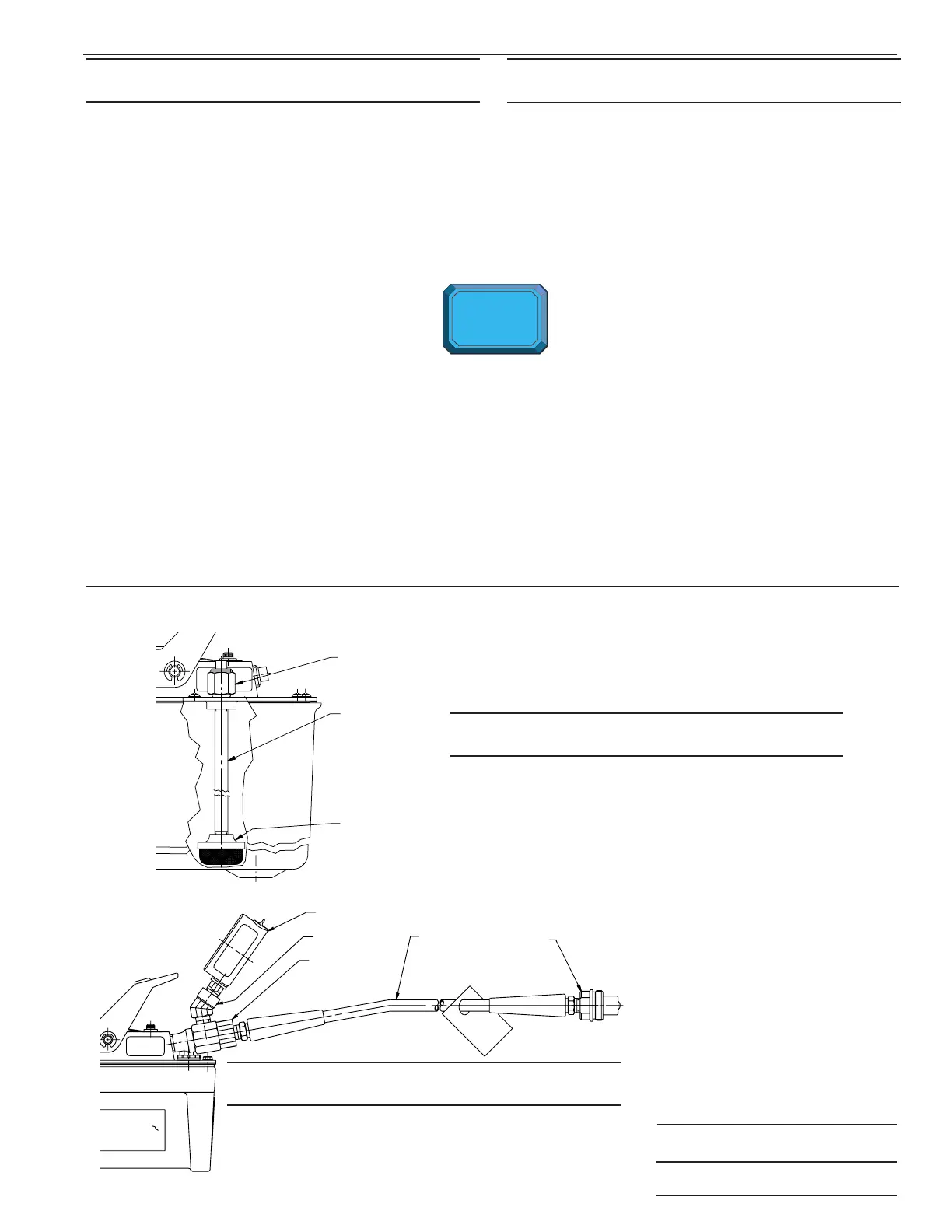

This view covers the PA6-2-CM Only.
1
2
4
Item Part No.
No. No. Req’d Description
1 9040 1 Guage (10,000 PSI, 2 1/2" Dia.)
2 10645 1 Fitting, Elbow (45 deg., 1/4 NPTF)
3 9670 1 Fitting, Tee (1/4 x 3/8 x 3/8)
4 350167 1 Hose (6' Rubber)
5 25599 1 Coupler, Hose Half
This view covers the PA6-SS Only.
WARNING
1
2
3
4
5
To
Drawing
Part numbers marked with an asterisk (*) are
contained in a Repair Kit see sheet 6 of 6 for
individual repair kit information.
