The ignition cables are xed with 8mm silicon tubing and cable ties. I cut the silicon tubing
lengthwise, it prevents the ignition cables much better against wear, than spiral tubing.

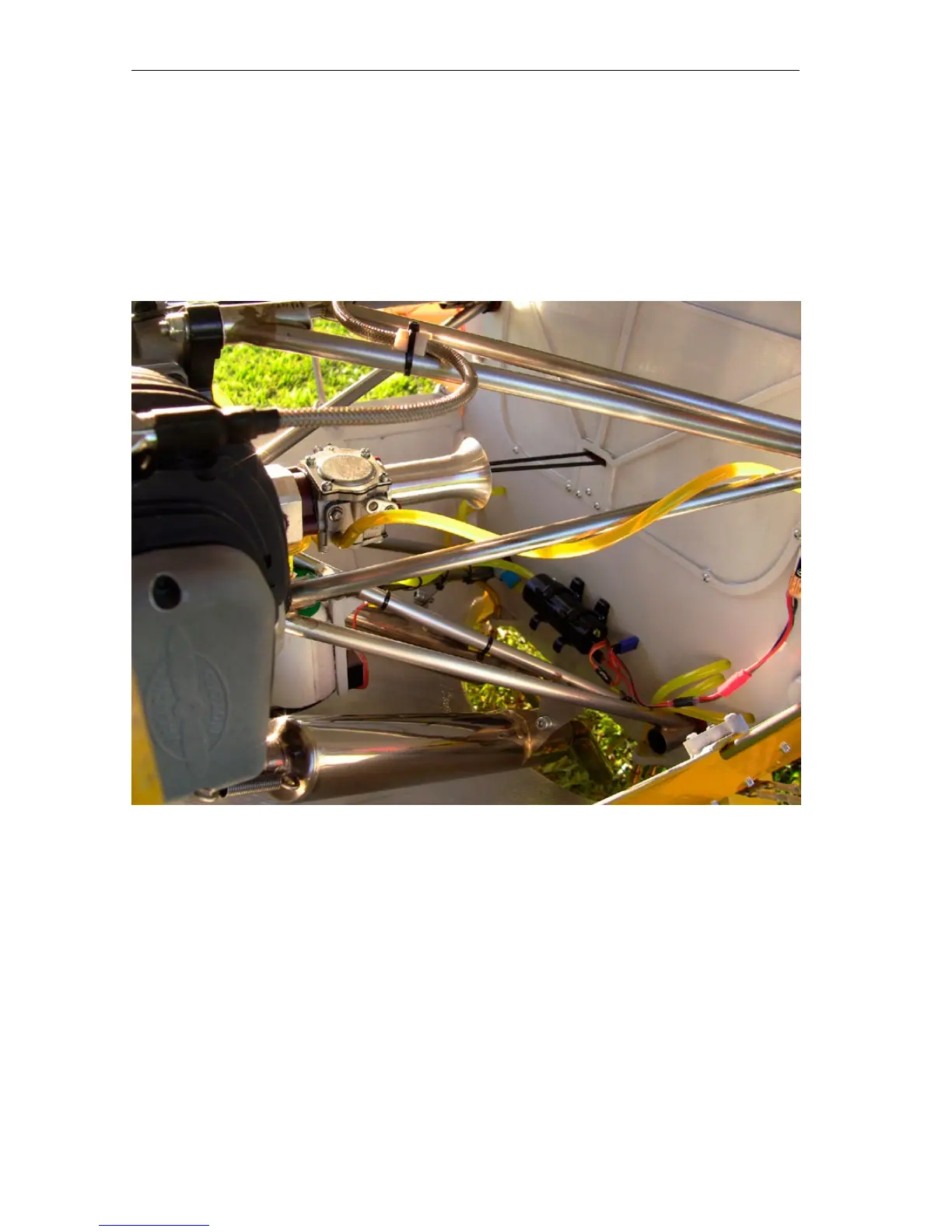

The stainless steel silencers on the pictures are simple absorption silencer. A 20 mm tube goes
right through the 40mm casing pipe. It is sieved from all sides on the full length with 4 mm
holes. This damps the high frequencies, but lets enough from the warm sound go through.
The super sti engine mount is made from 10x0,3 mm stainless steel tubes. It weighs despite of
its size just 330 g.
The black pump, on the bottom of the rewall is an Emcotec smoke pump. It injects the oil over
3mm stainless steel tubes into both exhaust header.
The oil reservoir is mounted with Velcro and can easily be removed to drain it.
The microprocessor Ignition is protected with a tough case and the electronics inside
are encapsulated to protect against vibration. In spite of this it is not a good idea to
simply mount the ignition box onto the rewall with a couple of cable ties. I screw the
ignition on a sheet of plywood. Aditionally I protect it against vibrations with a piece
of rubber between the ignition and the plywood.
