Valcom V-9972 - Function Settings DIP Switch Configuration; Output Port Selection (SW 1); Silence Timeout Selection (SW 2 & 3); Absolute Timeout Selection (SW 4 & 5)

4 947007

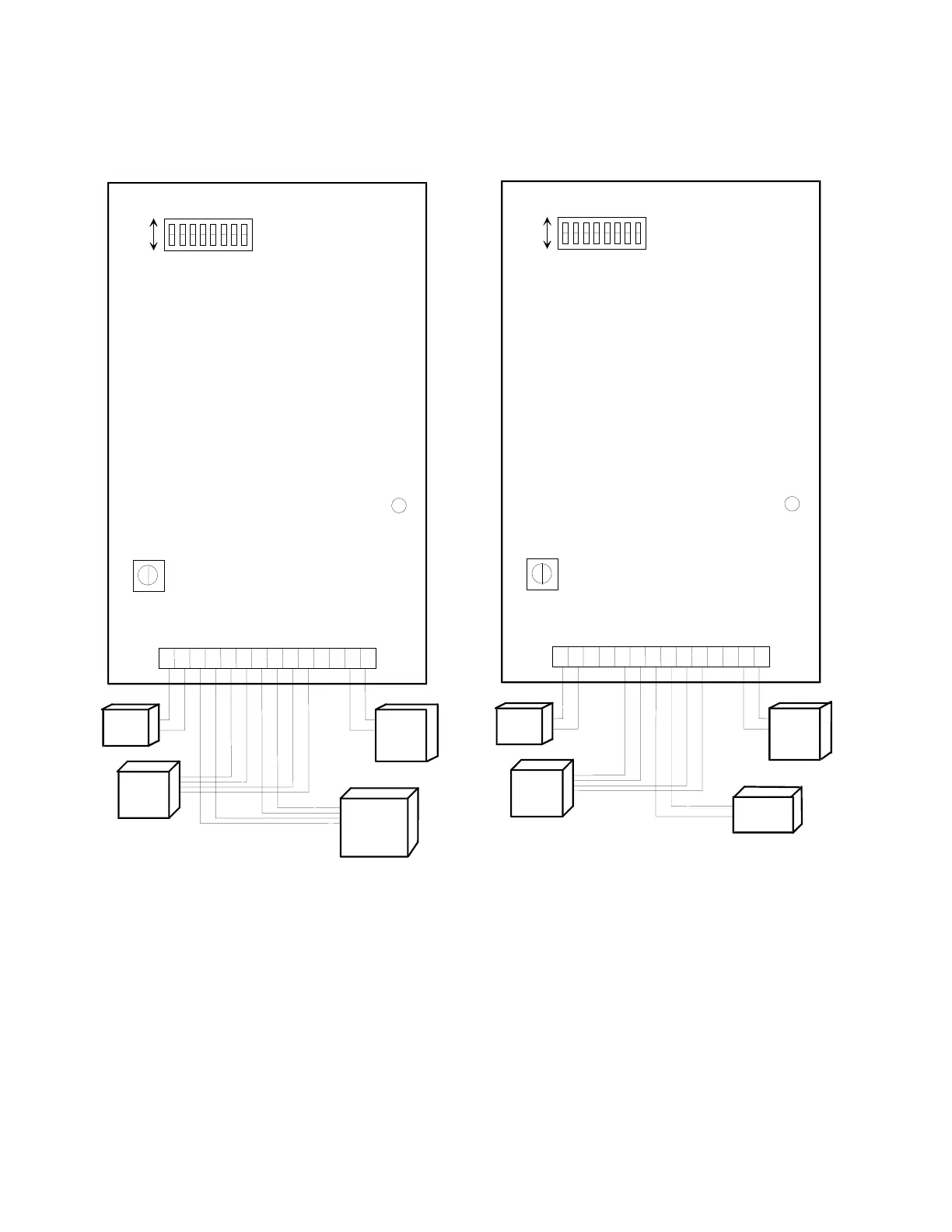

FIGURE 1 - CONNECTIONS TO THE V-9972 PAGE ADAPTER
87654321OFF
ON
R2
Music
Level
Power
On LED
-48 Vdc
Power
Supply
(Refer to chart for dipswitch options)
Tuner,
CD,etc.
SW1
1234567891011121314
CONNECTIONS
1 - Music
2 - Music
3 - Enable
4 - COM
5 - T1
6 - R1
7 - T3
8 - R3
9 - E
10 - M
11 - No Connection
12 - No Connection
13 - GND
14 - (-)48 VDC
V-2000
Series
Page
Control
5ESS
E & M
Port
87654321OFF
ON
R2
Music
Level
Power
On LED
-48 Vdc
Power
Supply
(Refer to chart for dipswitch options)
Tuner,
CD,etc.
SW1
1234567891011121314
V-
1094A*
5ESS
E & M
Port
* NOTE: For single zone paging (no BGM), connect a
V-1094A to pins 7 and 8.
MULTI-ZONE PAGING SINGLE ZONE PAGING
