The breach simply
slots into place as
shown in the picture
below, and marked
with the green arrow.

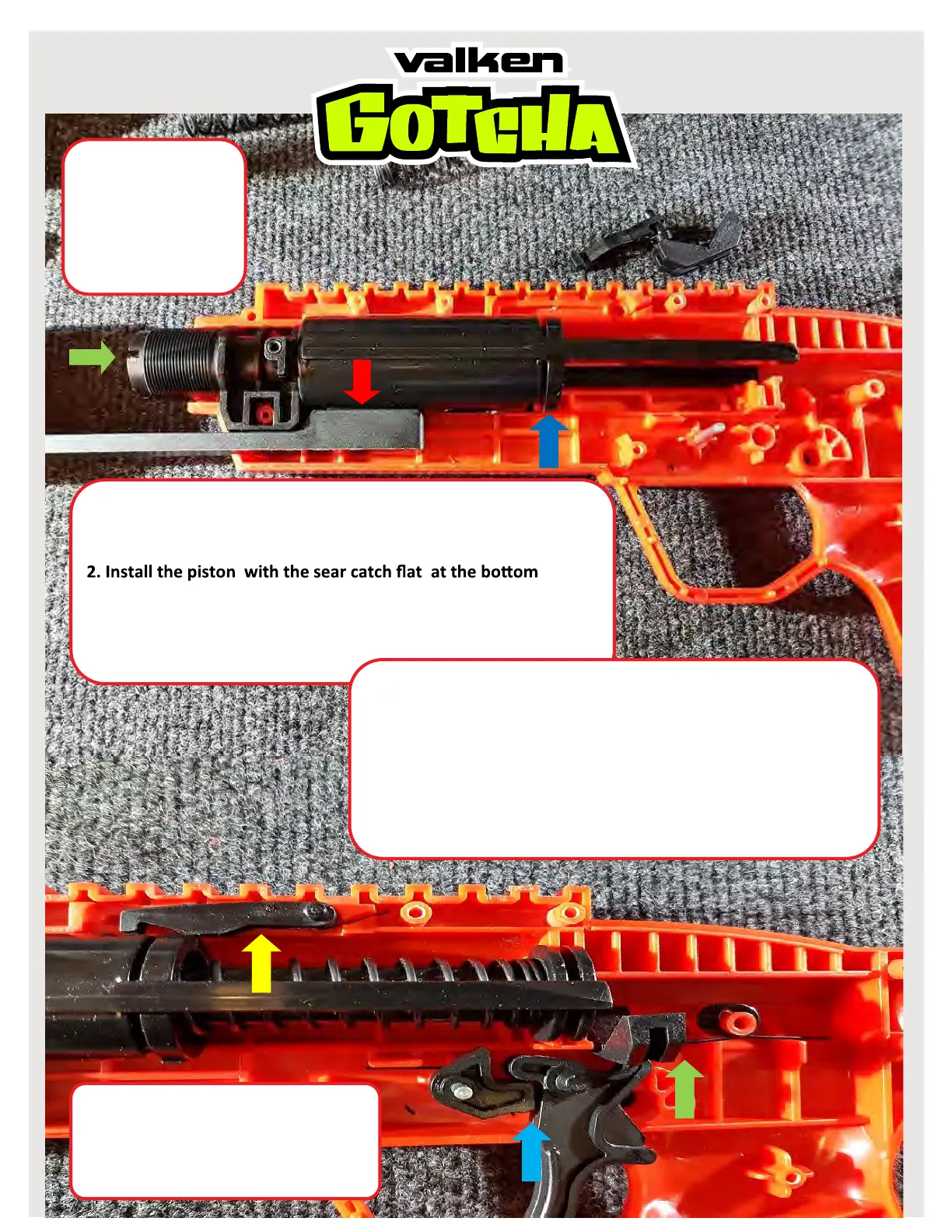

1. Push the cocking rod onto the piston housing marked with the
red arrow.
marked with the blue arrow.
3. Slide the assembled unit into the breech. It should lay flat in
the body as shown in the picture.
Once you are at this stage you can carefully put the top
cover back on and screw the 10 screws that hold the 2
sides together.
The next page shows how various springs fit onto the
parts.
1. Insert the spring and spring guide as shown in the picture below.
2. Install the trigger and sear as shown in picture marked by the blue arrow.
3. Install the an-double cock lever shown by the yellow arrow.
4. Install the trigger stop shown by the green arrow.
All the above items have springs these will be shown next page in detail.
