Valley-Dynamo All Star Baseball - Page 9

Mar2018 Revision - 9 -

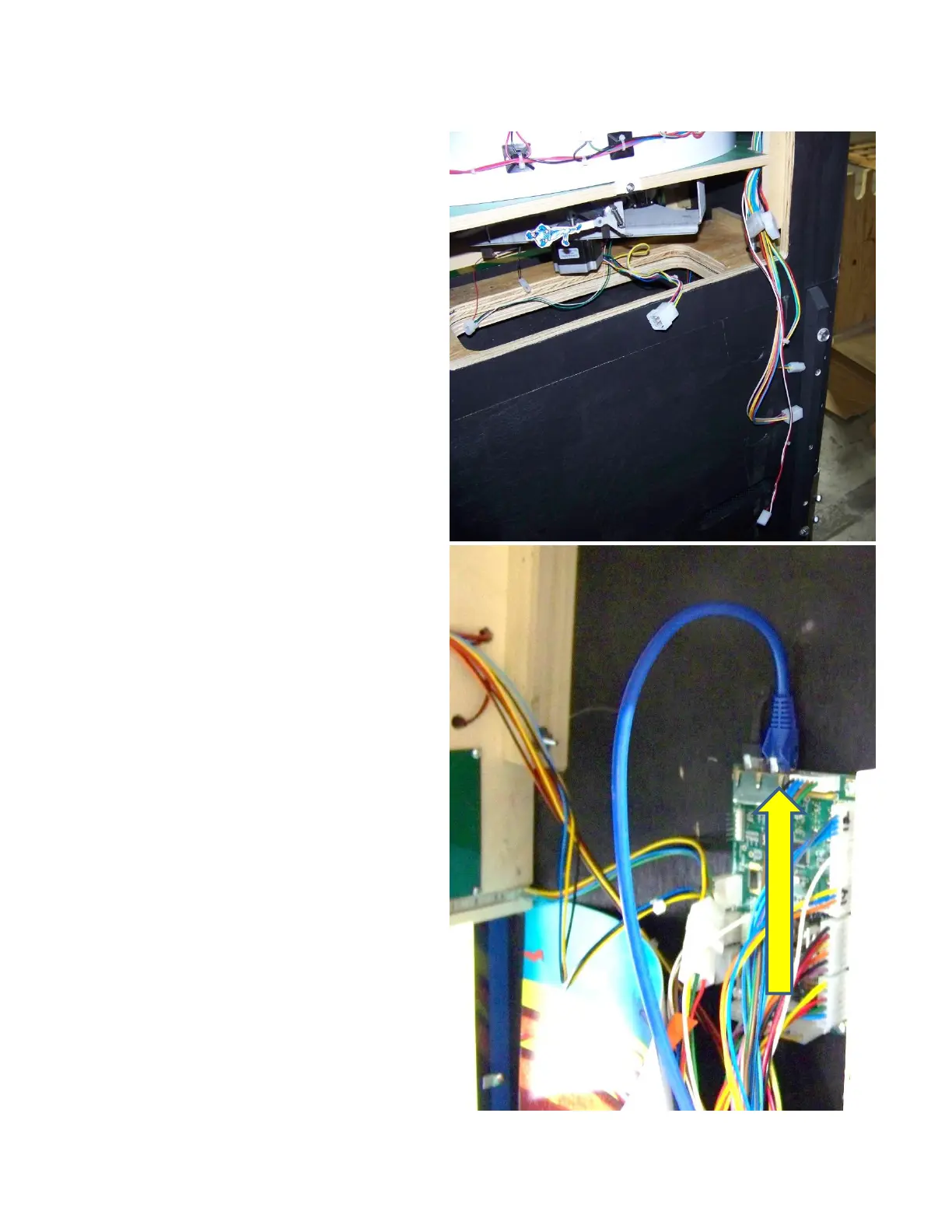

11) Connect the cables
from the Back Box to the
Lower Cabinet using the
color-coordinated markings
on each connection. Route
the cables so they do not
interfere with the base-
runner mechanism.
12) The CAT5 network
cable from the lower cabinet
should be connected to the
I/O Board as shown.
