ICON LINK Wiring
ICON LINK Serial Cable Connection

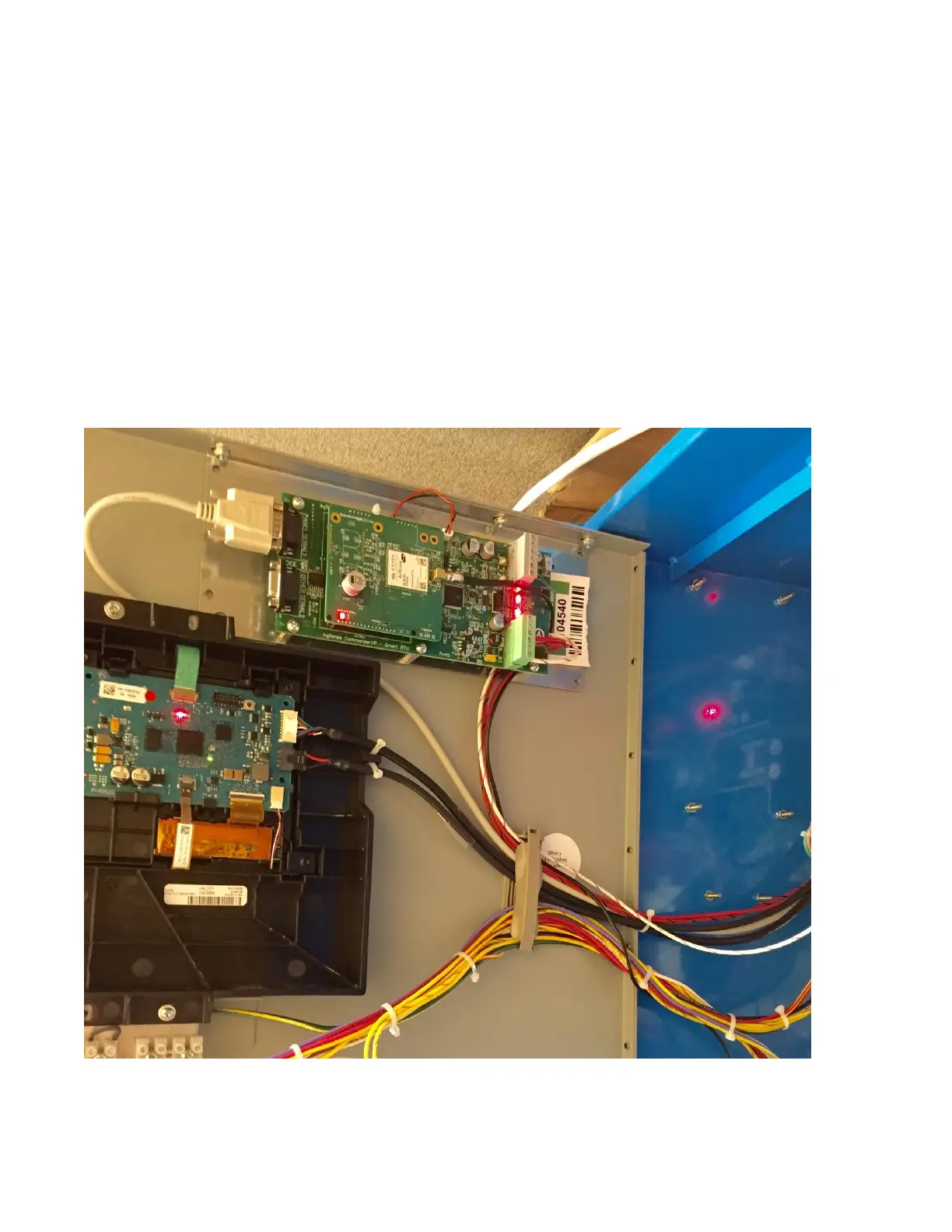

Connect the included Serial Cable to the ICON LINK “Panel Serial 1” port as
shown in the photo below.
