12
9.5 Install the 7 loose coals as follows. The smooth
surfaces of the coals should be at the bottom and
back.
9.5.1 Select the two largest coals Place them in the central
two valleys of the front coal (See figure 21).
9.5.2 Place two of the remaining coals in the two outer
valleys of the front coal (One each side of the large
coals) (See figure 22). Place the left side coal so that
the customer will be able to see the pilot flame below
the coal.

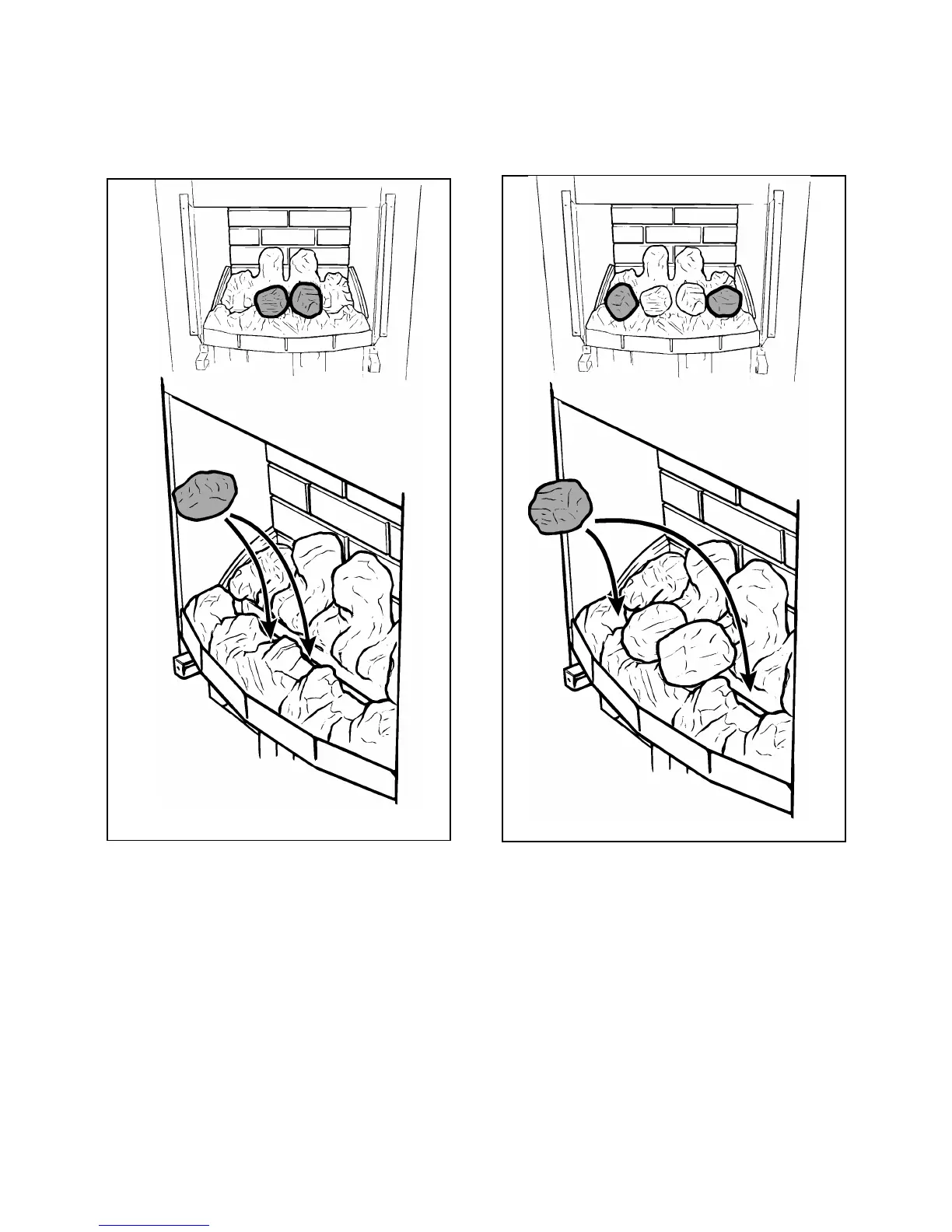

Fig. 21 Front row inner coals
Fig. 22 Front row outer coals
