 Current working range: 0-20A resolution 0.1A
 Temperature measurement range: 0℃-50℃ resolution 1℃
 Humidity measurement range: 20%-90%RH resolution 1%RH
3) PDU Packaging
The standard PDU package contains a Power Distribution Unit with supporting hardware. The components
of the package are:
 Power Distribution Unit
 Power Cable, 3P.German Type (CEE 7/7) to C19
 Rack Mount Brackets
 User Manual / Quick Installation Guide

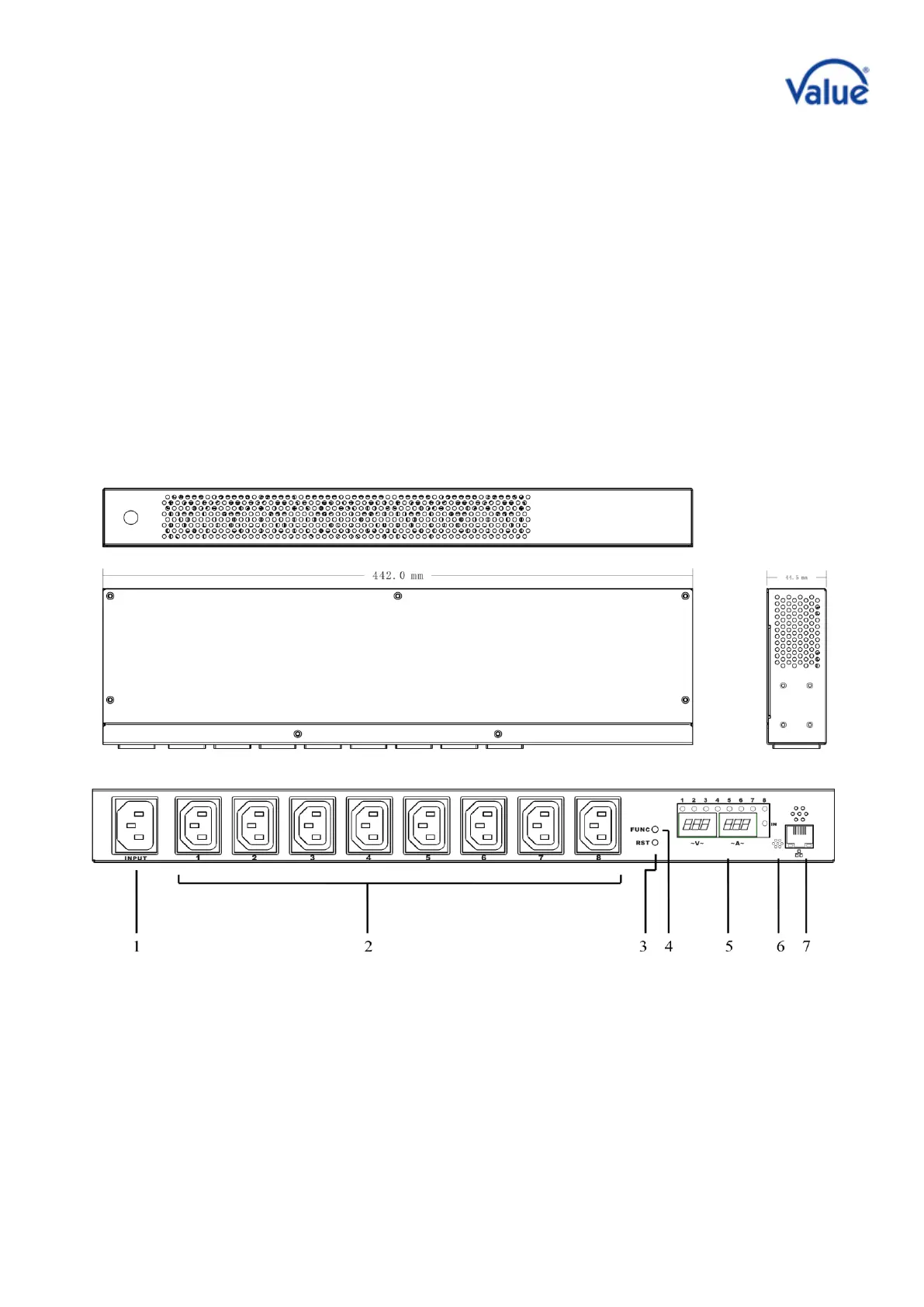

4) Product Diagram and Connections
1. Power Input Socket IEC320 C20; Fuse
button on the back of the IP PDU
2. Output Socket IEC320 C13
3. RST (Reset) Key
4. Function Key
5. LED Panel: Display voltage, current,
temperature, humidity, etc.; Digits 1-8
with LED indicators above of the LED Panel,
referring to the output sockets and their
status (ON/OFF).
6. Temperature and humidity sensor
7. Network Port, Connect LAN or WAN
